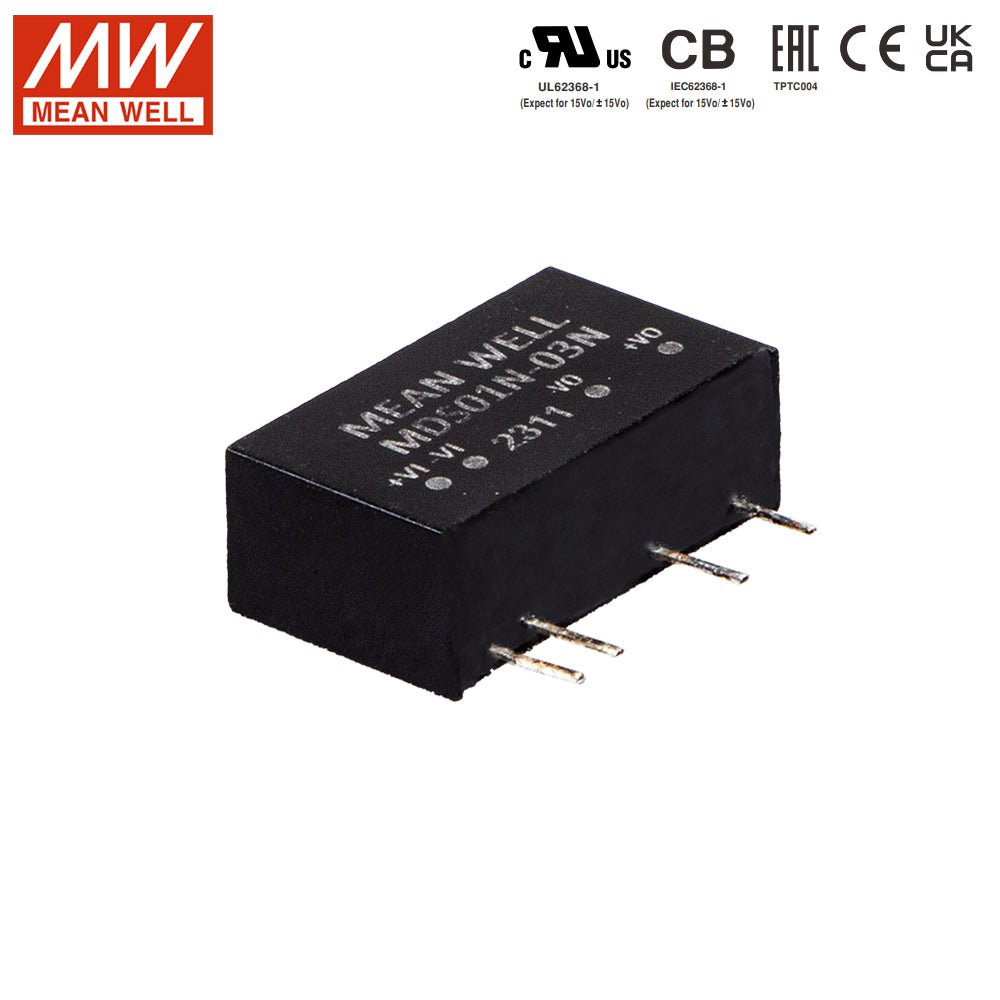

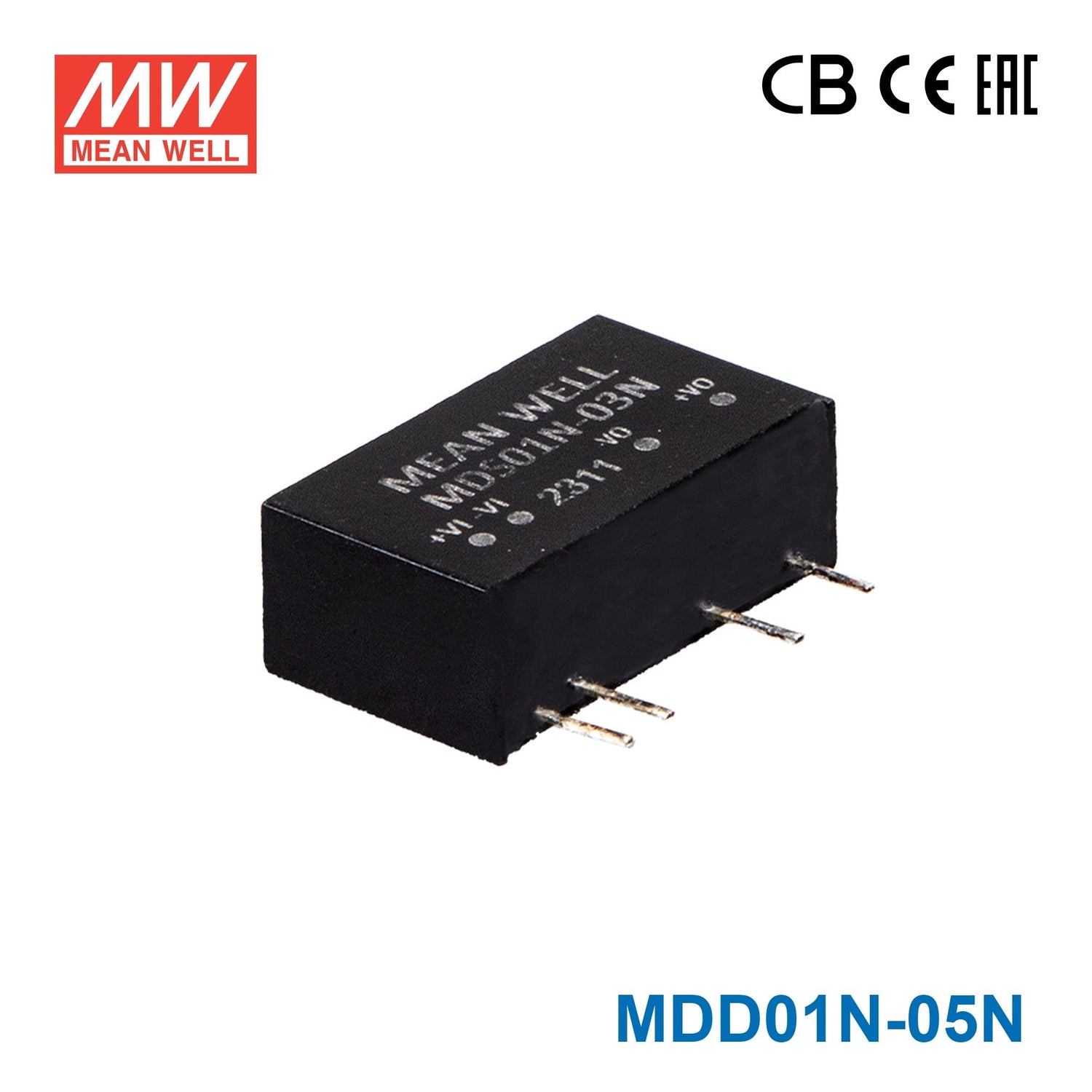

Mean Well MDD01N-05N SIP Package DC-DC Converter- 1W - ±5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDD01N-05N SIP Package DC-DC Converter- 1W - ±5V out
Description
Description
Features:
- SIP7 package with international standard pinout
- Operating temperature range -40 ~ +95°C
- Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- Low patient leakage current <2μA
- Protections: Short circuit (Continuous)
- 6KVDC hight I/O isolation (Reinforced insulation)
- Low cost
- 3 years warranty
General Specification
Input Voltage (Vdc)
5V (4.5 ~ 5.5V) | 12V (10.8 ~ 13.2V) | 24 (21.6 ~ 26.4V)
Output Voltage (Vdc)
1 Vo: 3.3V / 5V / 12V / 15V
2 Vo: ±5V / ±12V / ±15V
Overload Protection
Shut down the output when rated power≥102%, auto recovers
Operating Temperature
-40 ~ + 95°C
Short Circuit Protection
Continuous protection for a long time
Safety Certificate
CB / UL / EAC / CE / UKCA (62368-1 + 60601-1)
Dimension (LxWxH)
19.7 x 7.1 x 11.5 mm
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.00 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of product is the Mean Well MDD01N-05N?
The Mean Well MDD01N-05N is a 1W SIP package DC-DC converter module. This model provides a ±5V output and is designed for compact embedded power applications where reinforced isolation and medical safety approvals matter.
What input voltage range does the MDD01N-05N support?
This model is part of the MDD01N series input options that include 5V, 12V, and 24V variants. The MDD01N-05N specifically corresponds to the 5V input version, with an input range of 4.5 to 5.5VDC.
Is the MDD01N-05N suitable for medical or safety-sensitive equipment?
Yes. The product description states medical safety approval to IEC60601-1 with 1 x MOPP and 2 x MOOP, along with low patient leakage current below 2 microamps. It also complies with IEC/UL62368-1 and provides 6KVDC input-to-output isolation with reinforced insulation.
What operating temperature range can this DC-DC converter handle?
The MDD01N-05N is rated for operation from -40°C to +95°C. That makes it appropriate for industrial and enclosed equipment environments that need stable performance across a wide temperature range.
What protection features are included in the MDD01N-05N?
This model includes continuous short-circuit protection for long-term fault conditions. It also has overload protection that shuts down the output when rated power reaches 102% or more, then recovers automatically.
How compact is the Mean Well MDD01N-05N?
The listed dimensions are 19.7 x 7.1 x 11.5 mm, and the weight is 2.8 g. Its SIP7 package and small footprint make it a compact choice for space-constrained PCB power designs.
