Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

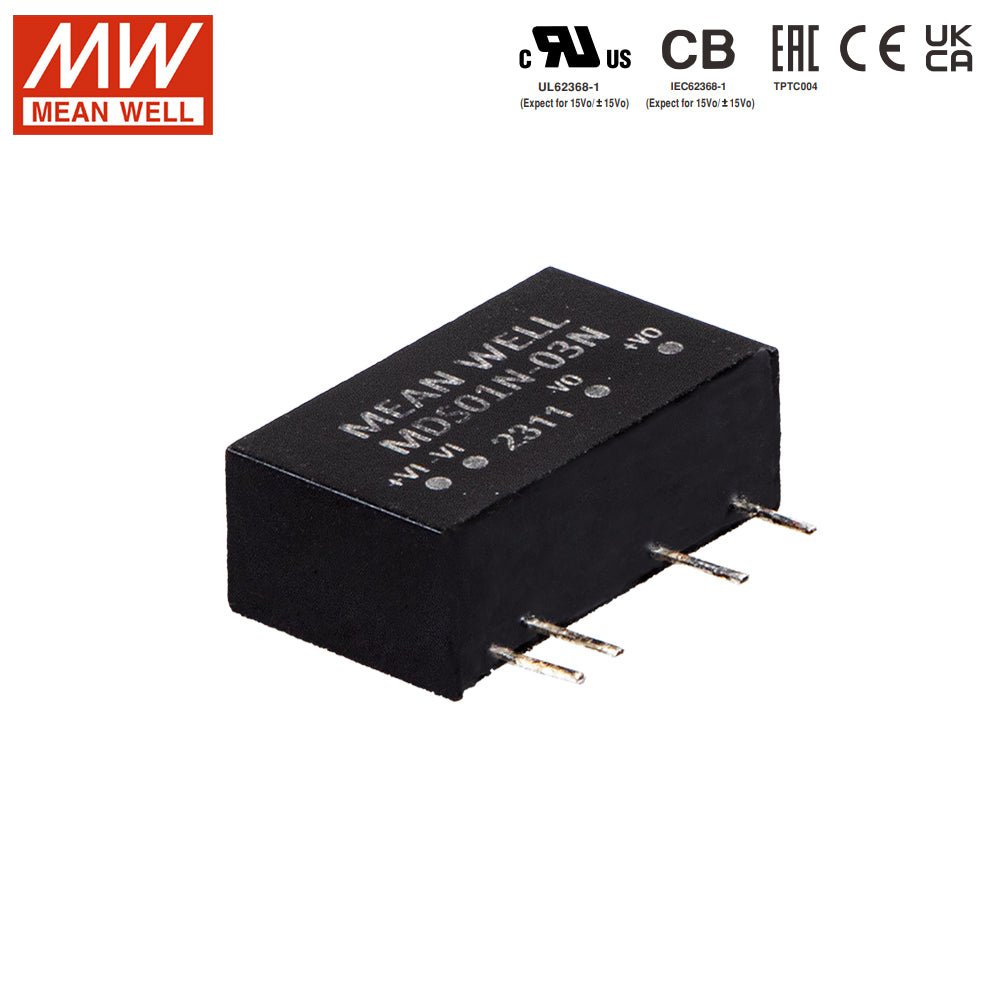

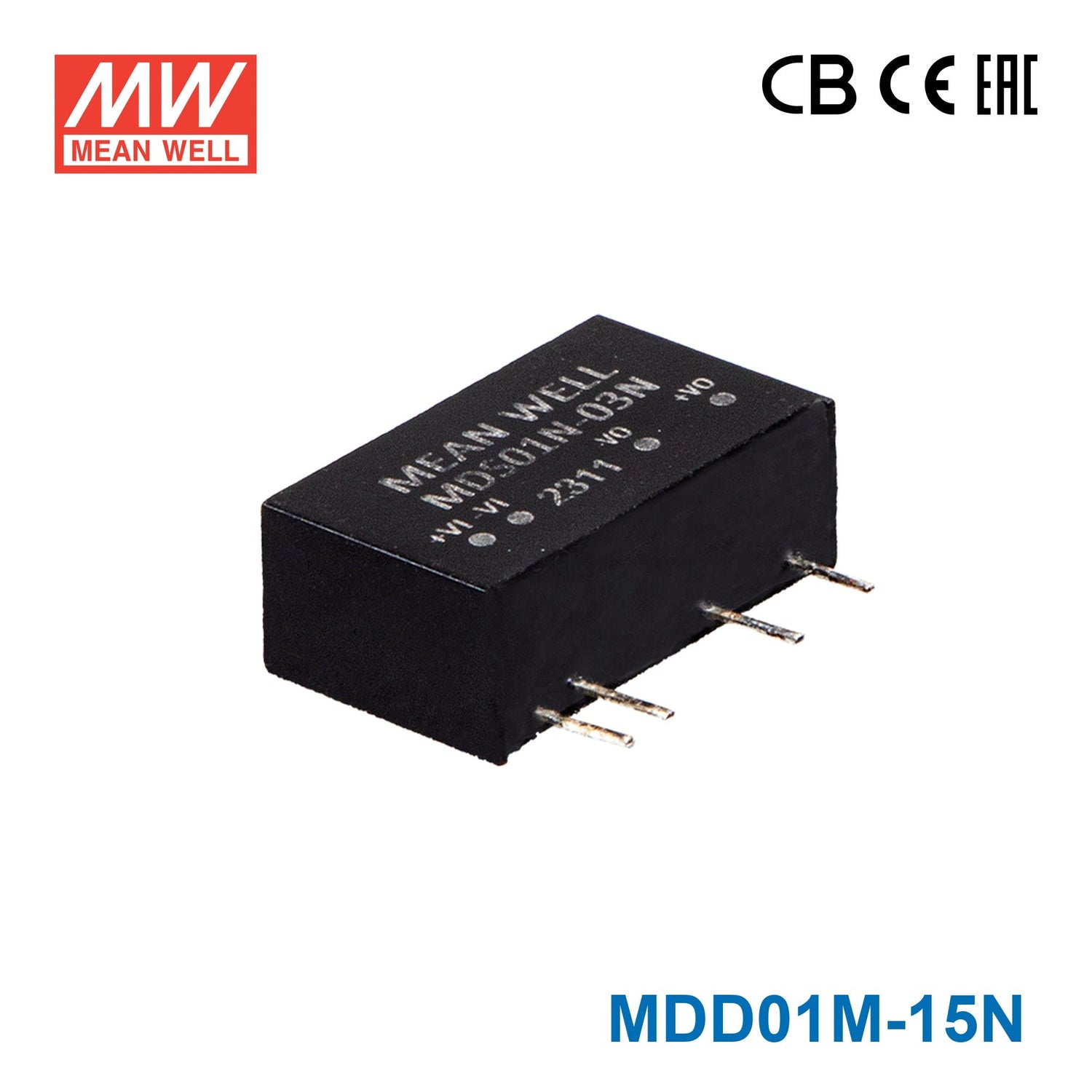

Mean Well MDD01M-15N SIP Package DC-DC Converter- 1W - ±15V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDD01M-15N SIP Package DC-DC Converter- 1W - ±15V Out
Description
Description
Features:
- SIP7 package with international standard pinout
- Operating temperature range -40 ~ +95°C
- Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- Low patient leakage current <2μA
- Protections: Short circuit (Continuous)
- 6KVDC hight I/O isolation (Reinforced insulation)
- Low cost
- 3 years warranty
General Specification
Input Voltage (Vdc)
5V (4.5 ~ 5.5V) | 12V (10.8 ~ 13.2V) | 24 (21.6 ~ 26.4V)
Output Voltage (Vdc)
1 Vo: 3.3V / 5V / 12V / 15V
2 Vo: ±5V / ±12V / ±15V
Overload Protection
Shut down the output when rated power≥102%, auto recovers
Operating Temperature
-40 ~ + 95°C
Short Circuit Protection
Continuous protection for a long time
Safety Certificate
CB / UL / EAC / CE / UKCA (62368-1 + 60601-1)
Dimension (LxWxH)
19.7 x 7.1 x 11.5 mm
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key output and power specs of the Mean Well MDD01M-15N?
The MDD01M-15N is a 1W SIP-package DC-DC converter with a ±15V output. Its rated output current is 18mA, making it suitable for low-power isolated power requirements where a compact dual-output module is needed.
What kinds of applications is the MDD01M-15N typically used for?
This model is best suited to compact embedded and industrial electronics that need isolated low-power DC-DC conversion in a SIP7 footprint. Its reinforced 6KVDC input-to-output isolation and medical safety positioning also make it relevant for space-constrained equipment where isolation performance is important.
Is the Mean Well MDD01M-15N suitable for medical equipment designs?
The product description states that the MDD01M-15N is medically safety approved according to IEC60601-1 with 1xMOPP/2xMOOP. It also specifies low patient leakage current below 2uA, which is a relevant characteristic for medical-related applications.
How does the MDD01M-15N perform in harsh temperature conditions?
This converter is rated for operation from -40C to +95C. That wide operating range makes it a practical option for equipment exposed to demanding ambient conditions beyond normal room temperature environments.
What protection and isolation features does the MDD01M-15N include?
The MDD01M-15N includes continuous short-circuit protection and overload behavior that shuts down the output when rated power reaches 102% or more, then auto-recovers. It also features 6KVDC input-to-output isolation with reinforced insulation for higher isolation performance in compact designs.
How compact is the MDD01M-15N compared with larger board-level power converters?
The MDD01M-15N uses a SIP7 package and measures 19.7 x 7.1 x 11.5 mm, with a weight of 2.8 g. Compared with larger enclosed or chassis-style converters, it is intended for designs where board space and low weight matter.
