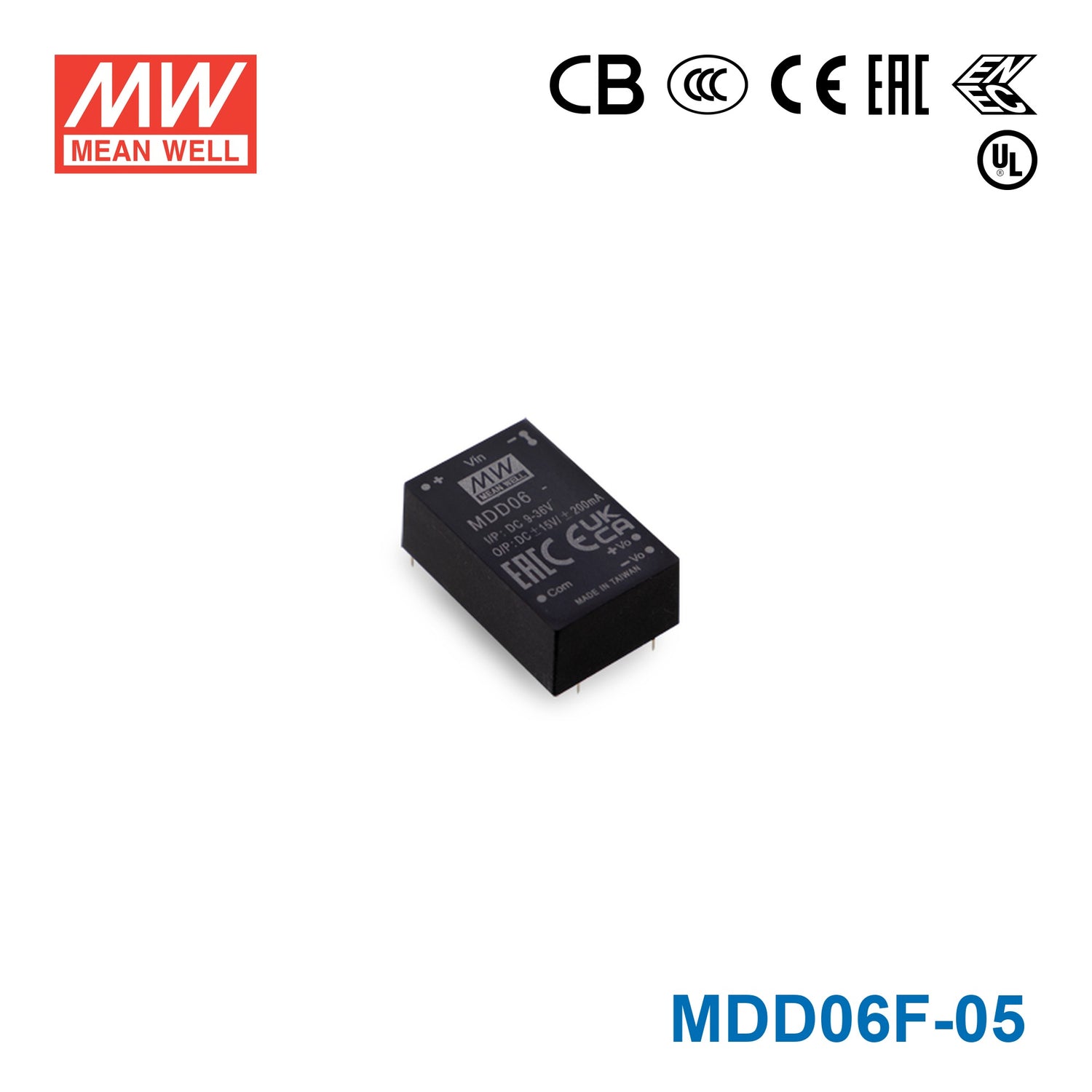

Mean Well MDD06F-05 Medical Grade DC/DC Converter 6W - 9-36V input,...
Description
Description
The MDD06F is a 6W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~36V
-
No of Output2
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDD06F-05 for 5V industrial controllers, PLC interface boards, or embedded computing modules?
This model is better suited to those low-power 5V applications than a 3W unit because it provides 6W total output and 5V at 0.6A. That makes it a fit for compact control or embedded sections that need more 5V current while staying within the stated limit.
Is the MDD06F-05 suitable for medical or laboratory devices that need a 5V DC/DC stage?
Yes, it is positioned as a medical-grade DC/DC converter and includes CB, CCC, CE, EAC, ENEC, and UL certifications. Electrically, it supports low-power 5V sections up to 0.6A from a 6W converter.
Can this converter power 5V data acquisition, automation, or communication electronics from a 9-36V source?
It is intended for exactly that kind of low-power 5V conversion when the source stays within the listed 9-36V input range. The output capacity is 5V at 0.6A, so it works for moderate 5V electronics rather than higher-current devices.
How does the MDD06F-05 compare with the 12V and 15V versions in the same series?
The MDD06F-05 provides 5V at 0.6A, the MDD06F-12 provides 12V at 0.25A, and the MDD06F-15 provides 15V at 0.2A. All are 6W models with the same 9-36V input range, 31.8 × 20.3 × 12.2 mm dimensions, 0.017 kg weight, and -40°C to +90°C operating temperature range.
Is the MDD06F-05 rated for outdoor use or high/low temperature environments?
The converter is specified for operation from -40°C to +90°C, which supports a wide temperature span inside suitable equipment. No IP rating is listed in the provided specs, so outdoor or exposed-environment use cannot be confirmed from the product data shown here.
Other MDD06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MDD06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15 and -15V output | 6W | 15V | 0.2A | Indoor | $16.58 | View |
| Mean Well MDD06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12 and -12V output | 6W | 12V | 0.25A | Indoor | $16.58 | View |
| Mean Well MDD06G-05 Medical Grade DC/DC Converter 6W - 18-75V input, 5 and -5V output | 6W | 5V | 0.6A | Indoor | $16.58 | View |
| Mean Well MDD06F-15 Medical Grade DC/DC Converter 6W - 9-36V input, 15 and -15V output | 6W | 15V | 0.2A | Indoor | $16.58 | View |
| Mean Well MDD06F-12 Medical Grade DC/DC Converter 6W - 9-36V input, 12 and -12V output | 6W | 12V | 0.25A | Indoor | $16.58 | View |
