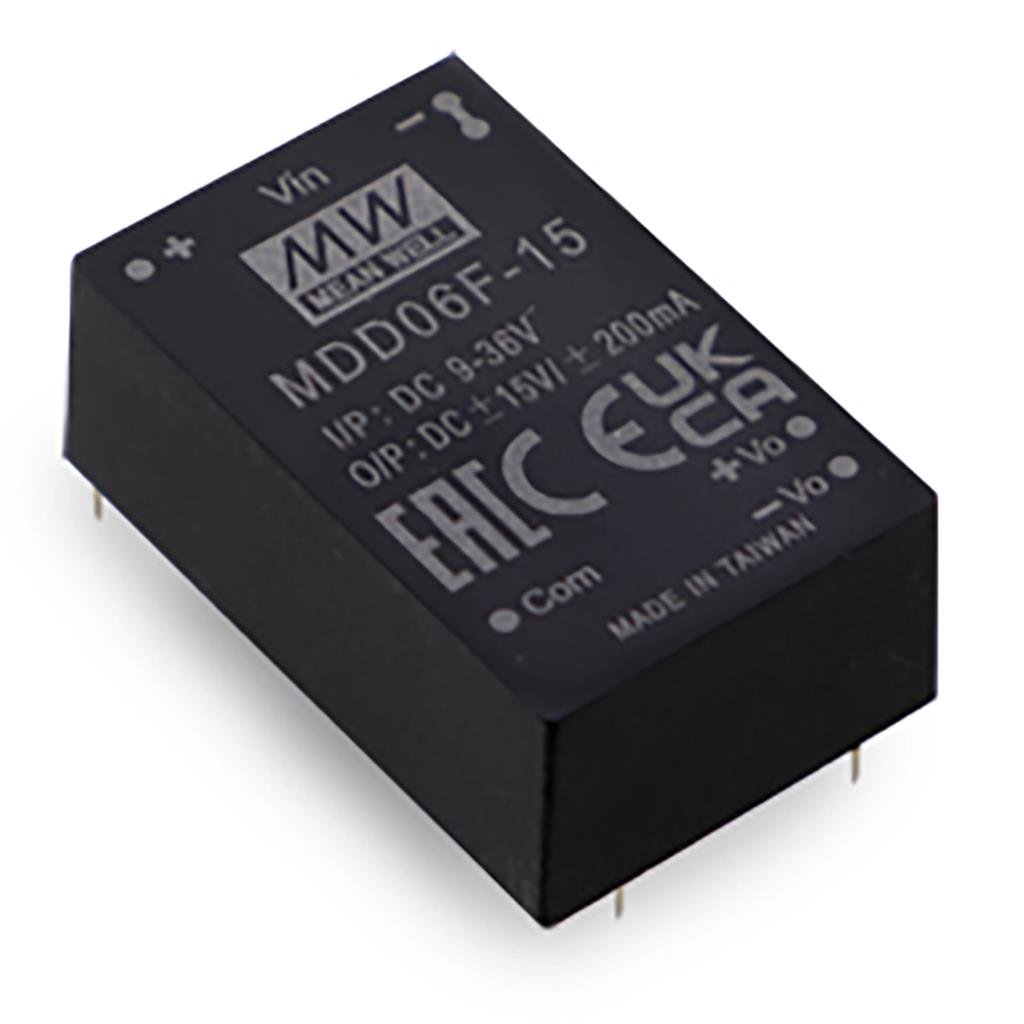

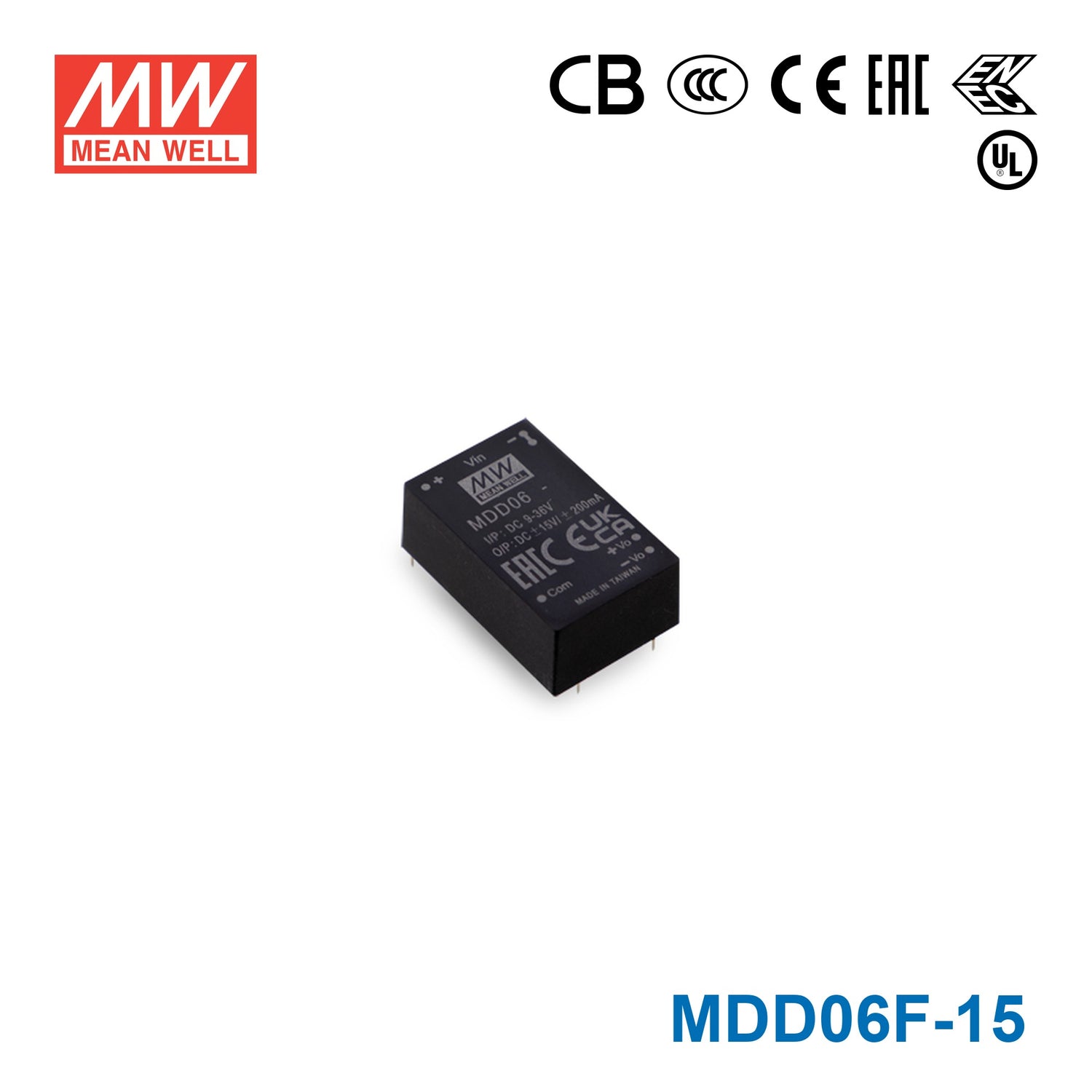

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well MDD06F-15 Medical Grade DC/DC Converter 6W - 9-36V input,...
Description
Description
The MDD06F is a 6W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage9V~36V
-
No of Output2
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDD06F-15 for a low-power analog signal conditioning board that needs ±15V rails?
Yes, this model is designed for constant-voltage output at 15V and -15V with 6W total power. It is a fit for low-power analog, instrumentation, or interface circuits that need dual 15V rails within the stated 0.2A output current.
Is the MDD06F-15 suitable for medical or lab electronics with a wide low-voltage input range?
It can fit medical or lab equipment that needs a medical grade DC/DC converter and operates from a 9-36VAC input range. The unit provides dual 15V output in a compact 31.8 × 20.3 × 12.2 mm package.
Can this converter power an industrial control or measurement module that requires isolated ±15V power?
It is appropriate for compact industrial control or measurement modules that need constant-voltage 15V and -15V output and stay within 6W. The small size and 0.017 kg weight also make it practical where board space is limited.
Would the MDD06F-15 work for embedded systems that use ±15V analog sections but have a 9-36VAC source?
Yes, if the embedded design needs dual 15V rails and the source is within the stated 9-36VAC input range. This model is intended for low-power sections, with 6W total output and 0.2A output current.
How does the MDD06F-15 compare with the other MDD06F models?
All three MDD06F versions are 6W medical grade DC/DC converters, but they differ in output. The MDD06F-05 provides 5V at 0.6A, the MDD06F-12 provides 12V at 0.25A, and the MDD06F-15 provides 15V at 0.2A.
Is the MDD06F-15 intended for outdoor or harsh-temperature environments?
The operating temperature range is -40°C to +90°C, so it supports demanding temperature conditions. No IP rating is listed in the provided specs, so the product data does not identify it as an outdoor-rated enclosure.
Other MDD06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MDD06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15 and -15V output | 6W | 15V | 0.2A | Indoor | $16.58 | View |
| Mean Well MDD06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12 and -12V output | 6W | 12V | 0.25A | Indoor | $16.58 | View |
| Mean Well MDD06G-05 Medical Grade DC/DC Converter 6W - 18-75V input, 5 and -5V output | 6W | 5V | 0.6A | Indoor | $16.58 | View |
| Mean Well MDD06F-12 Medical Grade DC/DC Converter 6W - 9-36V input, 12 and -12V output | 6W | 12V | 0.25A | Indoor | $16.58 | View |
| Mean Well MDD06F-05 Medical Grade DC/DC Converter 6W - 9-36V input,5 and -5V output | 6W | 5V | 0.6A | Indoor | $16.58 | View |
