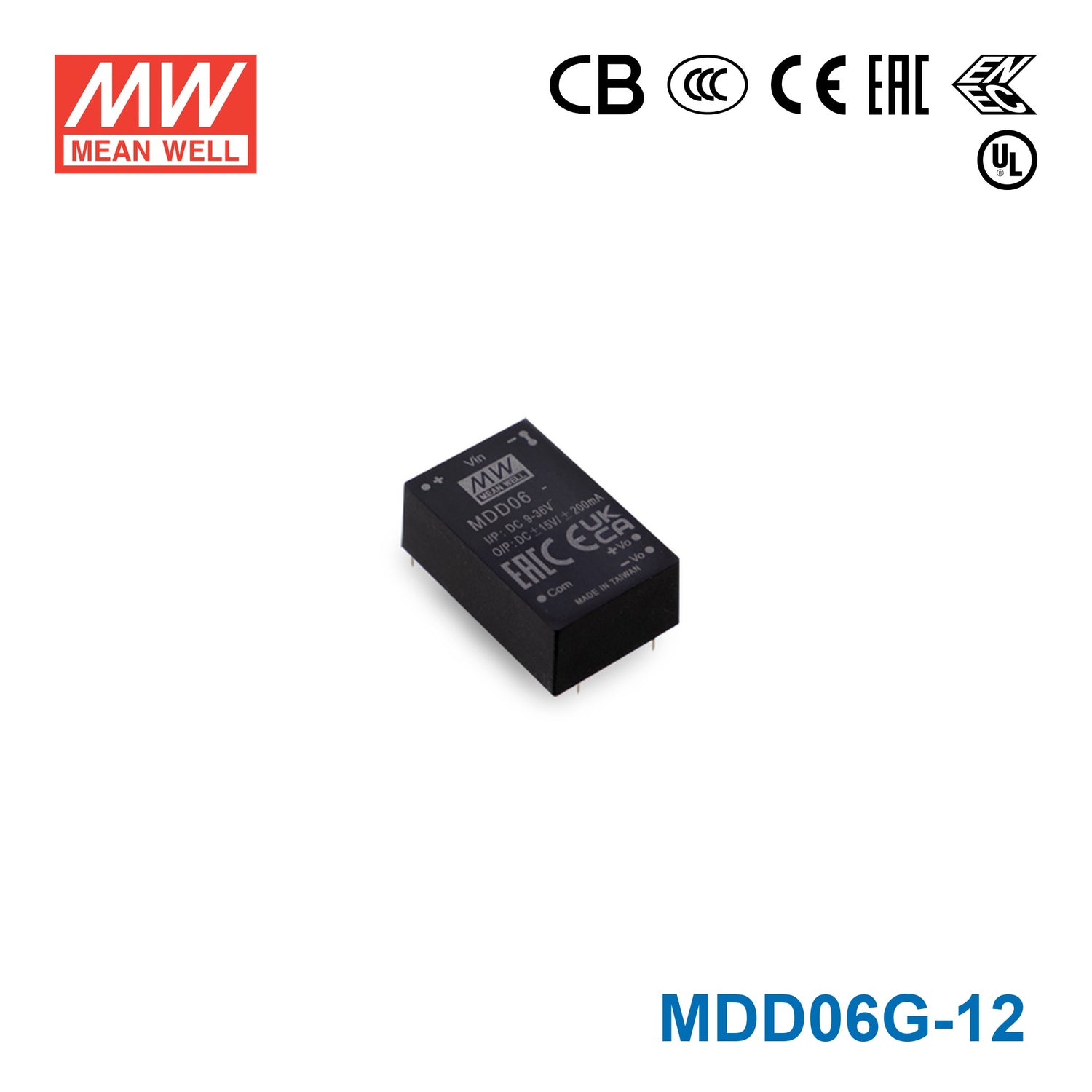

Mean Well MDD06G-12 Medical Grade DC/DC Converter 6W - 18-75V input...
Description
Description
The MDD06G is a 6W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage18V~75V
-
No of Output2
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDD06G-12 for a 12V industrial I/O or relay interface board?
Yes, it is a fit for low-power industrial or automation circuits that need 12V and -12V constant-voltage output. The converter provides 6W total power with 0.25A output current from an 18-75VAC input range.
Is the MDD06G-12 suitable for embedded analog or instrumentation electronics that require ±12V rails?
It is appropriate for embedded analog and instrumentation sections that need dual 12V rails and stay within the 6W power limit. The 0.25A output current makes it better suited to low-power boards than heavier 12V loads.
Would this converter work in medical or lab equipment that runs from a higher-voltage DC source?
Yes, this medical grade model is intended for equipment operating from the stated 18-75VAC input range and needing 12V and -12V output. Its compact 31.8 × 20.3 × 12.2 mm size also helps in space-constrained assemblies.
Can the MDD06G-12 be used in compact automation modules where weight matters?
It can, since the unit weighs 0.017 kg and has a small footprint of 31.8 × 20.3 × 12.2 mm. Those specs make it practical for compact embedded and automation electronics that require ±12V power.
How does the MDD06G-12 compare with the MDD06G-05 and MDD06G-15?
All three are 6W medical grade DC/DC converters with the same 18-75VAC input range. The difference is output: the MDD06G-05 is 5V at 0.6A, the MDD06G-12 is 12V at 0.25A, and the MDD06G-15 is 15V at 0.2A.
Is the MDD06G-12 designed for indoor or outdoor use?
The datasheet details an operating temperature range of -40°C to +90°C, which supports use in demanding temperature environments. No IP rating is listed in the provided specs, so the product data does not define it as outdoor rated.
Other MDD06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MDD06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15 and -15V output | 6W | 15V | 0.2A | Indoor | $16.58 | View |
| Mean Well MDD06G-05 Medical Grade DC/DC Converter 6W - 18-75V input, 5 and -5V output | 6W | 5V | 0.6A | Indoor | $16.58 | View |
| Mean Well MDD06F-15 Medical Grade DC/DC Converter 6W - 9-36V input, 15 and -15V output | 6W | 15V | 0.2A | Indoor | $16.58 | View |
| Mean Well MDD06F-12 Medical Grade DC/DC Converter 6W - 9-36V input, 12 and -12V output | 6W | 12V | 0.25A | Indoor | $16.58 | View |
| Mean Well MDD06F-05 Medical Grade DC/DC Converter 6W - 9-36V input,5 and -5V output | 6W | 5V | 0.6A | Indoor | $16.58 | View |
