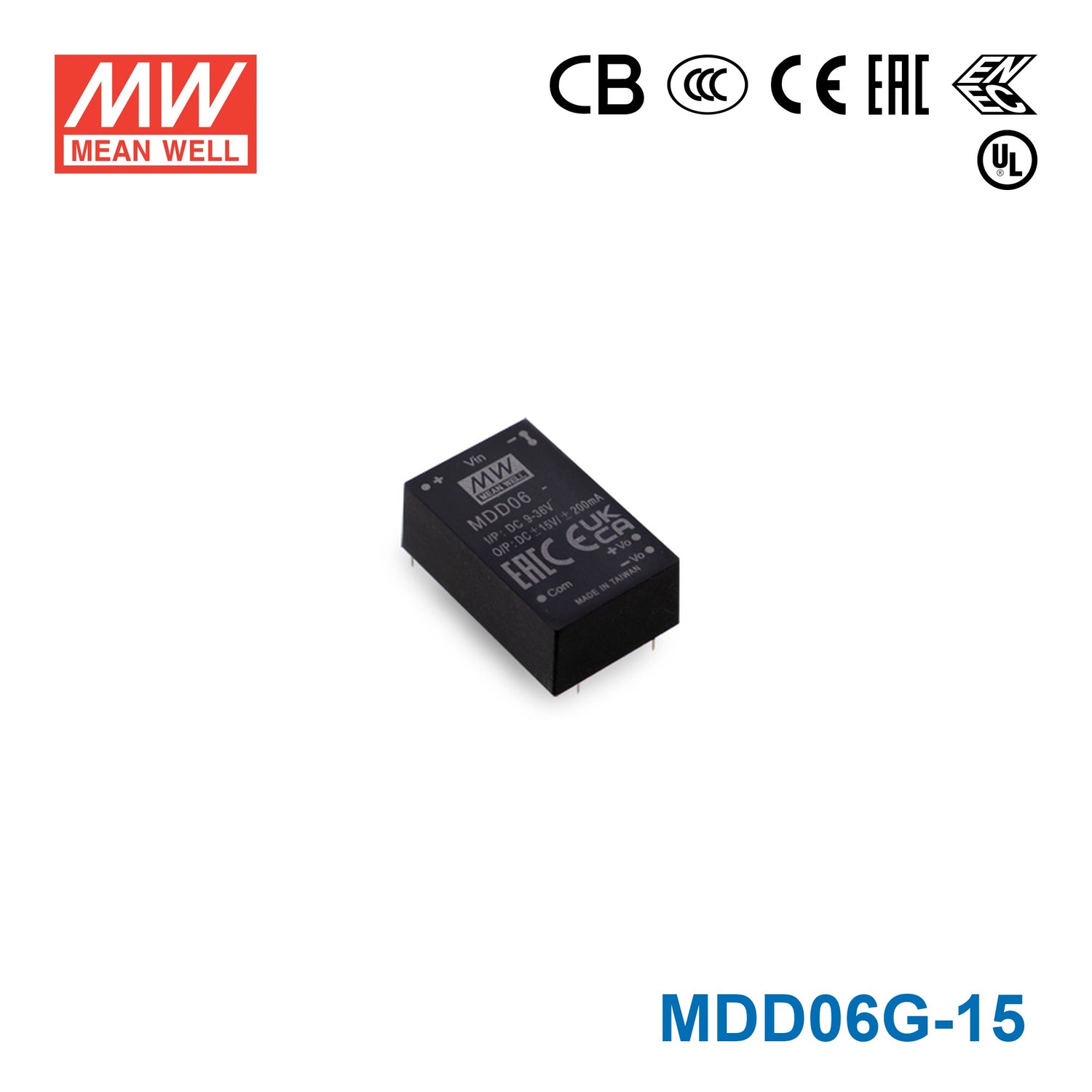

Mean Well MDD06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15 and -15V output 400mA

Name: Mean Well MDD06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15 and -15V output 400mA
Brand: Mean Well
SKU: MDD06G-15
Price: 16.58 USD
Availability: InStock

SKU MDD06G-15

$16.58 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

MDD06G-15 is the ±15V output model of this series: rated power 6W, typical efficiency 82%.

MDS06 and MDD06 series are 6W isolated and regulated module type medical grade DC-DC converter with DIP 24 package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 6KVDC or 4.2KVAC I/P-O/P high isolation voltage, compliance with IEC60601-1 medical standard, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual output. Which are suitable for medical systems, ultra low leakage current.

Features

DIP 24 package with international standard pinout
4:1 wide input range
Low patient leakage current <5μA
Wide operating temperature range -40 ~ +90℃
Medical safety approved (2xMOPP) according to IEC60601-1
Protections: Short circuit (Continuous) / Overload / UVLO
6KVDC or 4.2KVAC high I/O isolation (Reinforced isolation)
3 years warranty

Specifications

MDD06G-15Specifications from the official datasheet (2025-07-28 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 24V,48V (18 ~ 75V)
INPUT CURRENT NO LOAD: 15mA
INPUT CURRENT FULL LOAD: 310mA
VOLTAGE RANGE: 18 ~ 75Vdc
SURGE VOLTAGE (100ms max.): F models : 50Vdc ; G models : 100Vdc
FILTER: Pi type
PROTECTION (Typ.): Fuse recommended. F models: 2A slow-blow Type, G models: 1A slow-blow Type

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±20 ~ 200mA
EFFICIENCY (TYP.): 82%
CAPACITOR LOAD (MAX.)^{* For each output}: *47μF
VOLTAGE ACCURACY: ±2%
RATED POWER: 6W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 280KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 8.8Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 8Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC or 4.2KVAC
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 20pF
ISOLATION LEVEL: Primary-secondary: 2xMOPP when system input voltage is with 250VAC, 50/60Hz
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55011 N/A
Radiated BS EN/EN55011 Class A without external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 ±15KV air
Radiated Susceptibility BS EN/EN61000-4-3 10V/m
EFT/Bursts BS EN/EN61000-4-4 ±2KV
Surge BS EN/EN61000-4-5 ±2KV Line-Line
Conducted BS EN/EN61000-4-6 10Vrms(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 30A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55011	N/A
Radiated	BS EN/EN55011	Class A without external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	±15KV air
Radiated Susceptibility	BS EN/EN61000-4-3	10V/m
EFT/Bursts	BS EN/EN61000-4-4	±2KV
Surge	BS EN/EN61000-4-5	±2KV Line-Line
Conducted	BS EN/EN61000-4-6	10Vrms(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	30A/m

OTHERS

MTBF: >454Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL: UL94V-0 plastic case
PACKING: 17g ; 15pcs/per tube, 750pcs/50 tube max./carton

Test conditions and notes5

1.All parameters are specified at normal input(F: 12Vdc, G: 24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load for MDD06.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDD06G-15 Mechanical Specification — Mechanical Specification

MDD06G-15 Plug Assignment — Plug Assignment

MDD06G-15 MDS06 & MDD06 series — MDS06 & MDD06 series

MDD06G-15 MDS06 & MDD06 series (2) — MDS06 & MDD06 series (2)

Typical applications

Downloads

Datasheet1

MDD06G-15 datasheetMDS06,MDD06-SPEC.PDF · 2025-07-28 edition PDF Download

Certificates2

Mean Well MDS(D)03-MDS(D)06-CE-dec Certificate PDF Download

Mean Well MDD-MDS03-06-UK-dec Certificate PDF Download

Test reports1

Mean Well MDD06G-15 Test Report PDF Download

FAQ

Can I use the MDD06G-15 for a compact analog control board that needs ±15V power?

Yes, this converter is suited to low-power analog and control electronics that require 15V and -15V constant-voltage output. It provides 6W total power and up to 0.2A per output from an 18-75VDC input range.

Is the MDD06G-15 suitable for instrumentation or signal interface modules in industrial equipment?

It can be a fit for instrumentation and signal interface circuits that need dual 15V rails and stay within 6W. The medical grade design with IEC60601-1 3rd edition and EAC approvals may also matter in regulated equipment builds.

Would this model work for embedded systems with a higher-voltage input bus and low-power ±15V sections?

Yes, if the system input is within the stated 18-75VDC range and each ±15V output stays within 0.2A. This makes it suitable for low-power embedded analog stages rather than larger 15V loads.

Can the MDD06G-15 be used in small medical or lab assemblies where board space is tight?

It is well suited to compact assemblies because it measures 31.8 × 20.3 × 12.2 mm and weighs 0.017 kg. Those dimensions help when adding dual 15V power to dense medical or lab electronics.

What should I compare between the MDD06G-15 and the other MDD06G outputs?

The key difference across the MDD06G series is output. The MDD06G-05 is ±5V at up to 0.6A, the MDD06G-12 is ±12V at up to 0.25A, and the MDD06G-15 is ±15V at up to 0.2A per output, while all remain 6W models with 18-75VDC input.

Is the MDD06G-15 appropriate for outdoor or wide-temperature installations?

The specified operating temperature range is -40°C to +90°C, with output derating at higher ambient temperatures per the derating curve. No IP rating is provided in the listed specs, so the product information does not identify it as outdoor rated.
