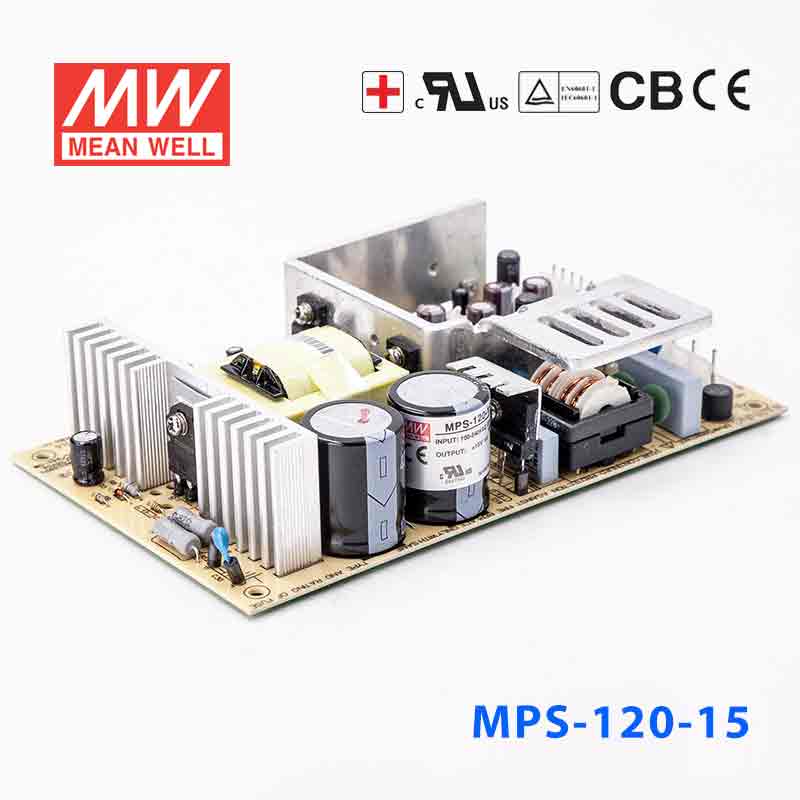

Mean Well MPS-120-15 Power Supply 120W 15V he rated current is base...
MEAN WELL MPS-120 Series Power Supplies are 120W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC/Full range
- ✓Low leakage current<180uA
- ✓Protections:Shortzircuit/Overload/Over voltage
- ✓UL60601-1 medical safety approved
- ✓With power good and fail signal outputOptional)
- ✓100% full load burn in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating120 Watt
-
Output Voltage15 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.25 in
-
Height1.4 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
Can I use the MPS-120-15 for 15V industrial control or test equipment?
Yes, it is built for constant-voltage 15V applications and is rated for 8A with 120W total power. That makes it a fit for industrial control, bench, or test equipment that specifically requires 15V DC and stays within 8A. It is not interchangeable with 12V or 24V loads that need a different nominal output.
Is the MPS-120-15 suitable for embedded systems or instrumentation that need 15V DC?
It can work for embedded or instrumentation loads designed around a 15V constant-voltage input. The available output is 8A, with 120W total capacity, so it suits moderate-power 15V electronics rather than higher-current 200W-class systems. The 90-264VAC input is also useful when equipment may be deployed across different mains ranges.
Can the MPS-120-15 be used for 15V automation accessories inside a machine enclosure?
It can be used where the machine or control assembly needs a regulated 15V source and the total load remains within 8A and 120W. That makes it suitable for 15V automation accessories, sensors, or support electronics that are specified for constant-voltage operation. Buyers should size it to the actual 15V load, not just to the series name.
What are the main spec differences between the MPS-120-15 and related MPS models?
The listed MPS-120-15 is 120W at 15V and 8A. Nearby options include MPS-120-12 at 120W and 10A, MPS-120-24 at 120W and 5A, MPS-120-48 at 120W and 2.5A, MPS-120-5 at 110W and 22A, and MPS-120-3.3 at 79.2W and 24A. The 200W family also includes MPS-200-15 at 200W and 13.4A for higher-current 15V demand.
Can the MPS-120-15 handle wider ambient conditions, and is it okay outdoors?
Its rated operating temperature range is -20°C to +70°C, so it supports a broad temperature band in controlled equipment conditions. The provided specs do not include an IP rating, which means outdoor exposure should not be assumed. It is better suited to protected indoor installations or enclosed systems.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-120 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-120-5 Power Supply 110W 5V he rated current is based on there being a fan that can provide 25CFM. | 110W | 5V | 22A | Indoor | $95.98 | View |
| Mean Well MPS-120-48 Power Supply 120W 48V he rated current is based on there being a fan that can provide 25CFM. | 120W | 48V | 2.5A | Indoor | $95.98 | View |
| Mean Well MPS-120-3.3 Power Supply 79W 3.3V he rated current is based on there being a fan that can provide 25CFM. | 79.2W | 3.3V | 24A | Indoor | $95.98 | View |
| Mean Well MPS-120-24 Power Supply 120W 24V he rated current is based on there being a fan that can provide 25CFM. | 120W | 24V | 5A | Indoor | $95.98 | View |
| Mean Well MPS-120-12 Power Supply 120W 12V he rated current is based on there being a fan that can provide 25CFM. | 120W | 12V | 10A | Indoor | $95.98 | View |
