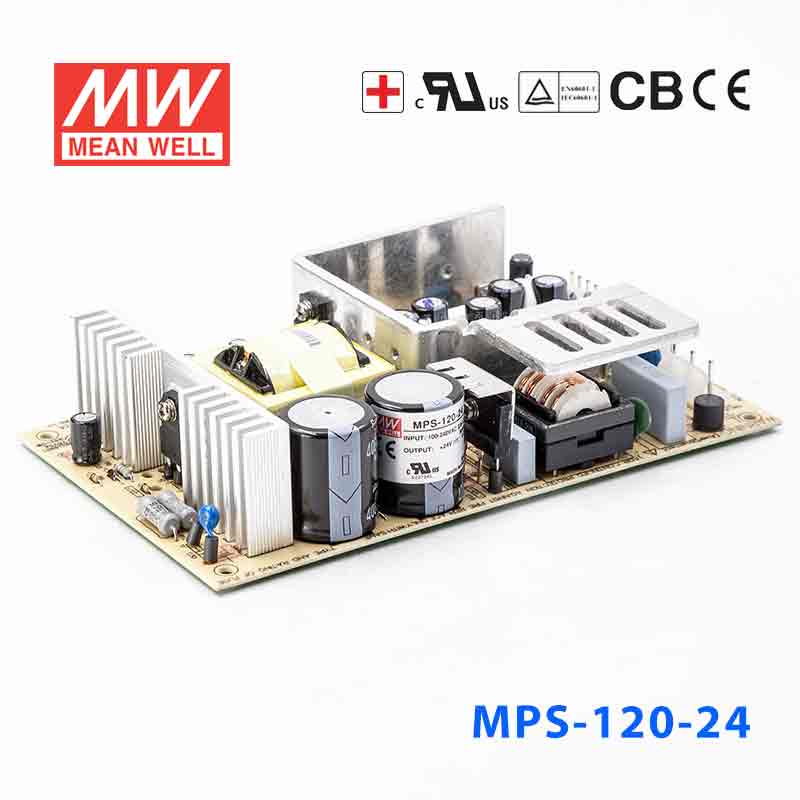

Mean Well MPS-120-24 Power Supply 120W 24V he rated current is base...
MEAN WELL MPS-120 Series Power Supplies are 120W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC/Full range
- ✓Low leakage current<180uA
- ✓Protections:Shortzircuit/Overload/Over voltage
- ✓UL60601-1 medical safety approved
- ✓With power good and fail signal outputOptional)
- ✓100% full load burn in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.25 in
-
Height1.4 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
Can I use the MPS-120-24 for 24V PLC, sensor, or automation loads?
Yes, it is a constant-voltage 24V model rated for 5A and 120W, which matches many common 24V automation loads. That makes it relevant for PLC-related accessories, sensors, and control hardware that need 24V DC and stay within 5A. The input range of 90-264VAC also supports use across varied AC supply conditions.
Is the MPS-120-24 suitable for 24V industrial networking or communications equipment?
It can fit 24V communications or networking hardware when the equipment is designed for constant-voltage 24V input and the load stays within 5A. With 120W total power, it is better suited to moderate-power 24V systems than larger 200W-class loads. Voltage match is the key requirement here.
Can the MPS-120-24 be used in embedded or machine-control subsystems that standardize on 24V DC?
Yes, 24V is a common control voltage in industrial and embedded equipment, and this unit is rated to supply 5A at that voltage. It suits protected machine-control subsystems, I/O devices, and related electronics that need 24V constant-voltage power. Loads that exceed 120W or 5A would need a higher-capacity model.
How does the MPS-120-24 compare with the other MPS 120W and 200W voltage variants?
The listed MPS-120-24 is 120W at 24V and 5A. Related 120W options include MPS-120-12 at 10A, MPS-120-15 at 8A, and MPS-120-48 at 2.5A, while MPS-120-5 is 110W at 22A and MPS-120-3.3 is 79.2W at 24A. If more 24V capacity is needed, the listed MPS-200-24 increases to 200W and 8.4A.
Is the MPS-120-24 appropriate for outdoor installations or only indoor equipment?
The available specs do not show an IP rating, so this model should be treated as intended for protected installations rather than direct outdoor exposure. Its operating temperature range is -20°C to +70°C, which covers a wide thermal range inside suitable equipment enclosures. If the site involves water or dust ingress, use an enclosure or a supply with a defined IP rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-120 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-120-5 Power Supply 110W 5V he rated current is based on there being a fan that can provide 25CFM. | 110W | 5V | 22A | Indoor | $95.98 | View |
| Mean Well MPS-120-48 Power Supply 120W 48V he rated current is based on there being a fan that can provide 25CFM. | 120W | 48V | 2.5A | Indoor | $95.98 | View |
| Mean Well MPS-120-3.3 Power Supply 79W 3.3V he rated current is based on there being a fan that can provide 25CFM. | 79.2W | 3.3V | 24A | Indoor | $95.98 | View |
| Mean Well MPS-120-15 Power Supply 120W 15V he rated current is based on there being a fan that can provide 25CFM. | 120W | 15V | 8A | Indoor | $95.98 | View |
| Mean Well MPS-120-12 Power Supply 120W 12V he rated current is based on there being a fan that can provide 25CFM. | 120W | 12V | 10A | Indoor | $95.98 | View |
