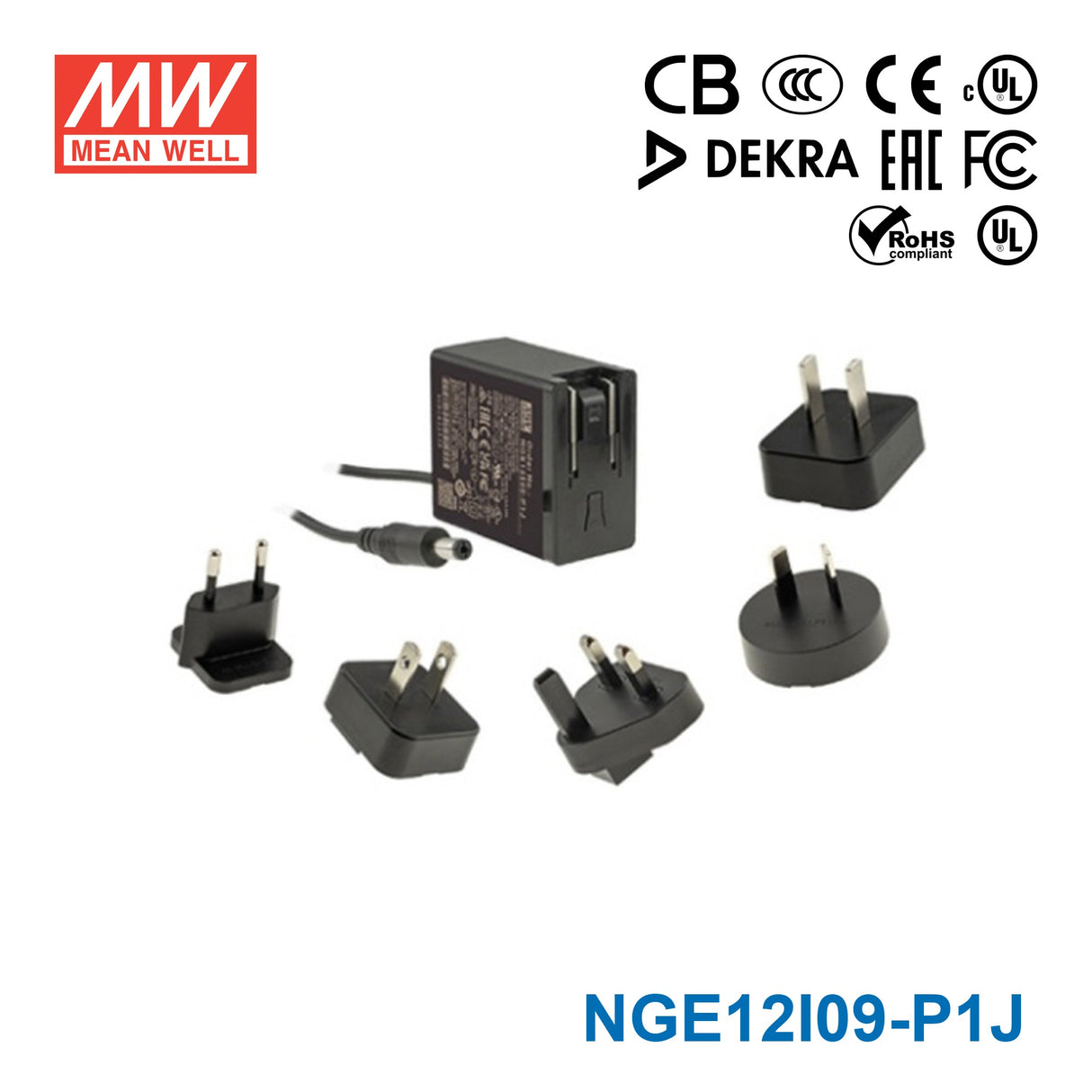

Mean Well NGE12I09-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 12W 9V 1.33A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE12I09-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE12I09 is a 12W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating12 Watt
-
Output Voltage9 Volt
-
Rated Current1.33 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well NGE12I09-P1J?
This model is rated for 12W total output power. It provides a 9V DC output with a rated current of 1.33A. That makes it suitable for equipment that specifically requires a 9V power adaptor within that power range.
What type of product is the NGE12I09-P1J?
The NGE12I09-P1J is an AC-DC wall-mounted green adaptor with interchangeable AC plugs. It is designed as an external power supply rather than an internal power module. Its slim housing and interchangeable plug format make it practical for commercial and international use cases.
Does this adaptor support international mains input?
Yes. It has a universal AC input range of 80 to 264VAC, and it also supports 113 to 370VDC input. This wide input range helps it suit deployment across regions with different mains standards.
What protection features are included in this power adaptor?
This model includes short circuit, overload, and over voltage protection. The overload protection uses hiccup mode and recovers automatically after the fault condition is removed. These built-in protections help support reliable operation in demanding applications.
Is the Mean Well NGE12I09-P1J energy efficient?
Yes. It meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a good choice for businesses looking to reduce standby energy use.
Can this adaptor be used in harsh temperature conditions?
It is rated for operation from -30°C to +70°C, which is a wide working temperature range for an external adaptor. This makes it suitable for applications where ambient conditions may be colder or hotter than typical indoor environments. Buyers should still confirm the full system operates within its required thermal limits.
What compliance or safety standards does this adaptor meet?
The NGE12I09-P1J is approved to a broad set of safety standards including IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1, UL62368-1, and additional regional approvals such as PSE, BSMI, RCM, EAC, and CCC. This broad certification coverage can be important for OEM, medical-adjacent, and export-focused purchasing requirements. It is also specified as Class II power with no earth pin.
What are the physical size and warranty of this adaptor?
The housing dimensions are 48 x 28 x 55mm, with an ultra-slim 28mm profile. The listed product weight is 0.13kg. Mean Well specifies a 3-year warranty for this model.
