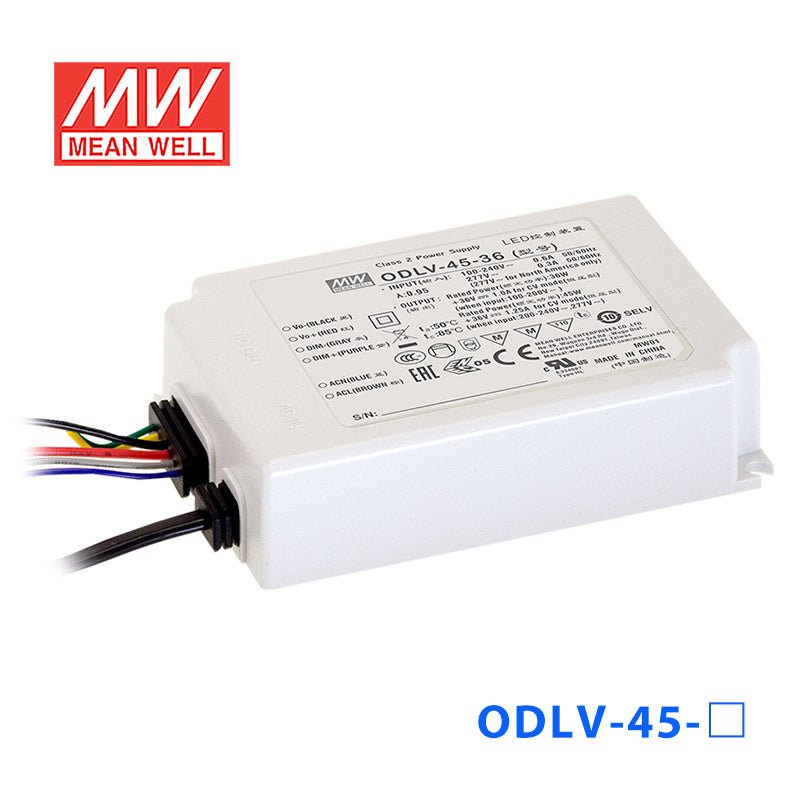

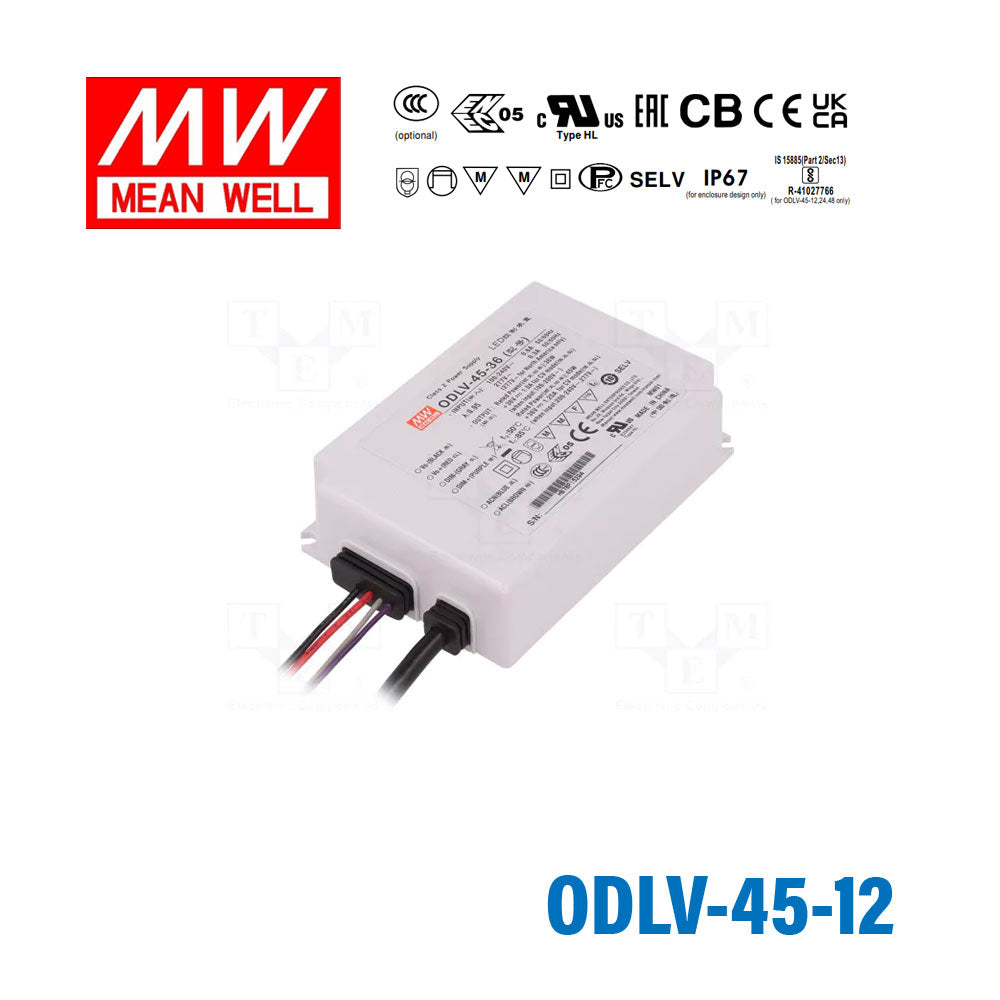

Mean Well ODLV-45-12 Power Supply 45W 12V , Dimmable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45-12 for a 12V LED strip lighting project?
Yes, this is a 12V constant voltage LED driver rated for 36W and 3A. It is suitable for 12V LED strip loads as long as the total strip load stays within 36W and you check your strip rated power per meter.
Is the ODLV-45-12 suitable for 12V LED signage or sign cabinet lighting?
It can be used for 12V constant voltage signage lighting where the total load does not exceed 36W. The IP67 rating also makes it suitable for signage exposed to rain or washdown conditions.
Can this driver power 12V outdoor accent lighting or landscape-style LED strips?
Yes, it can support 12V constant voltage lighting loads up to 36W. Its IP67 waterproof rating and -20°C to +85°C operating temperature range make it appropriate for wet and outdoor environments within that electrical limit.
Can I use the ODLV-45-12 for under-canopy or damp-location 12V lighting?
Yes, the IP67 enclosure is designed for wet-location exposure, and the unit operates from -20°C to +85°C. It is a fit for 12V constant voltage lighting loads up to 36W in damp or exposed areas.
How much 12V LED strip can this power supply run?
The maximum load is 36W, so the estimated strip length is 36W divided by your strip's rated watts per meter. For example, the sizing math is: max length = 36W / strip W per meter, and you should check your strip rated power per meter before selecting length.
What is the difference between the ODLV-45-12 and other related ODLV models?
In the 45 series, sibling outputs include 36W at 12V and 3A, 45.12W at 24V and 1.88A, 45W at 36V and 1.25A, 45.12W at 48V and 0.94A, and 45W at 60V and 0.75A. Related 65 series models increase capacity to 50.4W at 12V and 4.2A, 57.6W at 24V and 2.4A, 64.8W at 36V and 1.8A, 64.8W at 48V and 1.35A, and 64.8W at 60V and 1.08A.
Other ODLV-45 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLV-45-60 Power Supply 45W 60V, Dimmable | 45W | 60V | 0.75A | IP67 | $24.63 | View |
| Mean Well ODLV-45-48 Power Supply 45W 48V, Dimmable | 45.12W | 48V | 0.94A | IP67 | $24.63 | View |
| Mean Well ODLV-45-36 Power Supply 45W 36V, Dimmable | 45W | 36V | 1.25A | IP67 | $24.63 | View |
| Mean Well ODLV-45-24 Power Supply 45W 24V, Dimmable | 45.12W | 24V | 1.88A | IP67 | $26.83 | View |
