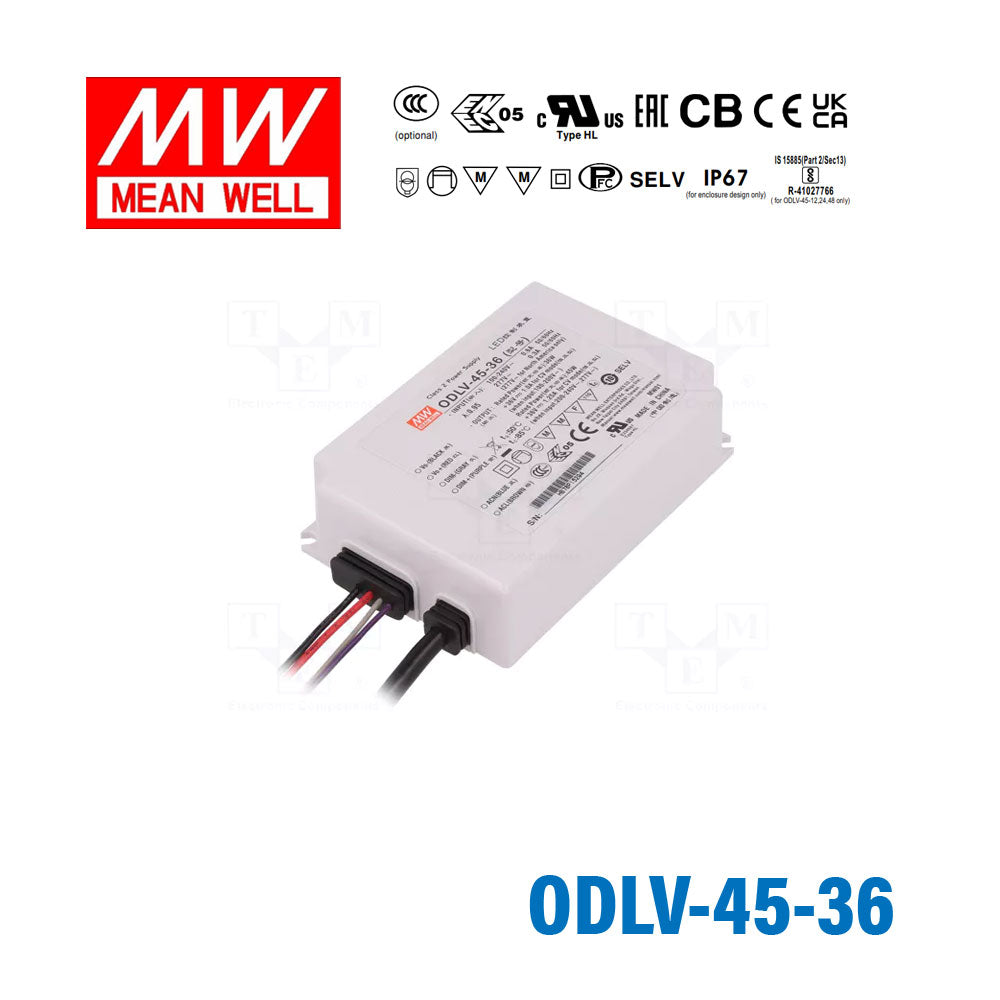

Mean Well ODLV-45-36 Power Supply 45W 36V, Dimmable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating45 Watt
-
Output Voltage36 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45-36 for a 36V LED strip lighting run?
Yes, if your LED strip is a 36V constant-voltage product and the total load stays within 45W. This driver outputs 36V DC at up to 1.25A, so the strip's voltage must match and its total rated power must not exceed the driver rating.
Is the ODLV-45-36 suitable for 36V illuminated signage?
It can be used for 36V constant-voltage sign lighting where the connected load is 45W or less. The IP67 enclosure also makes it appropriate for sign projects exposed to rain or washdown conditions, provided the sign system itself is designed for 36V operation.
Can this 36V driver power outdoor architectural lighting?
It is suitable for outdoor 36V constant-voltage lighting loads up to 45W because the unit is IP67 rated and operates from -20°C to +85°C. It should only be paired with lighting products that are also designed for 36V constant-voltage input.
How much 36V LED strip can the ODLV-45-36 support?
Use the strip length formula: maximum length = 45W divided by your strip's rated watts per meter. The driver's ceiling is 45W total at 36V, so check your strip rated power per meter before sizing the run.
Is the ODLV-45-36 okay for wet or exposed locations?
Yes, this model is rated IP67, which means it is intended for wet and outdoor environments where water resistance matters. Its operating temperature range is -20°C to +85°C, so both moisture exposure and wide ambient temperature conditions are part of its rated use envelope.
