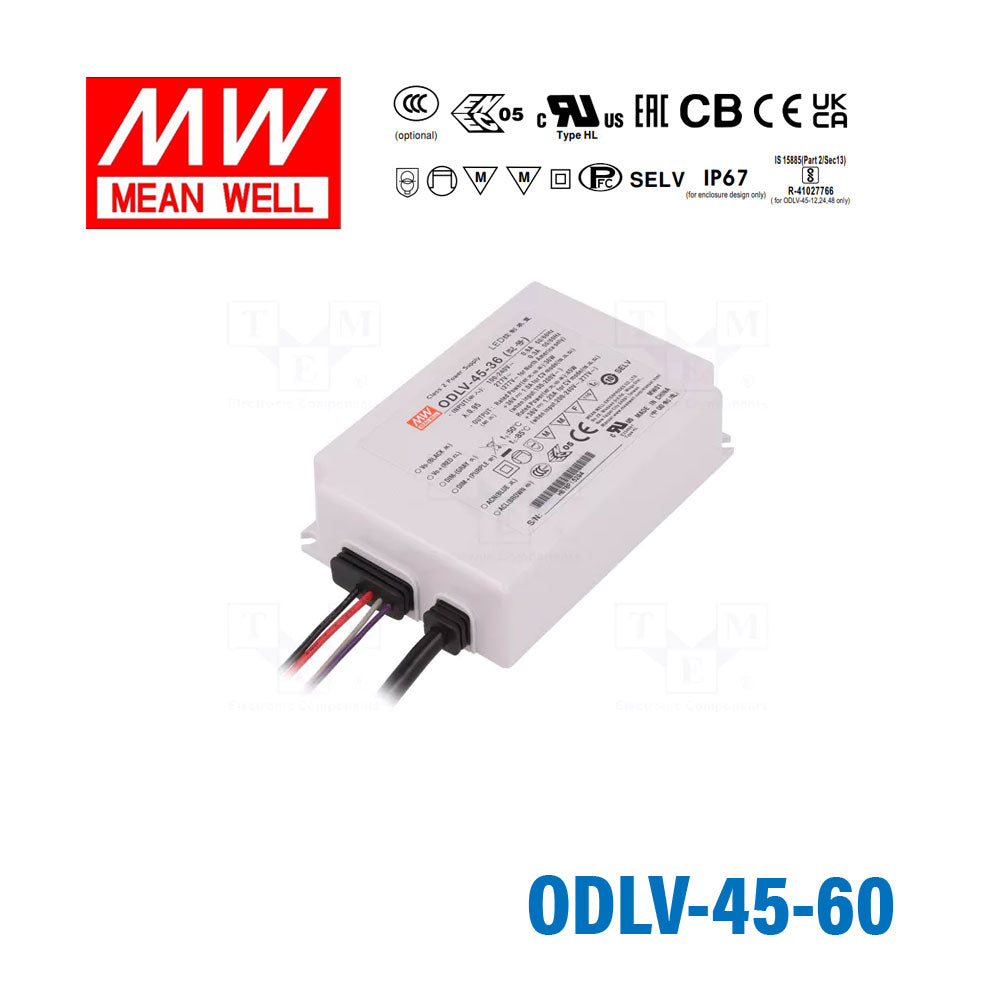

Mean Well ODLV-45-60 Power Supply 45W 60V, Dimmable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating45 Watt
-
Output Voltage60 Volt
-
Rated Current0.75 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45-60 for a 60V LED lighting system?
Yes, if the lighting product is a 60V constant-voltage load and stays within 45W total. This model outputs 60V DC at up to 0.75A, so the connected system must match that voltage.
Is the ODLV-45-60 suitable for 60V illuminated signage?
It can be used for 60V constant-voltage sign lighting applications where the total demand does not exceed 45W. Because the enclosure is IP67 rated, it is also appropriate where the power supply may face outdoor moisture exposure.
Can this driver be used for outdoor 60V lighting projects?
Yes, for 60V constant-voltage outdoor lighting loads up to 45W. The IP67 waterproof rating and -20°C to +85°C operating temperature range support use in wet and variable-environment installations.
How much 60V LED strip can the ODLV-45-60 run?
Use this sizing method: maximum strip length = 45W divided by your strip's watts per meter. The output limit is 45W total at 60V, so check your strip rated power per meter before choosing the run length.
Is the ODLV-45-60 rated for wet areas and temperature swings?
Yes, the housing is rated IP67 for waterproof use, and the specified operating temperature range is -20°C to +85°C. That makes it suitable for environments where both water resistance and broad temperature tolerance are required.
