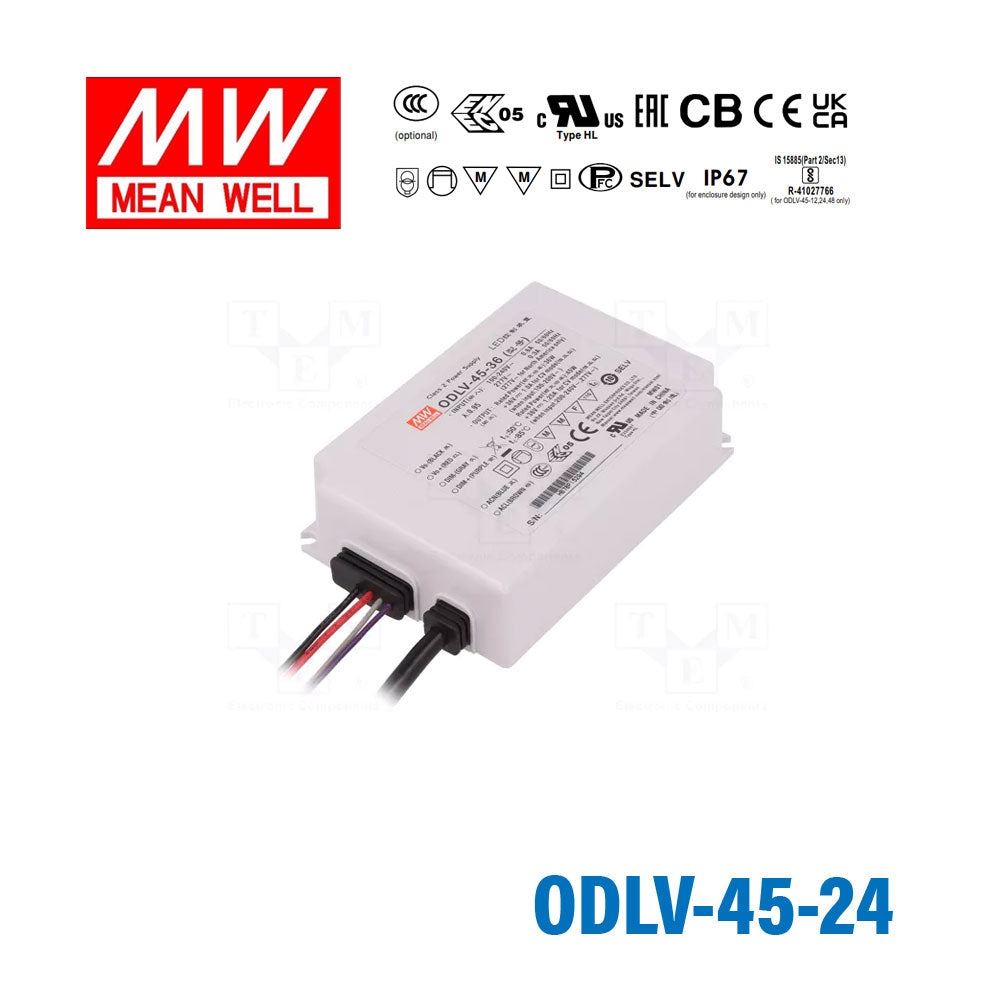

Mean Well ODLV-45-24 Power Supply 45W 24V, Dimmable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating45.12 Watt
-
Output Voltage24 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45-24 with a 24V LED strip?
Yes, this is a 24V constant voltage LED driver rated for 45.12W and 1.88A. It is suitable for 24V LED strip loads as long as the total strip power stays within 45.12W and you check your strip rated power per meter.
Is the ODLV-45-24 a good match for 24V LED signage lighting?
It can be used for 24V constant voltage signage loads up to 45.12W. The IP67 waterproof rating also makes it suitable for sign lighting in outdoor or wet conditions.
Can this driver be used for 24V linear lighting in outdoor areas?
Yes, for 24V constant voltage lighting loads within 45.12W. Its IP67 rating and -20°C to +85°C operating temperature range make it suitable for wet and outdoor environments.
Can I use the ODLV-45-24 for 24V architectural or facade LED strip lighting?
Yes, if the lighting uses 24V constant voltage input and the total load does not exceed 45.12W. The waterproof IP67 housing supports use in exposed conditions where moisture resistance is required.
How do I estimate the maximum 24V LED strip length this driver can support?
This driver can supply up to 45.12W, so the strip length estimate is 45.12W divided by your strip's rated watts per meter. The sizing formula is: max length = 45.12W / strip W per meter, and you should check your strip rated power per meter before choosing length.
Is the ODLV-45-24 suitable for outdoor or wet-location use?
Yes, the unit is rated IP67 waterproof, which supports use in wet and outdoor environments. It is also specified for operation from -20°C to +85°C.
Other ODLV-45 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLV-45-60 Power Supply 45W 60V, Dimmable | 45W | 60V | 0.75A | IP67 | $24.63 | View |
| Mean Well ODLV-45-48 Power Supply 45W 48V, Dimmable | 45.12W | 48V | 0.94A | IP67 | $24.63 | View |
| Mean Well ODLV-45-36 Power Supply 45W 36V, Dimmable | 45W | 36V | 1.25A | IP67 | $24.63 | View |
| Mean Well ODLV-45-12 Power Supply 45W 12V , Dimmable | 36W | 12V | 3A | IP67 | $24.63 | View |
