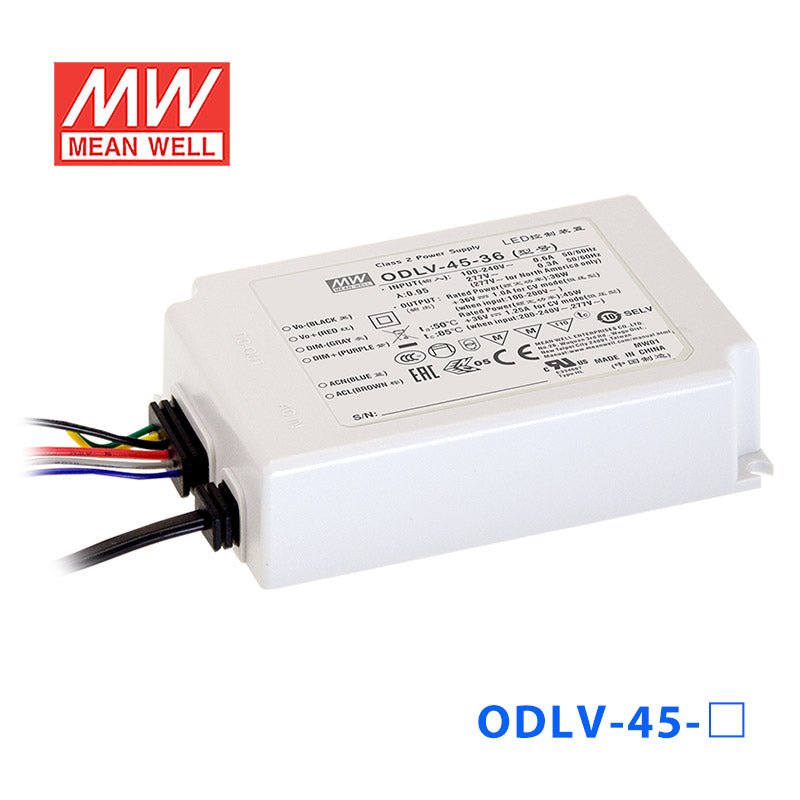

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

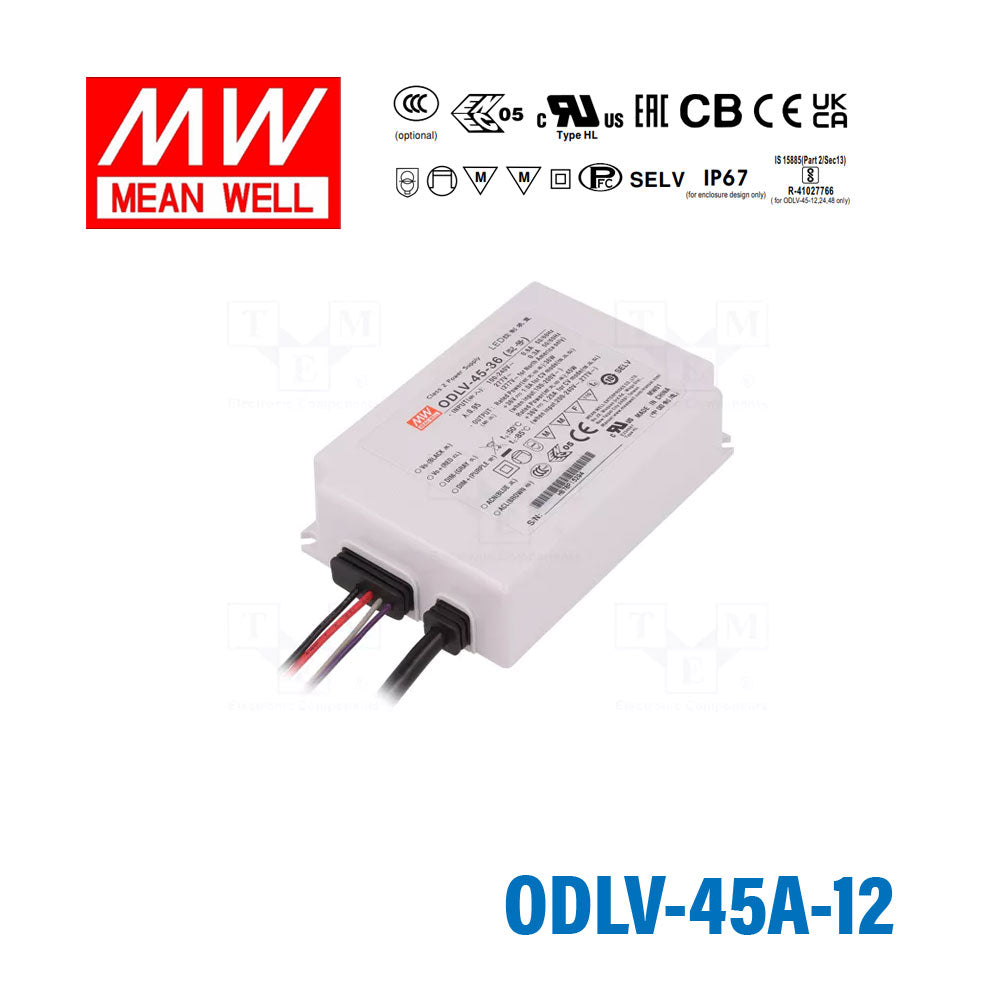

Mean Well ODLV-45A-12 Power Supply 45W 12V (Auxiliary DC output)
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Auxiliary DC Output
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45A-12 for 12V LED strip lights?
Yes, if the strip is a 12V constant-voltage type and the total connected load stays within 36W. This model outputs 12V DC at up to 3A, so it fits 12V strip lighting within that power limit.
Is the ODLV-45A-12 suitable for 12V sign lighting?
It can be used for 12V constant-voltage signage and light box loads up to 36W. The IP67 rating also supports use where the driver needs protection from rain or wet conditions.
Can this model power outdoor 12V accent or landscape lighting?
Yes, for 12V constant-voltage outdoor lighting applications that stay within the 36W rating. Its IP67 enclosure and -20°C to +85°C operating range make it suitable for exposed and temperature-variable locations.
How do I size LED strip length for the ODLV-45A-12?
The calculation is maximum length = 36W divided by the strip's watts per meter. Since this driver is rated for 36W total at 12V, check your strip rated power per meter before estimating the usable run length.
How does the ODLV-45A-12 compare with other ODLV 12V and higher-voltage models?
The listed siblings include 12V 36W 3A, 24V 45.12W 1.88A, 36V 45W 1.25A, 48V 45.12W 0.94A, and 60V 45W 0.75A in both standard ODLV-45 and ODLV-45A variants. Higher-output options in the same family are 12V 50.4W 4.2A, 24V 57.6W 2.4A, 36V 64.8W 1.8A, 48V 64.8W 1.35A, and 60V 64.8W 1.08A, also with matching A versions.
Other ODLV-45A Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLV-45A-60 Power Supply 45W 60V (Auxiliary DC output) | 45W | 60V | 0.75A | IP67 | $25.93 | View |
| Mean Well ODLV-45A-48 Power Supply 45W 48V (Auxiliary DC output) | 45.12W | 48V | 0.94A | IP67 | $25.93 | View |
| Mean Well ODLV-45A-36 Power Supply 45W 36V (Auxiliary DC output) | 45W | 36V | 1.25A | IP67 | $25.93 | View |
| Mean Well ODLV-45A-24 Power Supply 45W 24V (Auxiliary DC output) | 45.12W | 24V | 1.88A | IP67 | $25.93 | View |
