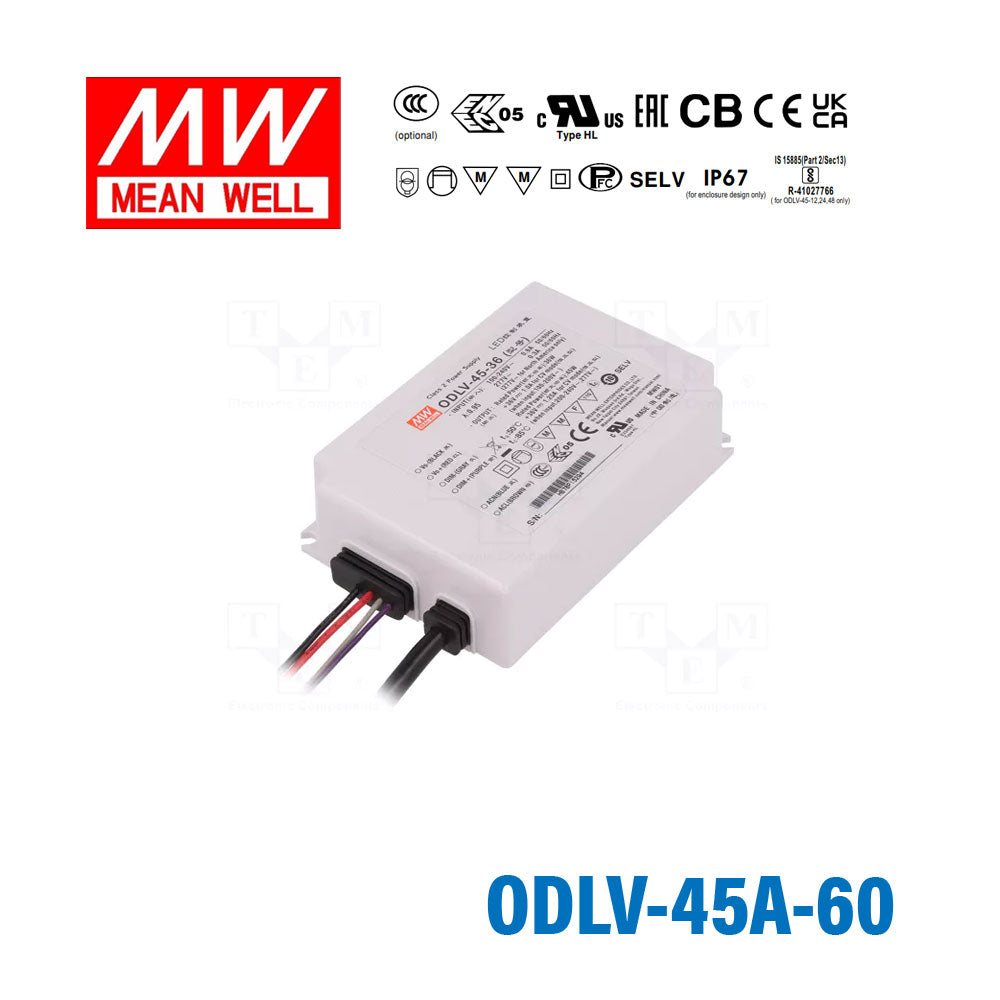

Mean Well ODLV-45A-60 Power Supply 45W 60V (Auxiliary DC output)
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating45 Watt
-
Output Voltage60 Volt
-
Rated Current0.75 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Auxiliary DC Output
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45A-60 with 60V LED strip lighting?
Yes, this is a 60V constant voltage LED driver rated for 45W maximum output and 0.75A output current. It is intended for 60V lighting loads that stay within that 45W limit.
Is the ODLV-45A-60 suitable for 60V illuminated sign projects?
It can be used for 60V constant voltage sign lighting and similar lighting assemblies where the total load is no more than 45W. The IP67 waterproof enclosure makes it appropriate for outdoor sign power applications.
Can this model be used for 60V outdoor linear lighting systems?
Yes, if the lighting system requires 60V constant voltage and has a total demand within 45W. Its IP67 rating and -20°C to +85°C operating temperature make it suitable for exposed lighting environments.
How much 60V LED strip can the ODLV-45A-60 power?
The driver can supply up to 45W total, so the maximum supported strip length is 45W divided by your strip's rated power per meter. Check your strip rated power per meter first, then use the formula 45W ÷ strip W/m.
Is the ODLV-45A-60 rated for wet or outdoor conditions?
Yes, it carries an IP67 waterproof rating for use in wet or outdoor locations. It is also specified to operate from -20°C to +85°C, which covers a broad environmental range.
How does the ODLV-45A-60 compare across the ODLV family?
The related 45W models are ODLV-45-12 at 36W 12V 3A, ODLV-45-24 at 45.12W 24V 1.88A, ODLV-45-36 at 45W 36V 1.25A, ODLV-45-48 at 45.12W 48V 0.94A, ODLV-45-60 at 45W 60V 0.75A, ODLV-45A-12 at 36W 12V 3A, ODLV-45A-24 at 45.12W 24V 1.88A, ODLV-45A-36 at 45W 36V 1.25A, ODLV-45A-48 at 45.12W 48V 0.94A, and ODLV-45A-60 at 45W 60V 0.75A. The higher-output 65 series includes ODLV-65-12 at 50.4W 12V 4.2A, ODLV-65-24 at 57.6W 24V 2.4A, ODLV-65-36 at 64.8W 36V 1.8A, ODLV-65-48 at 64.8W 48V 1.35A, ODLV-65-60 at 64.8W 60V 1.08A, ODLV-65A-12 at 50.4W 12V 4.2A, ODLV-65A-24 at 57.6W 24V 2.4A, ODLV-65A-36 at 64.8W 36V 1.8A, ODLV-65A-48 at 64.8W 48V 1.35A, and ODLV-65A-60 at 64.8W 60V 1.08A. This version is the 60V, 45W, 0.75A option in the ODLV-45A range.
Other ODLV-45A Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLV-45A-48 Power Supply 45W 48V (Auxiliary DC output) | 45.12W | 48V | 0.94A | IP67 | $25.93 | View |
| Mean Well ODLV-45A-36 Power Supply 45W 36V (Auxiliary DC output) | 45W | 36V | 1.25A | IP67 | $25.93 | View |
| Mean Well ODLV-45A-24 Power Supply 45W 24V (Auxiliary DC output) | 45.12W | 24V | 1.88A | IP67 | $25.93 | View |
| Mean Well ODLV-45A-12 Power Supply 45W 12V (Auxiliary DC output) | 36W | 12V | 3A | IP67 | $25.93 | View |
