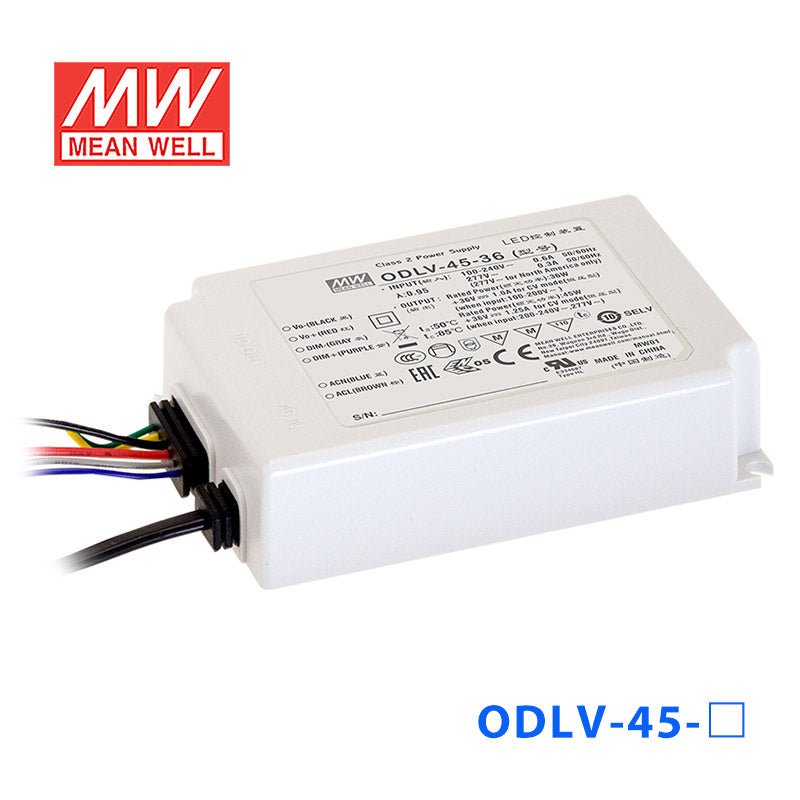

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well ODLV-45A-36 Power Supply 45W 36V (Auxiliary DC output)
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating45 Watt
-
Output Voltage36 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Auxiliary DC Output
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45A-36 for 36V LED strip lighting?
Yes, this is a 36V constant voltage LED driver with a 45W maximum output and 1.25A output current. It is suited to 36V LED strip loads as long as the total strip load stays within 45W.
Is the ODLV-45A-36 suitable for 36V illuminated signage or light box projects?
It can be used for 36V constant voltage signage and light box lighting where the connected load does not exceed 45W. The IP67 rating also makes it appropriate for signs exposed to rain or washdown conditions.
Can this power supply run 36V architectural accent lighting outdoors?
It is a fit for 36V constant voltage architectural accent lighting when the fixture system requires up to 45W. Its IP67 waterproof housing and -20°C to +85°C operating temperature support demanding indoor or outdoor environments.
How much 36V LED strip can the ODLV-45A-36 support?
The maximum strip load is 45W, so the maximum strip length is calculated as 45W divided by your strip's rated power per meter. For example, use the formula 45W ÷ strip W/m, and check your strip rated power per meter before sizing.
Can the ODLV-45A-36 be used in wet or exposed locations?
Yes, the unit is rated IP67, which means it is intended for waterproof use in wet environments. It is suitable where the driver may be exposed to rain, splashing, or outdoor conditions within its -20°C to +85°C operating range.
How does the ODLV-45A-36 compare with other ODLV models in the same series?
In the 45W range, the siblings are ODLV-45-12 at 36W 12V 3A, ODLV-45-24 at 45.12W 24V 1.88A, ODLV-45-36 at 45W 36V 1.25A, ODLV-45-48 at 45.12W 48V 0.94A, ODLV-45-60 at 45W 60V 0.75A, ODLV-45A-12 at 36W 12V 3A, ODLV-45A-24 at 45.12W 24V 1.88A, ODLV-45A-36 at 45W 36V 1.25A, ODLV-45A-48 at 45.12W 48V 0.94A, and ODLV-45A-60 at 45W 60V 0.75A. In the 65W range, the siblings are ODLV-65-12 at 50.4W 12V 4.2A, ODLV-65-24 at 57.6W 24V 2.4A, ODLV-65-36 at 64.8W 36V 1.8A, ODLV-65-48 at 64.8W 48V 1.35A, ODLV-65-60 at 64.8W 60V 1.08A, ODLV-65A-12 at 50.4W 12V 4.2A, ODLV-65A-24 at 57.6W 24V 2.4A, ODLV-65A-36 at 64.8W 36V 1.8A, ODLV-65A-48 at 64.8W 48V 1.35A, and ODLV-65A-60 at 64.8W 60V 1.08A. This ODLV-45A-36 sits at 36V with a 45W output and 1.25A current in the auxiliary-output 45A group.
