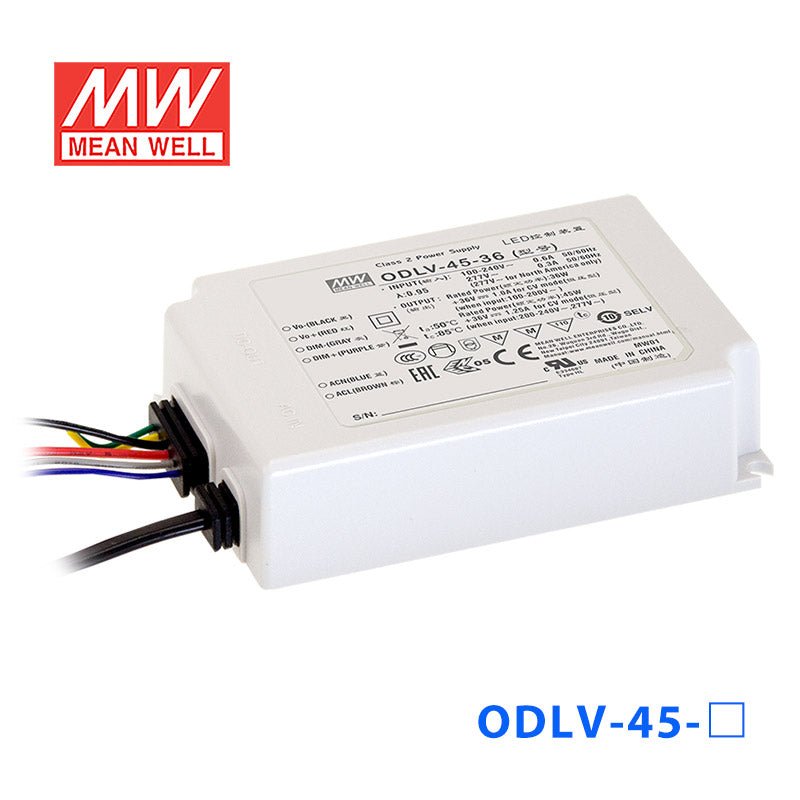

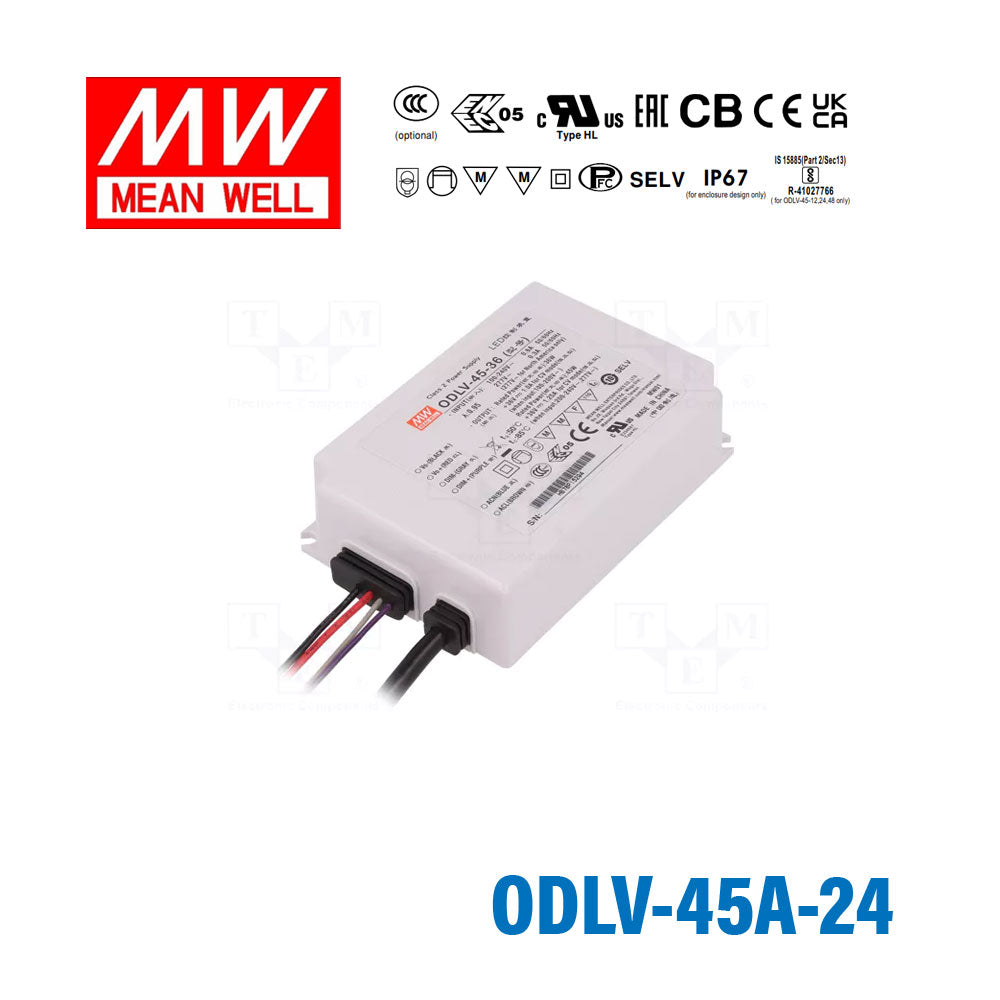

Mean Well ODLV-45A-24 Power Supply 45W 24V (Auxiliary DC output)
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating45.12 Watt
-
Output Voltage24 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Auxiliary DC Output
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-45A-24 with 24V LED strip lighting?
Yes, if your strip is a 24V constant-voltage product and the total load does not exceed 45.12W. This driver provides 24V DC at up to 1.88A, so the strip voltage and total power both need to match.
Is the ODLV-45A-24 appropriate for 24V LED signage?
It is suitable for 24V constant-voltage sign and display lighting where the connected load is 45.12W or less. The IP67 waterproof rating also supports use in signs exposed to outdoor weather.
Can this driver be used for outdoor 24V linear or accent lighting?
Yes, it can support outdoor 24V constant-voltage lighting loads up to 45.12W. Its IP67 enclosure and -20°C to +85°C operating temperature range make it appropriate for wet and changing environmental conditions.
What LED strip length can the ODLV-45A-24 support?
Use the formula maximum length = 45.12W divided by the strip's watts per meter. That gives the power-based limit for this 24V driver, but you should check your strip rated power per meter before final selection.
Is the ODLV-45A-24 suitable for wet locations?
Yes, this model is IP67 rated, so it is intended for applications where waterproof protection is needed. The specified operating range of -20°C to +85°C also supports use in environments with significant temperature variation.
