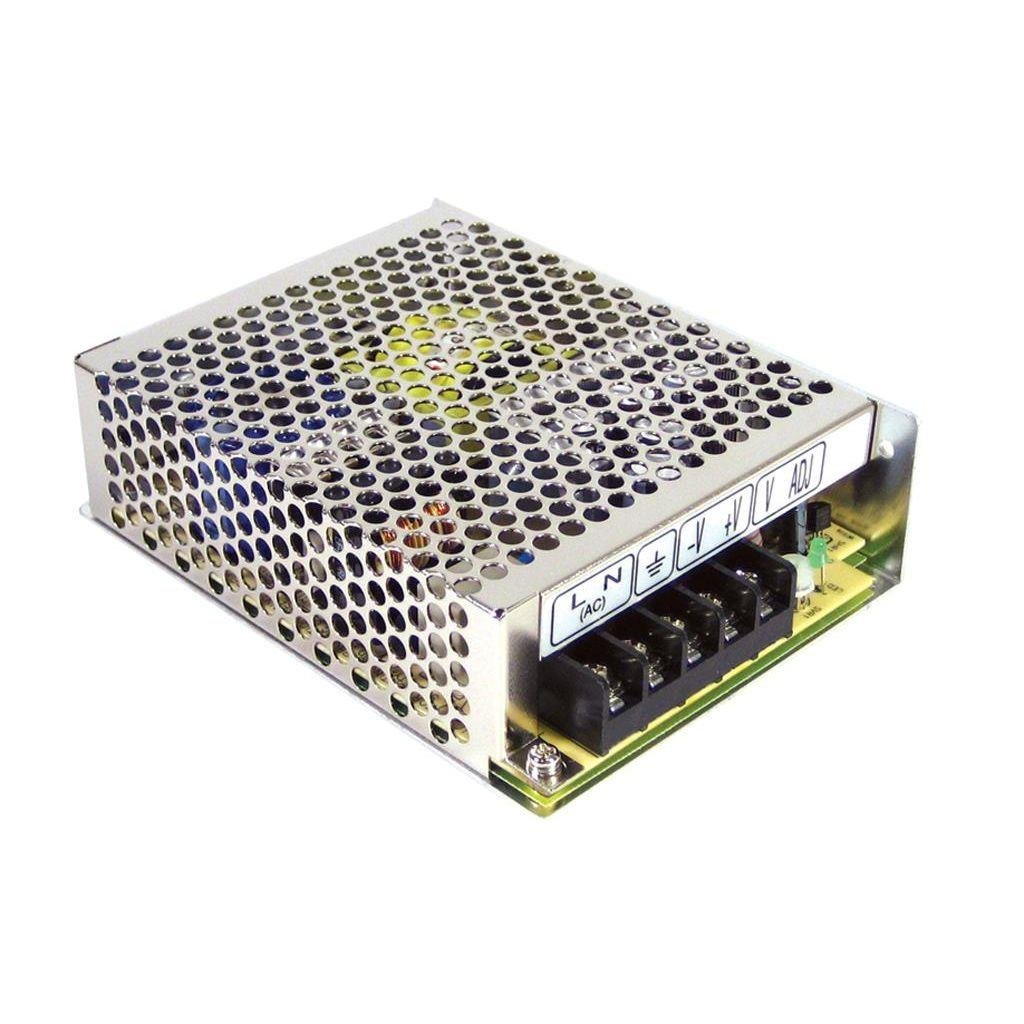

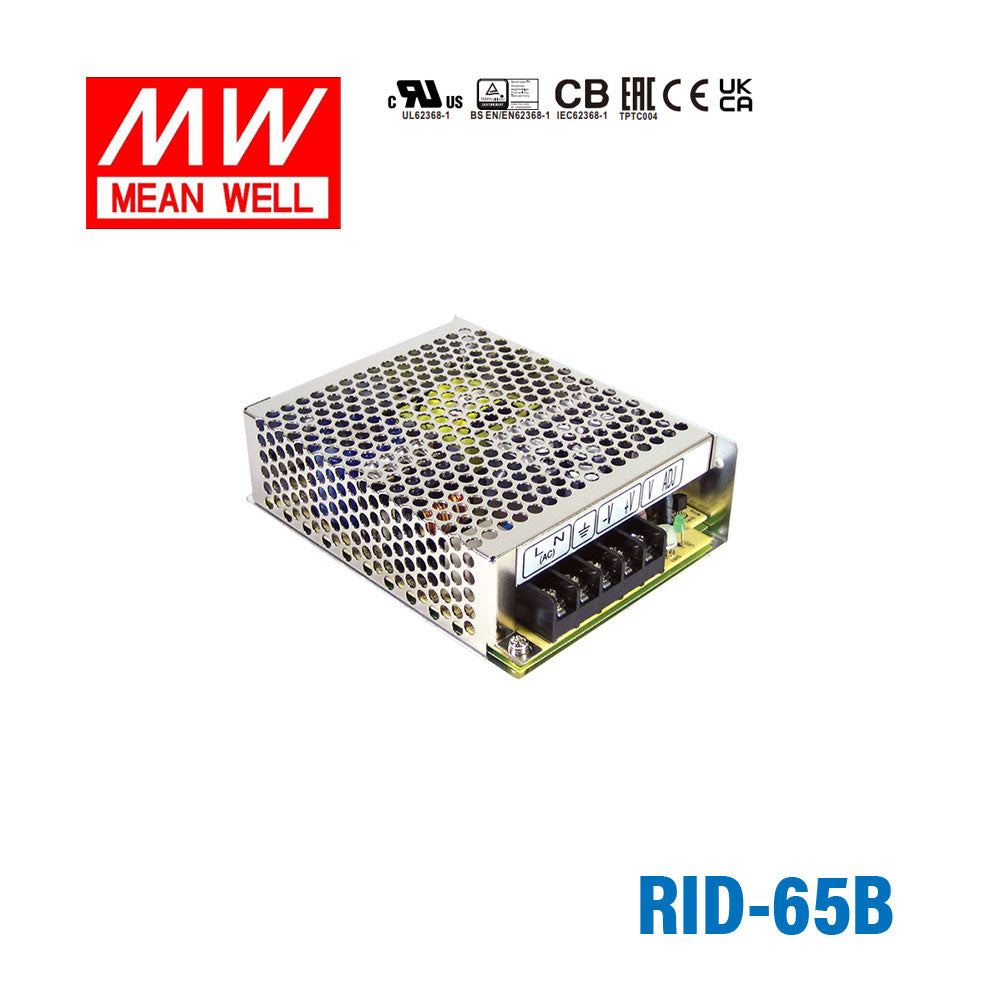

Mean Well RID-65B AC-DC Dual output enclosed power supply 65W 2A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RID-65B AC-DC Dual output enclosed power supply 65W 2A
Overview
RID-65B is the 5V / 24V output model of this series: rated current 4A / 2A, rated power 68W, typical efficiency 81%.
Features
- Isolated output & GND for CH1,CH2
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- 5V / 24V
- RATED CURRENT
- 4A / 2A
- CURRENT RANGENote.6
- 0 ~ 8A / 0 ~ 3A
- RATED POWERNote.6
- 68W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p / 150mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±2.0% / ±10%
- LINE REGULATIONNote.4
- ±0.5% / ±2.0%
- LOAD REGULATIONNote.5
- ±0.5% / ±5.0%
- SETUP, RISE TIME
- 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 81%
- AC CURRENT (Typ.)
- 2A/115VAC 1.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 50A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)on +5V output
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 7)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2940.2K hrs min. Telcordia SR-332 (Bellcore) ; 541.0K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 129*98*38mm (L*W*H)
- PACKING
- 0.44Kg; 30pcs/14.2Kg/0.72CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%.
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
- 6. Each output can work within current range. But total output power can't exceed rated output power.
- 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates1
FAQ
Can I use the RID-65B for 5V automation controllers and industrial logic circuits?
Yes, for equipment that requires 5V DC and stays within the 65W and 2A output rating. It fits automation controllers and logic circuits where the load does not need the higher 3A level of RID-65A.
Is the RID-65B suitable for 5V IT or embedded devices inside an equipment enclosure?
It is suitable for enclosed IT or embedded devices that run on 5V DC and need up to 65W or 2A. The 129.0 × 98.0 × 38.0 mm housing supports use in compact equipment enclosures.
Can this power supply be used for 5V industrial monitoring or communications modules?
Yes, if the monitoring or communications modules are specified for 5V DC and their demand remains within 65W and 2A. The isolated dual output design is intended for protected equipment environments rather than exposed field use.
Will the RID-65B handle hot control cabinets or cooler plant areas?
The specified operating range is -25°C to +70°C, so it can cover both cooler and hotter indoor industrial conditions within that range. Since no IP rating is provided, it should be used in a protected enclosure instead of exposed outdoor service.
How does RID-65B compare with RID-65A and the rest of the RID family?
RID-65B is 65W at 5V and 2A. In the listed siblings, RID-65A is 65W, 5V, 3A; RID-50A is 50W, 5V, 2A; RID-50B is 50W, 5V, 1.4A; RID-85A is 85W, 5V, 4A; RID-85B is 85W, 5V, 2A; RID-125-1205 is 125W, 5V, 3A; RID-125-1224 is 125W, 12V, 3.7A; RID-125-1248 is 125W, 12V, 2.3A; RID-125-2405 is 125W, 5V, 3A; and RID-125-2448 is 125W, 24V, 22A.
