Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

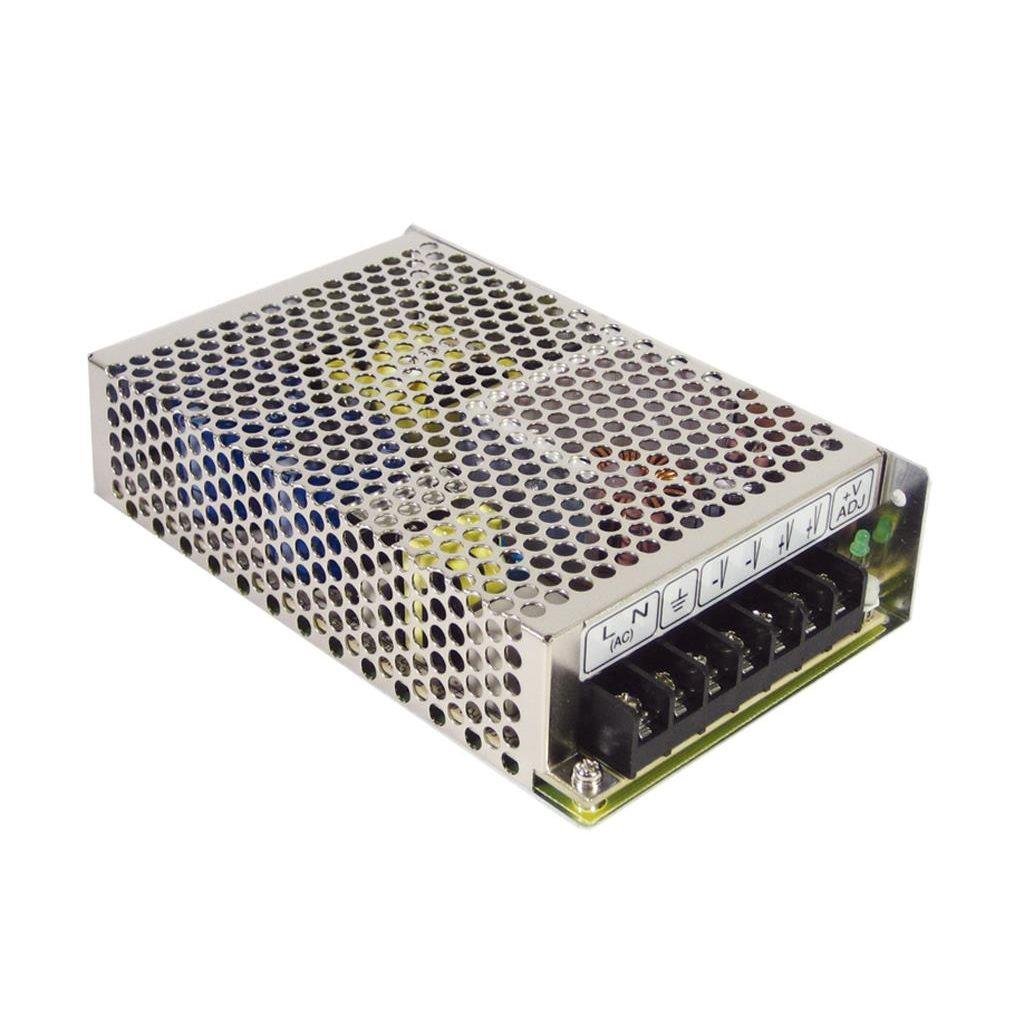

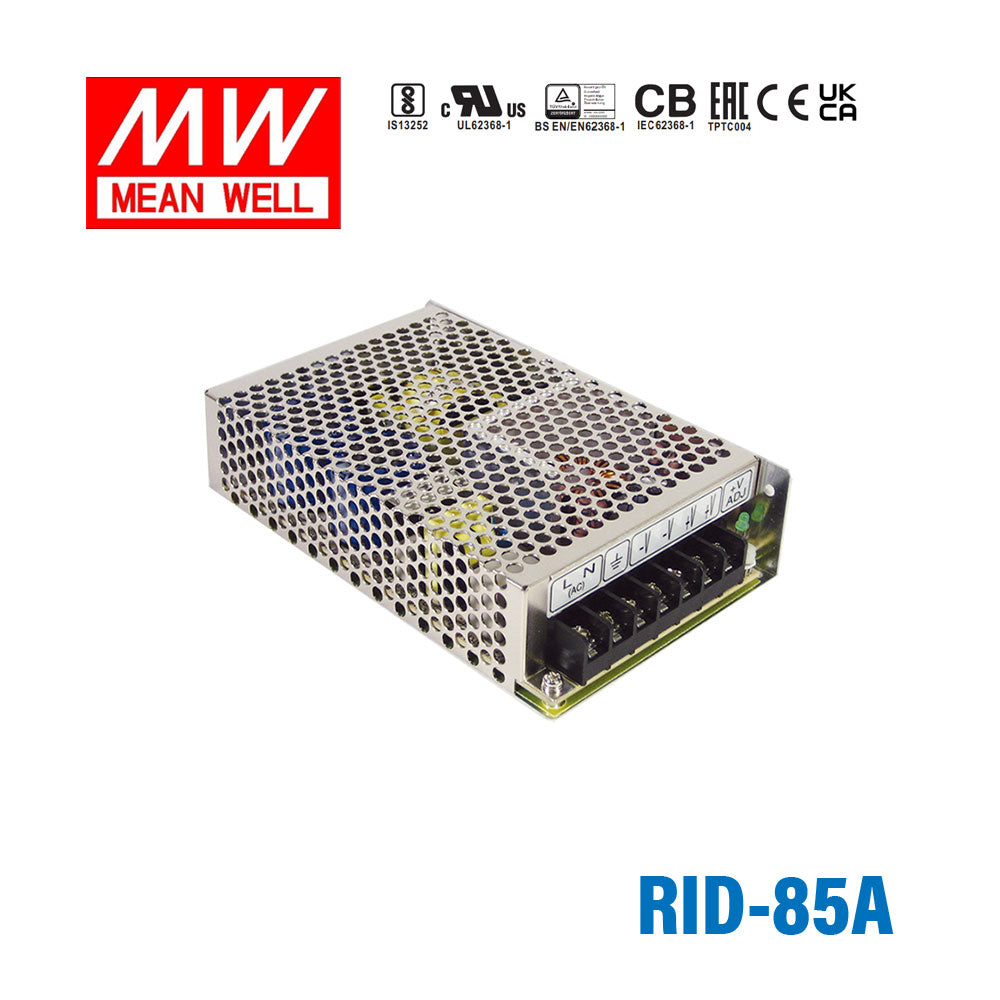

Mean Well RID-85A AC-DC Dual output enclosed power supply 85W

Name: Mean Well RID-85A AC-DC Dual output enclosed power supply 85W
Brand: Mean Well
SKU: RID-85A
Price: 41.96 USD
Availability: InStock

Mean Well RID-85A AC-DC Dual output enclosed power supply 85W

On Backorder

$41.96 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	88~264VAC, 125~373VDC
AC inrush current (max.)	50A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection	110%~150%
Over voltage protection	115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature	-25~+70°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV EN62368-1 approved
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2)
Connection	Terminal block for input and output
Dimension (LxWxH)	159x 97x 38
Case No.	901C
Packing	24pcs /15.4kg
