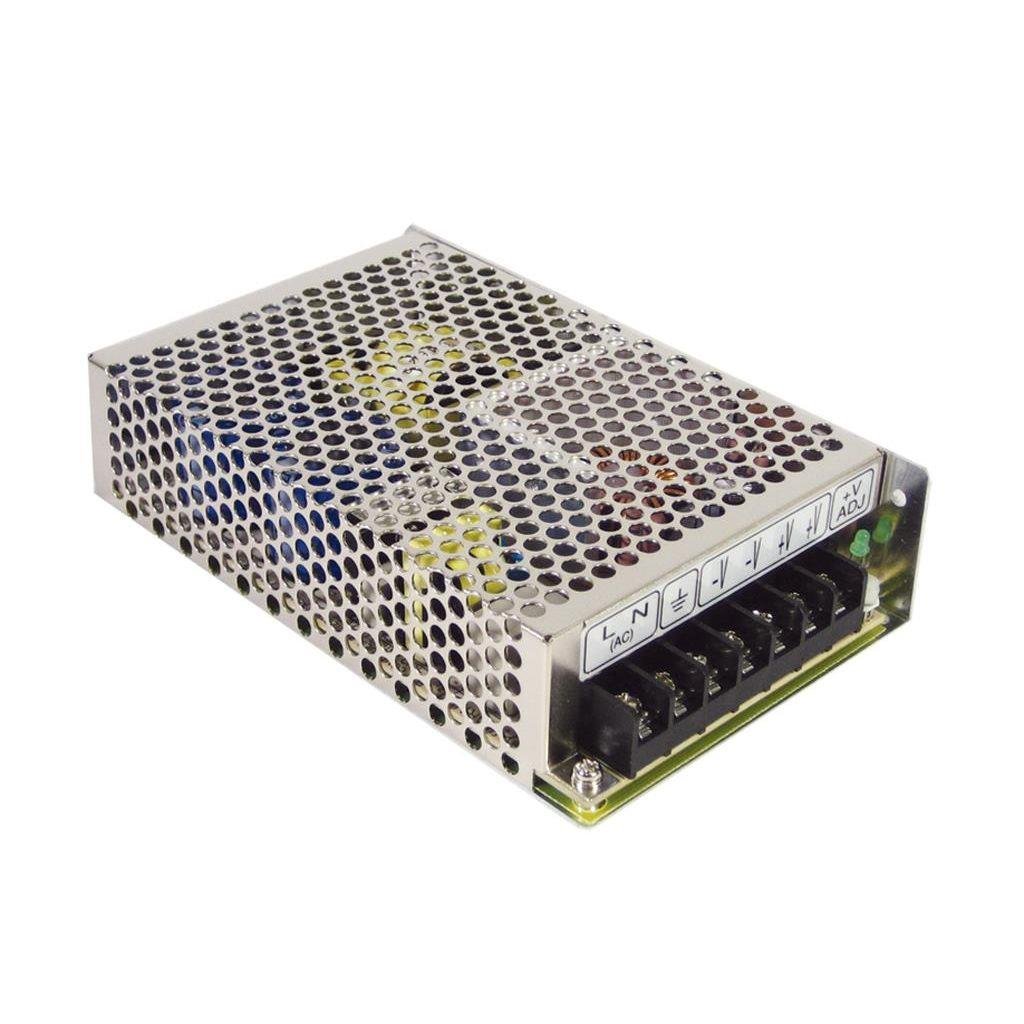

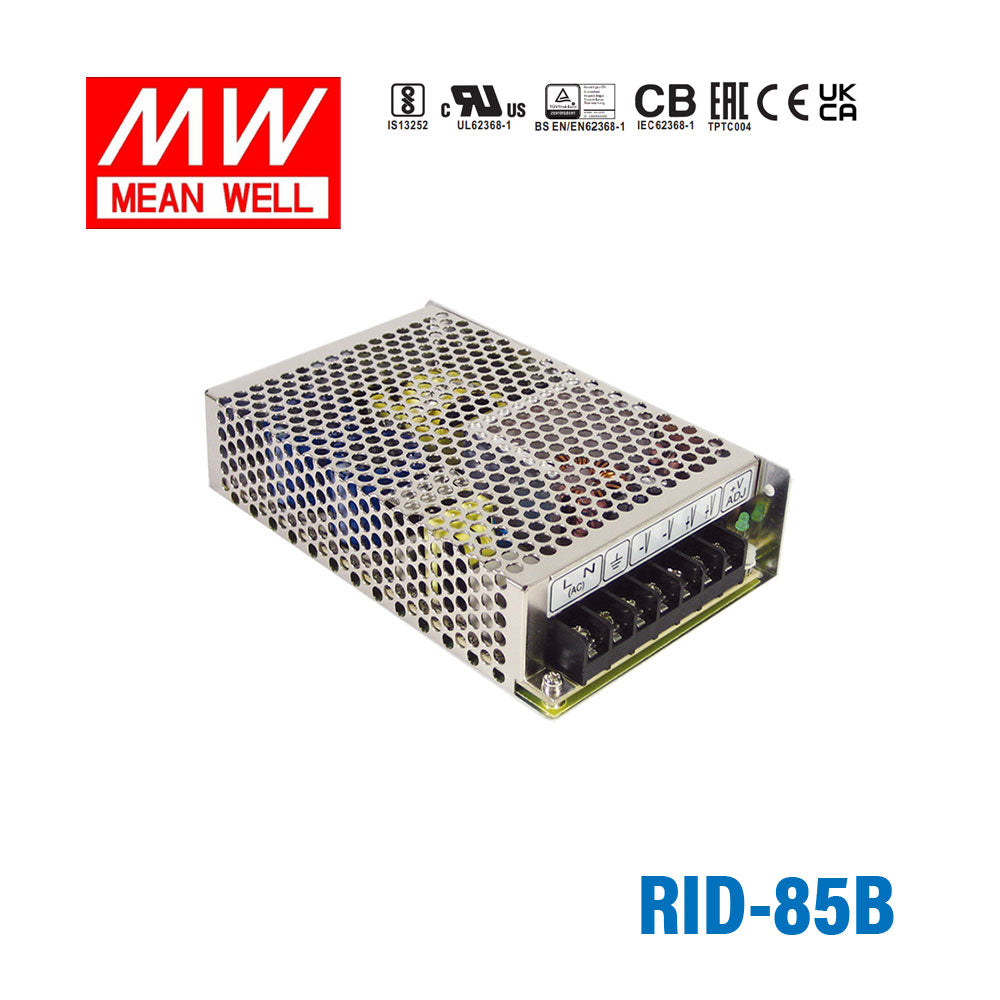

Mean Well RID-85B AC-DC Dual output enclosed power supply 85W
miniature size, economical, withstand 5G vibration and 70°C operation, isolated dual output
SKU:
RID-85B
$37.76 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Description
Description
Features
Protections: Short circuit / Overload / Over voltage |
100% full load burn-in test |
Universal AC input/Full range |
Isolated output & GND for CH1, CH2 |
High operating temperature up to 70°C |
Withstand 5G vibration test |
All using 105°C long life electrolytic capacitors |
High efficiency, long life and high reliability |
Cooling by free air convection |
3 years warranty |
General Specification
AC input voltage range | 88~264VAC, 125~373VDC |
AC inrush current (max.) | 50A at 230VAC |
DC adjustment range | ±10% by potentiometer |
Overload protection | 110%~150% |
Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
Working temperature | -25~+70°C |
Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
Safety standards | UL62368-1, TUV EN62368-1 approved |
EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
Connection | Terminal block for input and output |
Dimension (LxWxH) | 159x 97x 38 |
Case No. | 901C |
Packing | 24pcs /15.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRID Series
-
Power Rating85 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage88V~264V
-
No of Output2
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.32 lb
