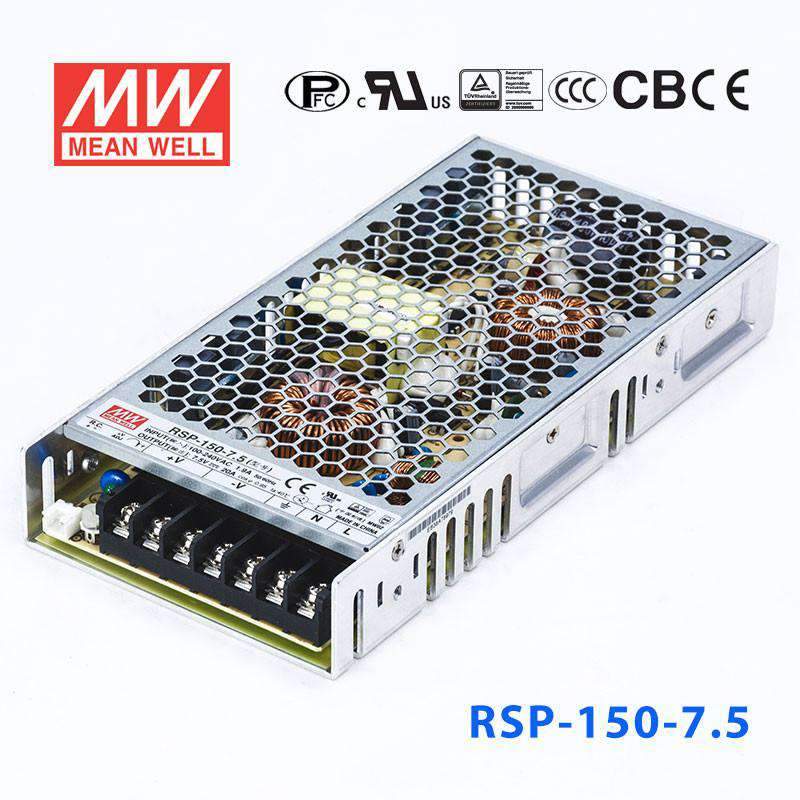

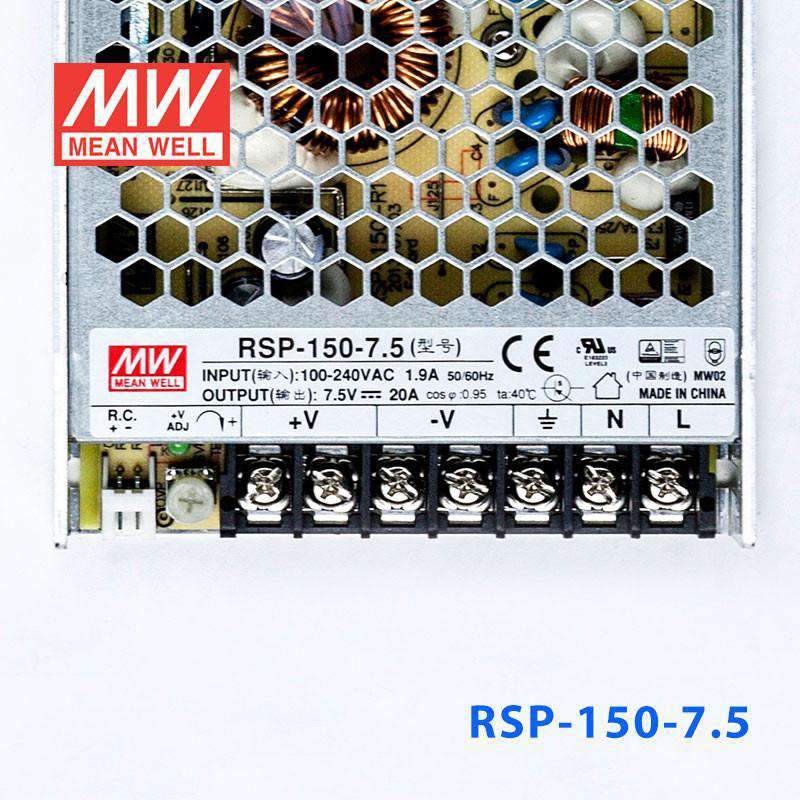

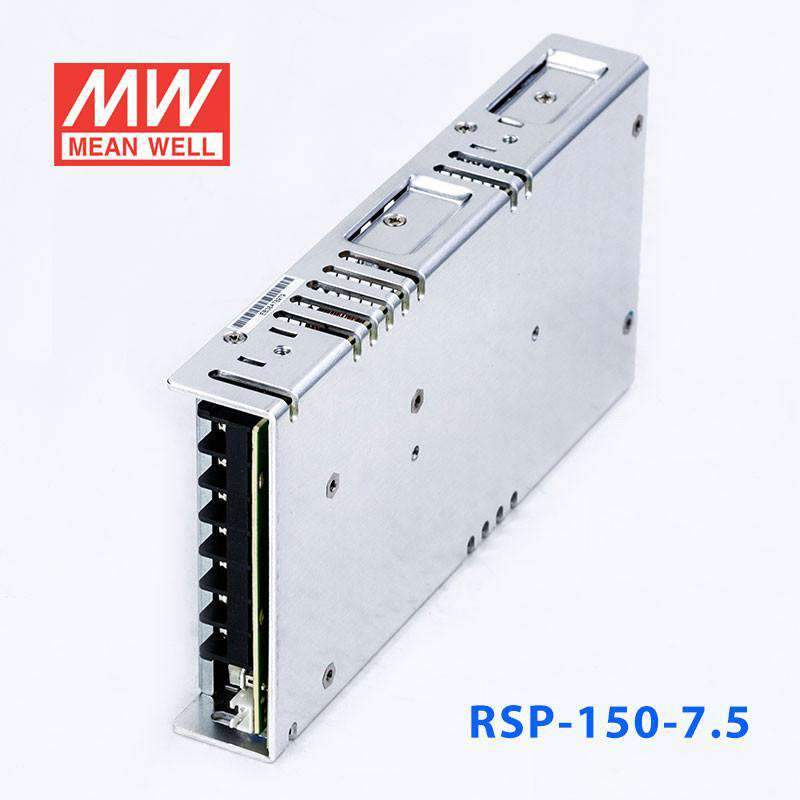

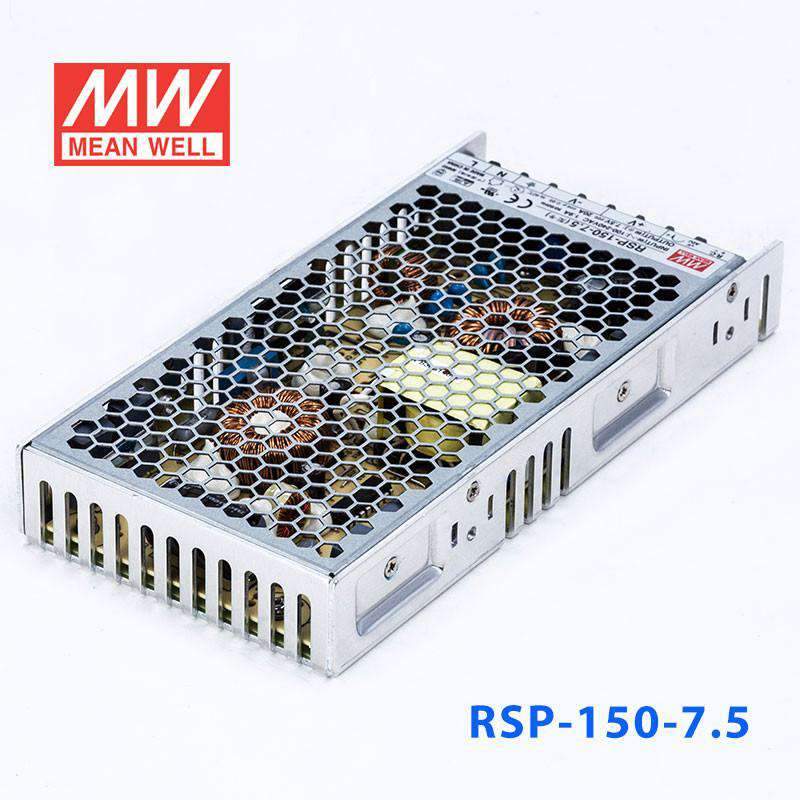

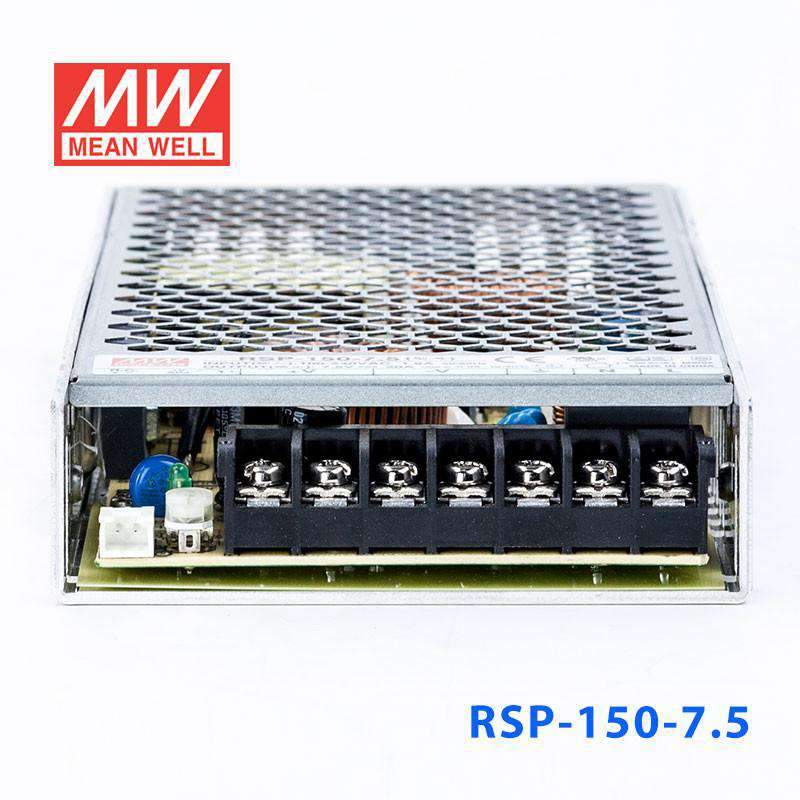

Mean Well RSP-150-7.5 Power Supply 150W 7.5V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating150 Watt
-
Output Voltage7.5 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.32 lb
::specification::
Frequently Asked Questions
What 7.5V applications can the RSP-150-7.5 power?
The RSP-150-7.5 delivers 7.5V at 20A (150W) and is suited for embedded system boards and industrial control cards that specify a 7.5V rail. At 20A output it can drive multiple 7.5V loads simultaneously in distributed panel architectures. The 85–264VAC input is compatible with all standard AC supplies.
How does the RSP-150-7.5 compare to the RSP-100-7.5?
The RSP-100-7.5 delivers 7.5V at 13.5A (101.25W) in a 179.0 × 99.0 × 30.0 mm chassis. The RSP-150-7.5 delivers 7.5V at 20A (150W) in a 199.0 × 99.0 × 30.0 mm chassis. Both share the 85–264VAC input and -30°C to +70°C rating. Choose the RSP-150-7.5 when load current exceeds 13.5A at 7.5V.
Does the RSP-150-7.5 carry RCM certification for the Australian market?
Yes. The RSP-150-7.5 carries c_rcm certification in addition to BSMI, CB, CCC, CE, EAC, TÜV, and UL. This makes it eligible for deployment in Australia and New Zealand without additional approval steps.
What are the RSP-150 series environmental limits?
All RSP-150 series models, including the RSP-150-7.5, are rated for -30°C to +70°C ambient operation. No IP ingress rating is provided; the unit must be enclosed for protection in wet or dusty environments.
What are all voltage options in the RSP-150 series?
The RSP-150 series voltage options are: RSP-150-3.3 (99W/3.3V/30A), RSP-150-5 (150W/5V/30A), RSP-150-7.5 (150W/7.5V/20A), RSP-150-12 (150W/12V/12.5A), RSP-150-13.5 (151.2W/13.5V/11.2A), RSP-150-15 (150W/15V/10A), RSP-150-24 (151.2W/24V/6.3A), RSP-150-27 (151.2W/27V/5.6A), RSP-150-48 (153.6W/48V/3.2A).
