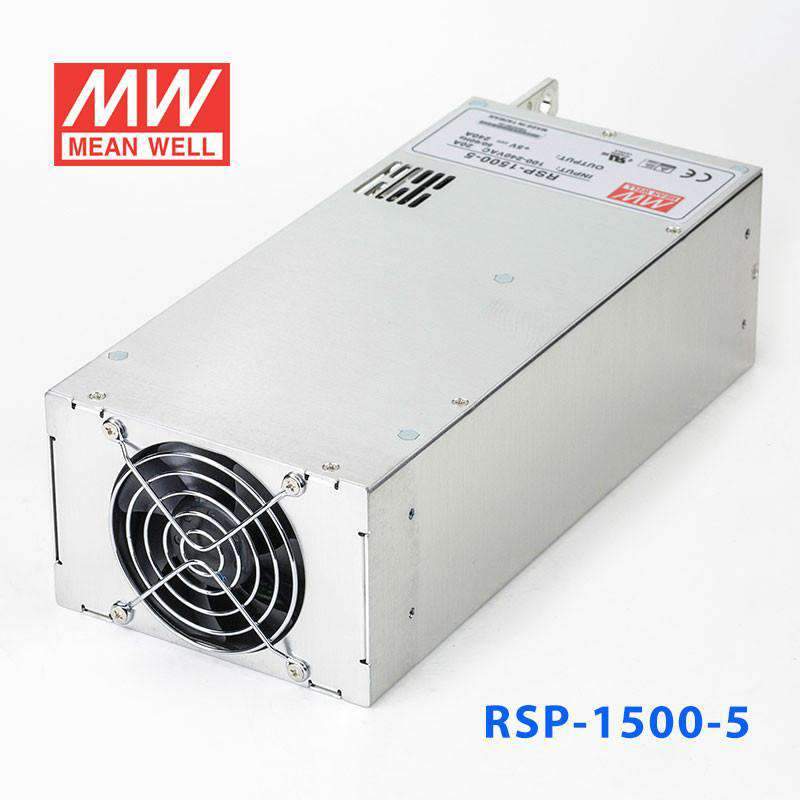

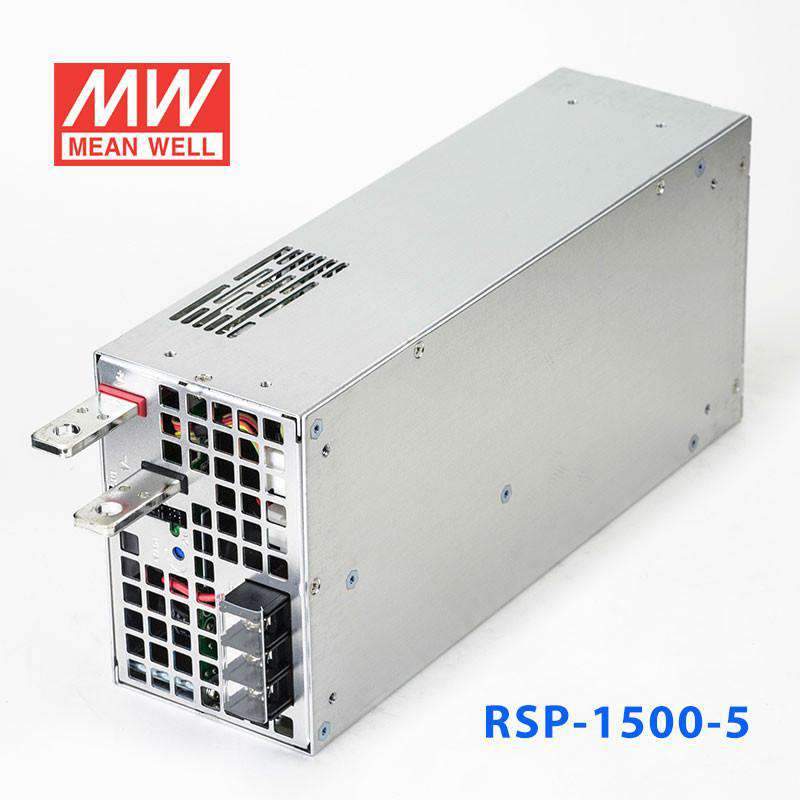

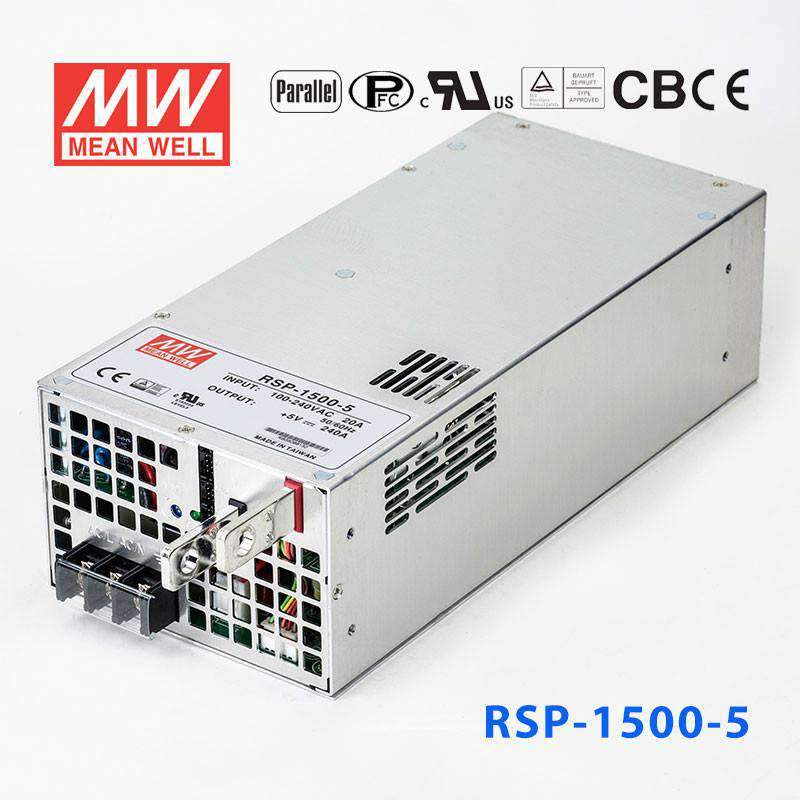

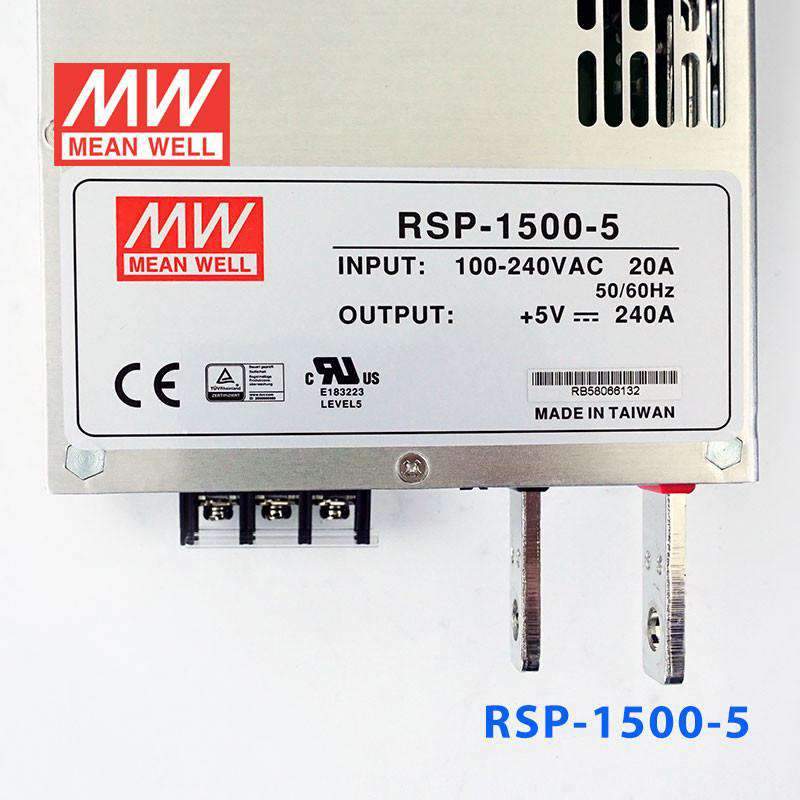

Mean Well RSP-1500-5 Power Supply 1200W 5V

built-in active PFC, high efficiency up to 91%, active current sharing(3+1)
$399.64 USD $411.90
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Vo can be trimmed by external resistor or external control signal
Built-in current sharing
Built-in remote sense and ON/OFF control
Built-in auxiliary power
Alarm signal output
5 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range -30%~+10% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Constant current limiting, shut off after 5 sec., re-power on to recover
Over voltage protection Range 115%~140%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+70°C
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

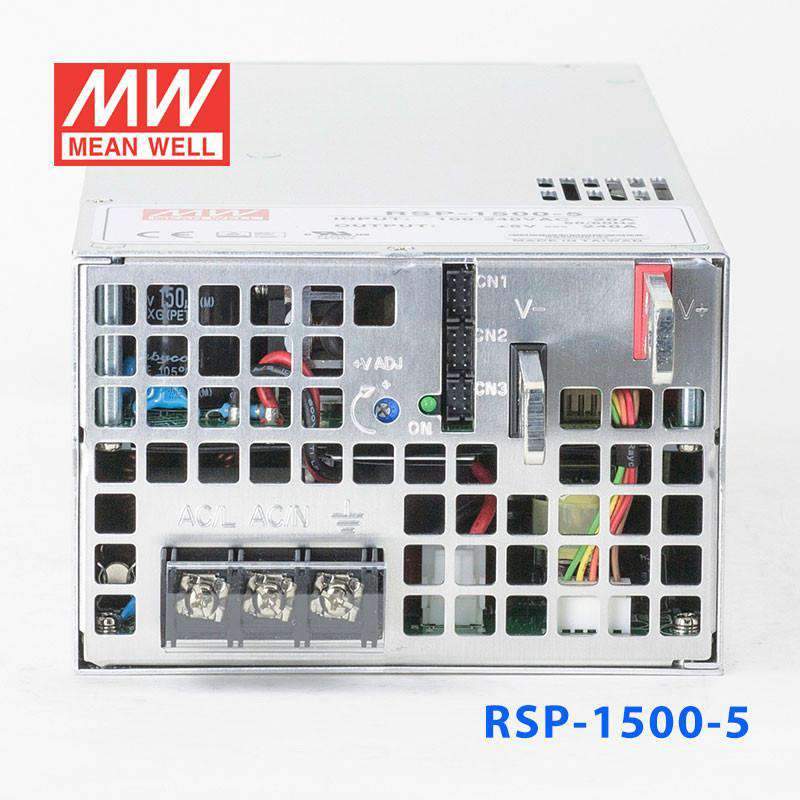

Connection Input 3P/13mm pitch terminal block with cover
Connection Output Copper pillars
Dimension (LxWxH) 278x127x83.5
Case No. 943A
Packing 3.0kg; 4pcs / 13kg / 1.19CUFT

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    1200 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    240 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    5 Year
  • Length
    10.94 in
  • Width
    5 in
  • Height
    3.29 in
  • Weight
    6.61 lb

File Downloads
