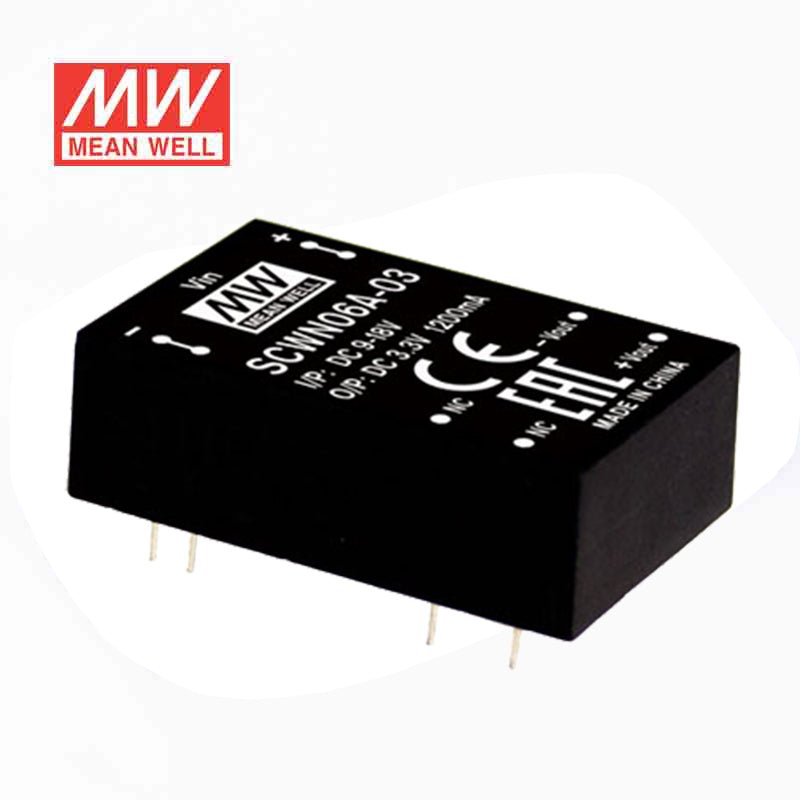

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well SCWN06A-15 DC-DC Converter - 6W 9~18V DC in 15V out
The SCWN06A is a 6W Mean Well power converter (input range: 9~18Vdc, operating temperature: -40~+100℃).
Key Features
- ✓ Input voltage range: 9~18Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+100℃
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.4 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can I use the SCWN06A-15 for a 15V analog or control circuit in industrial equipment?
Yes, it provides a constant-voltage 15V output for low-power electronics when the input source is within 9-18VAC. The load must stay within 0.4A and the 6W maximum output rating.
Is the SCWN06A-15 suitable for embedded systems that need a regulated 15V rail?
It can be used where a compact embedded assembly needs 15V constant voltage from a 9-18VAC source. Its electrical limits are 15V output, 0.4A maximum output current, and 6W power.
Would this converter fit low-power 15V signal-conditioning or instrumentation electronics?
It is a reasonable fit for low-power 15V instrumentation, analog support, or signal-conditioning circuits that do not exceed 0.4A. The constant-voltage operating mode is appropriate when the downstream electronics are designed around a fixed 15V rail.
Can the SCWN06A-15 be used in a compact automation assembly with limited space?
Yes, the body size is 31.8 x 20.3 x 10.2 mm and the weight is 0.0125 kg, which is useful where board area and mass are limited. Its application range is still defined by the 15V output and 0.4A maximum current.
What are the differences between the SCWN06A-15 and the other SCWN06A models?
Each SCWN06A version is rated at 6W and uses the same 9-18VAC input range. The outputs differ by model: SCWN06A-03 is 3.3V at 1.2A, SCWN06A-05 is 5V at 1A, SCWN06A-12 is 12V at 0.5A, and SCWN06A-15 is 15V at 0.4A.
Is the SCWN06A-15 rated for outdoor or extreme-temperature use?
The stated operating temperature range is -40°C to +90°C, so temperature tolerance is broad. There is no IP rating in the provided specs, so outdoor exposure or wet-location suitability is not confirmed.
