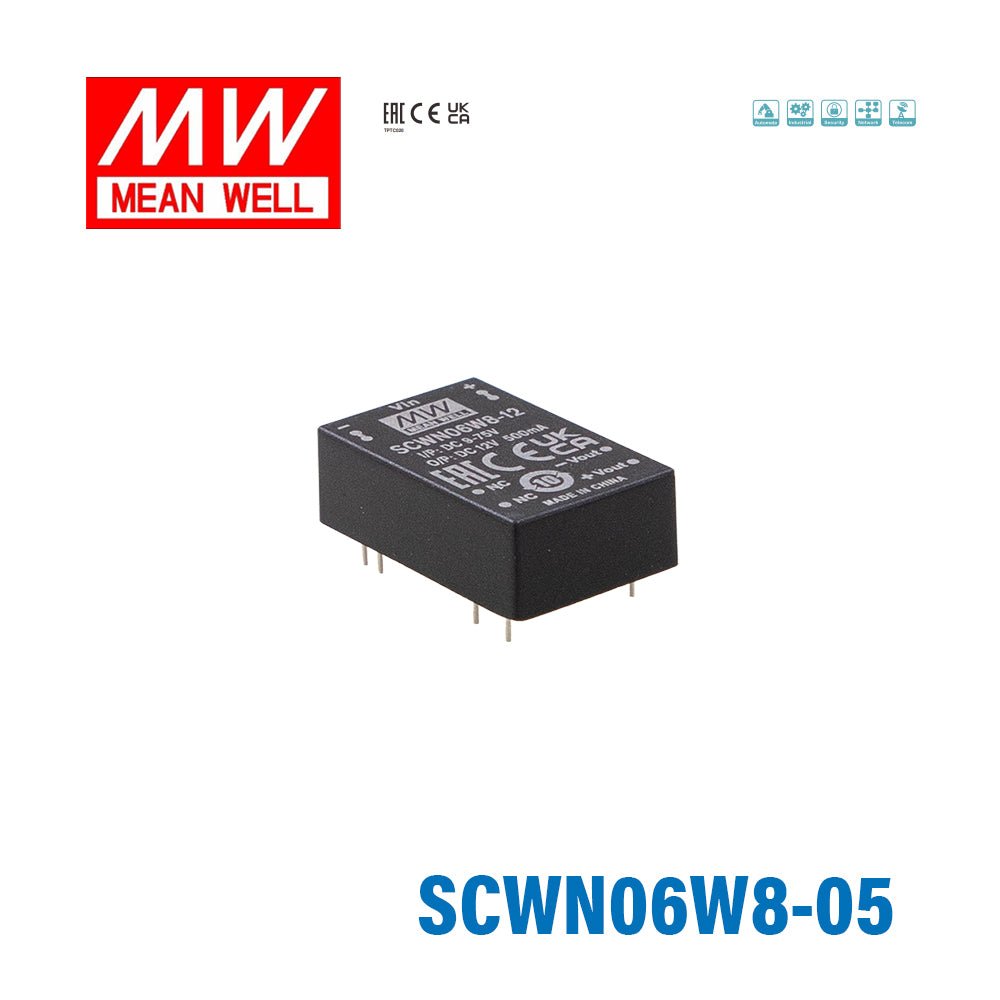

Mean Well SCWN06W8-05 DC-DC Converter - 6W 9~75V DC in 5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SCWN06W8-05 DC-DC Converter - 6W 9~75V DC in 5V out
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +95℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓High efficiency up to 86%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
What are the key electrical specifications of the Mean Well SCWN06W8-05?
The Mean Well SCWN06W8-05 is a 6W DC-DC converter with a regulated 5V DC output. It accepts a very wide 9 to 75V DC input range, which covers multiple nominal DC system voltages. This model is built in a DIP24 package and provides 3KVdc input-to-output isolation.
What types of applications is the SCWN06W8-05 suited for?
This model is suited for industrial and embedded equipment that needs a regulated 5V output from widely varying DC input sources. Its 8:1 ultra-wide input range makes it useful in systems based around nominal 12V, 24V, 36V, 48V, or 72V DC supplies. Buyers typically consider it for OEM designs where input flexibility and compact module format matter.
How wide is the input voltage range on the SCWN06W8-05?
The SCWN06W8-05 accepts 9 to 75V DC input, which Mean Well describes as an 8:1 ultra-wide input range. That gives it more flexibility than converters designed for only a narrow nominal input band. It is intended for applications where source voltage can vary across several common DC bus levels.
Can the SCWN06W8-05 operate in harsh temperature conditions?
Yes. This converter is rated for operation from -40°C to +95°C, making it suitable for demanding temperature environments. That range can be important for industrial equipment, transport-related electronics, and enclosed systems exposed to wider ambient swings.
What protection features are included in the Mean Well SCWN06W8-05?
The SCWN06W8-05 includes protection for short circuit, overload, over voltage, and undervoltage lockout (UVLO). Mean Well lists short-circuit protection as continuous. These features help support product reliability in equipment designs that need fault protection at the power-conversion stage.
Does the SCWN06W8-05 require a minimum load to regulate properly?
No. Mean Well specifies that this model requires no minimum load. That can simplify product selection for applications where load conditions vary or where the converter may spend time under very light load.
Does the SCWN06W8-05 offer EMC and isolation features relevant to OEM equipment?
Yes. Mean Well states that this model complies with BS EN/EN55032 radiated Class B without additional components, and it provides 3KVdc input-to-output isolation. For OEM and industrial buyers, those are meaningful features when evaluating converter suitability for electrically sensitive equipment.
What warranty comes with the Mean Well SCWN06W8-05?
The SCWN06W8-05 includes a 3-year warranty from Mean Well. For buyers comparing compact DC-DC modules, that warranty period can be a useful indicator of intended long-term service and manufacturer support.
