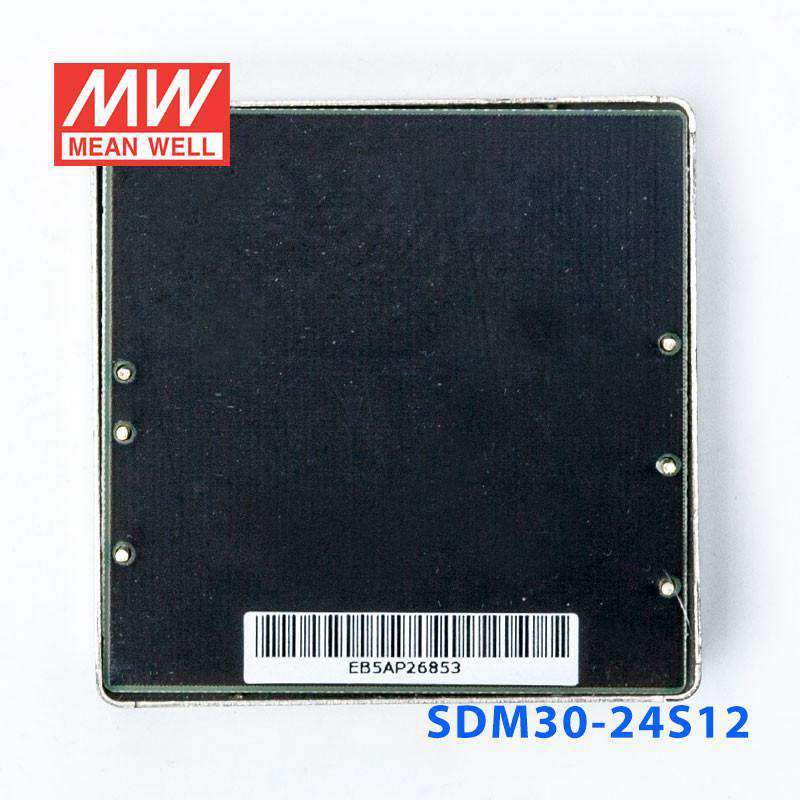

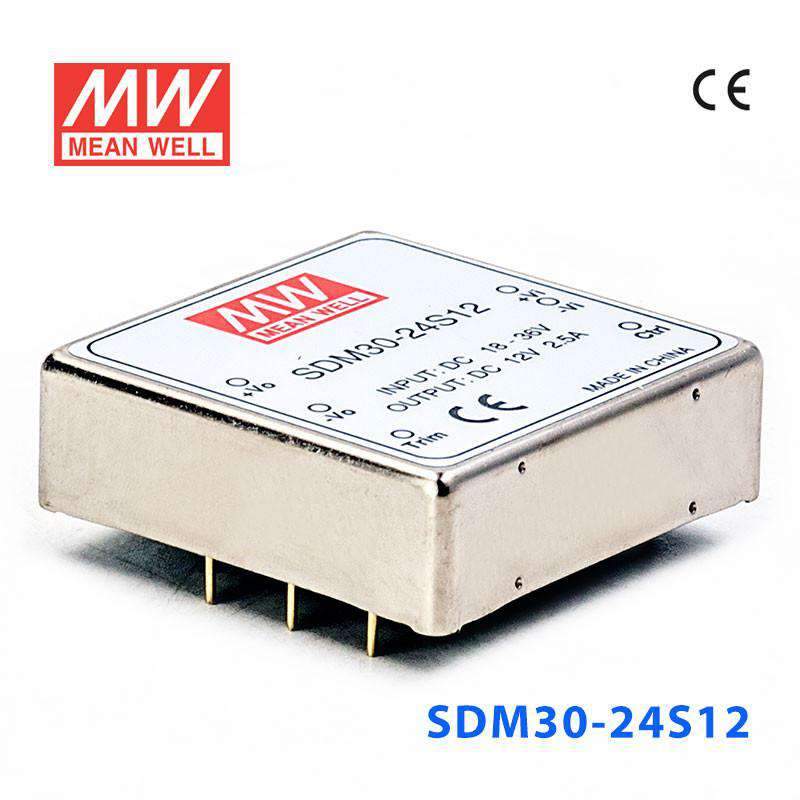

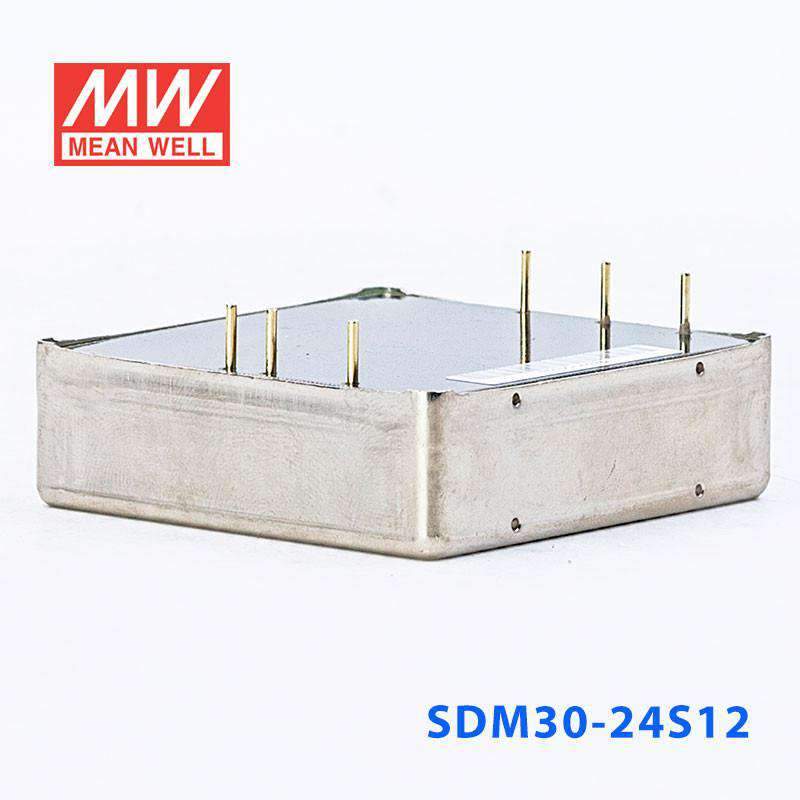

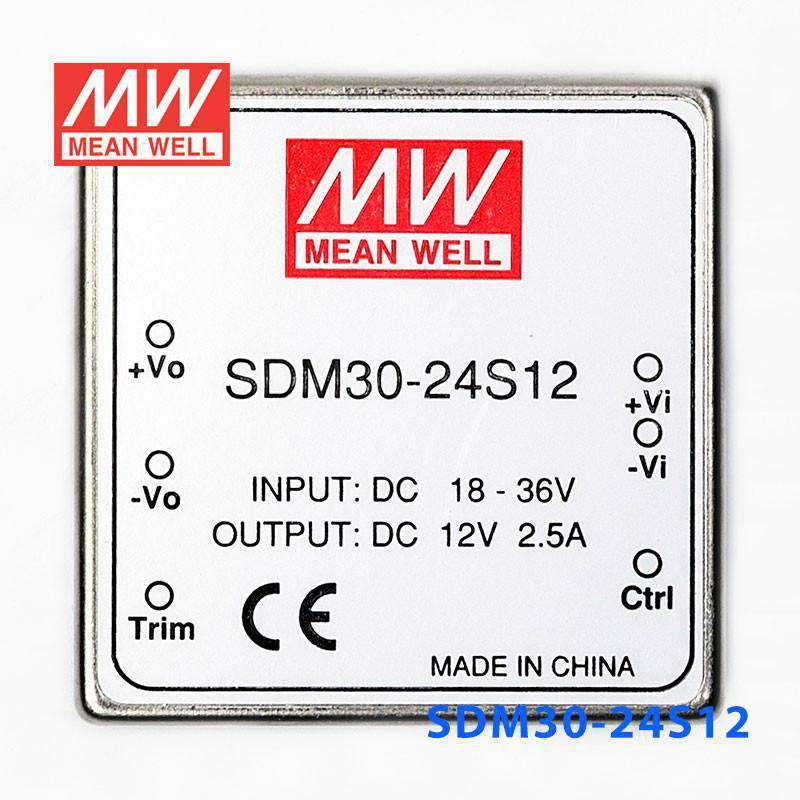

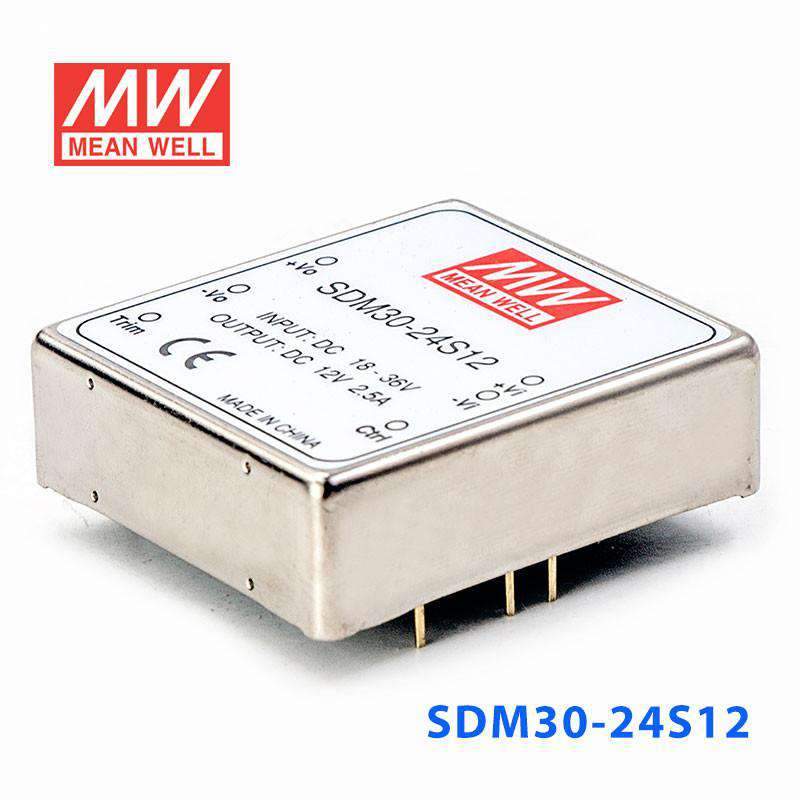

Mean Well SDM30-24S12 DC-DC Converter - 30W - 18~36V in 12V out
Description
Description
Features
- Wide 2:1 DC input range
- In/out capacitance 1000pF
- Protections: Short circuit / Over current / Over voltage / Over temperature
- 1000 DC I/O isolation for D/D
- Built-in remote ON/OFF control
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 225KHz
- Low cost
- High relibility
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDM Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.63 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SDM30-24S12 for 12V industrial control loads on equipment with 24V-class AC available?
Yes, when the source is within the stated 18-36VAC input range and the load needs constant 12V within 30W and 2.5A. That makes it suitable for regulated 12V control loads in industrial and automation systems that stay inside those limits.
Is the SDM30-24S12 a fit for 12V relays, sensors, or interface modules in automation panels?
It can be, provided the combined 12V load does not exceed 2.5A or 30W. Its constant-voltage 12V output is intended for loads that need a stable 12V rail from an 18-36VAC input source.
Can this model support a small 12V HMI or display subsystem?
It is appropriate for 12V electronics that operate within the converter's 30W maximum output and 2.5A current rating. Buyers should match the display subsystem's 12V demand to those published limits.
Is the SDM30-24S12 suitable for indoor-only use, or can it handle wider temperature conditions?
The operating temperature range is listed as -25°C to +85°C, so it is specified for a wide temperature span. The provided specs do not include an IP rating, so these specs do not confirm exposed outdoor or wet-location suitability by themselves.
What are the main differences between the SDM30-24S12 and the other SDM30 siblings?
Across the listed siblings, the series includes 3.3V models at 16.5W and 5A, 5V models at 25W and 5A, 12V models at 25.2W and 2.1A or 30W or 35W at 2.5A, and 15V models at 25.5W and 1.7A or 30W at 2A. Input groups are 9.2-18V for 12S, 18-36V for 24S, and 36-75V for 48S, with the SDM30-24S12 being the 12V, 30W, 2.5A version in the 18-36V input family.
