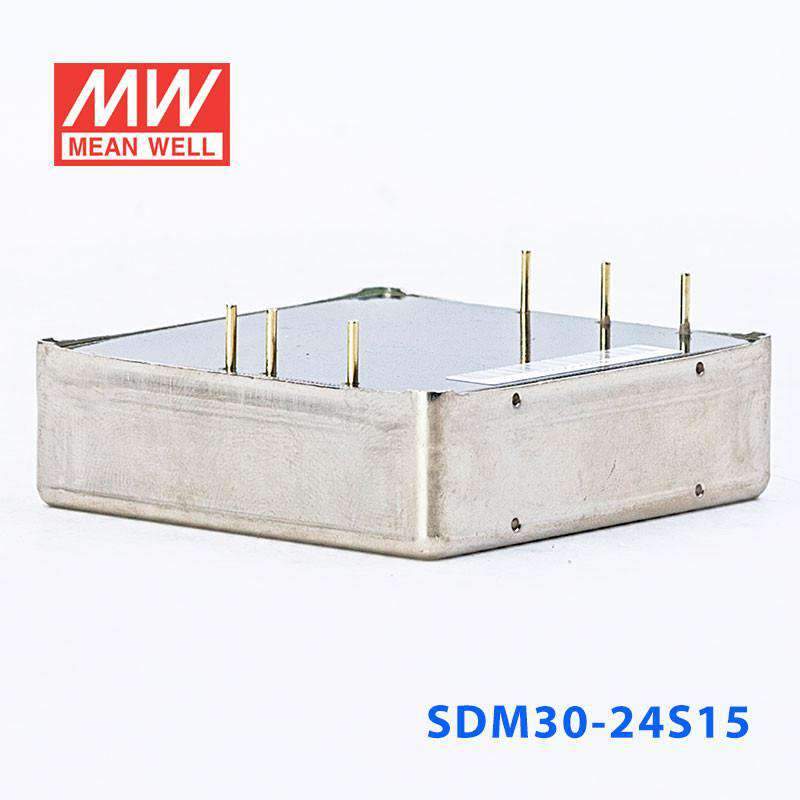

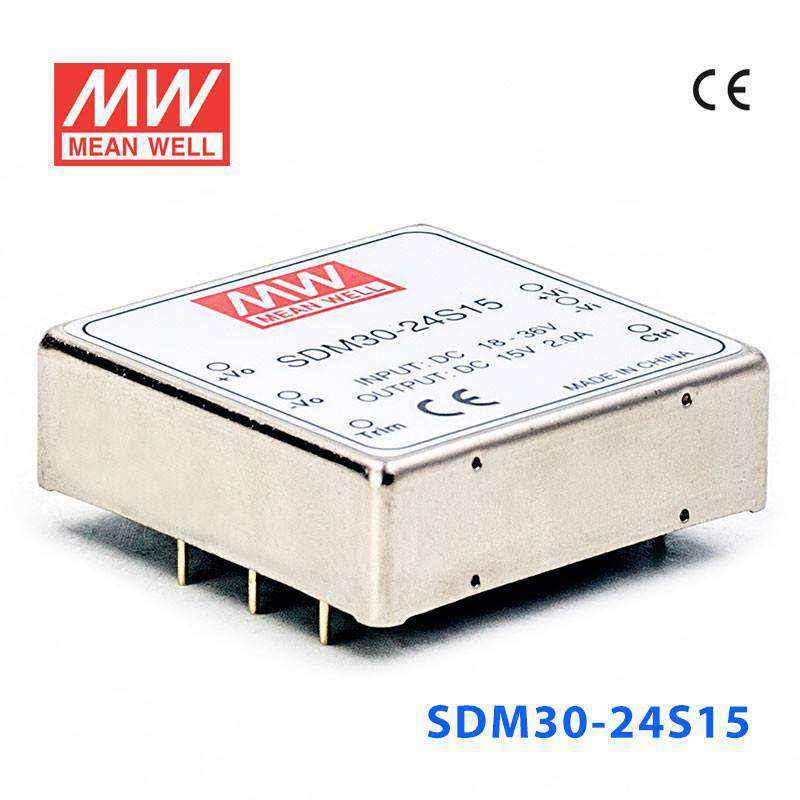

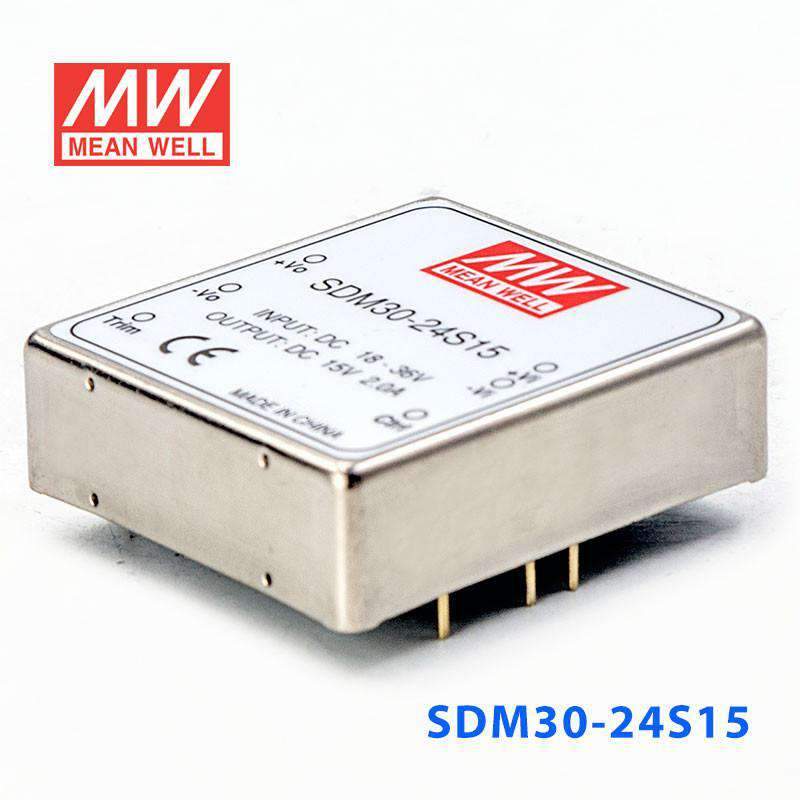

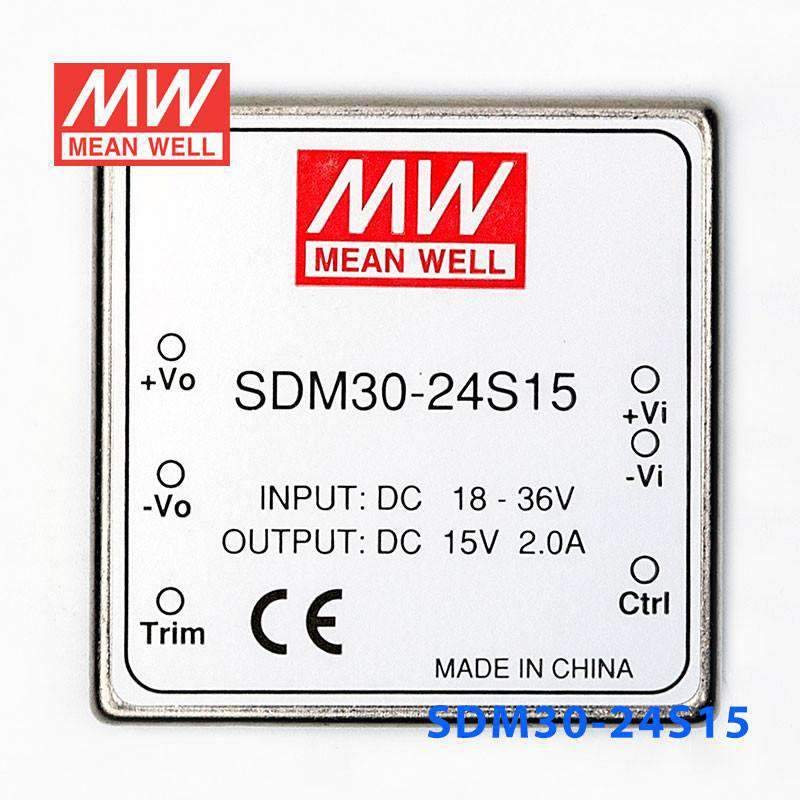

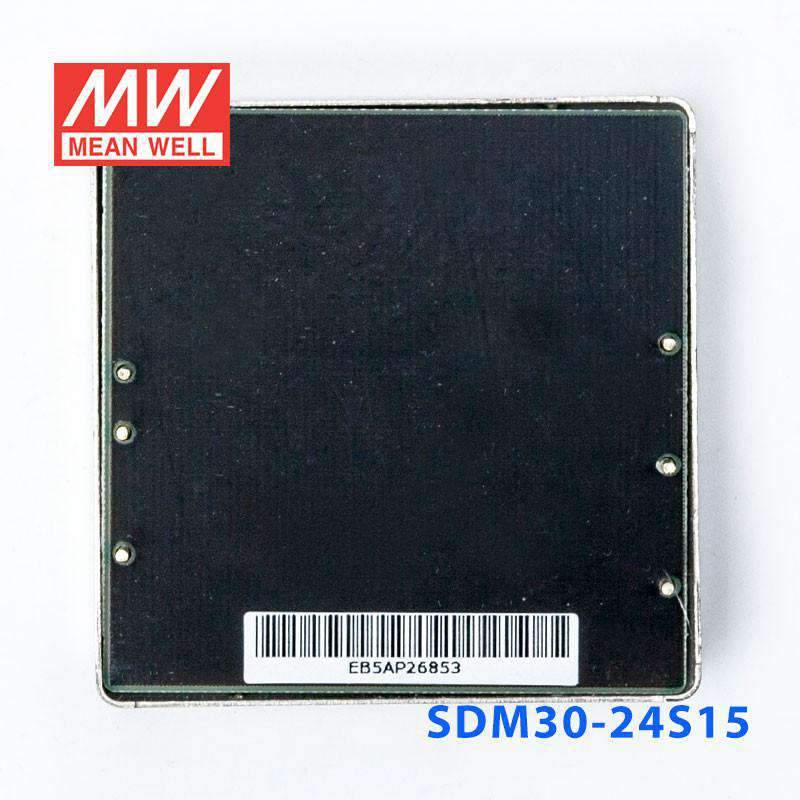

Mean Well SDM30-24S15 DC-DC Converter - 30W - 18~36V in 15V out
Description
Description
Features
- Wide 2:1 DC input range
- In/out capacitance 1000pF
- Protections: Short circuit / Over current / Over voltage / Over temperature
- 1000 DC I/O isolation for D/D
- Built-in remote ON/OFF control
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 225KHz
- Low cost
- High relibility
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDM Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.63 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SDM30-24S15 for 15V industrial instrumentation or control electronics from a 24V-class AC source?
Yes, if the source falls within the listed 18-36VAC input range and the 15V load stays within 30W and 2A. Its constant-voltage 15V output fits industrial or embedded electronics that specifically require a regulated 15V rail in that range.
Is the SDM30-24S15 suitable for 15V analog or interface boards in automation equipment?
It can be used where those boards need a constant 15V output and the total draw does not exceed 2A or 30W. The published specs make it a fit for moderate-power 15V subsystems powered from 18-36VAC input.
Can this converter power a compact 15V communications or monitoring module?
It is intended for 15V loads that remain inside its 30W output rating and 2A maximum output current. For compact monitoring or communications electronics that need regulated 15V, those are the key limits to check.
Does the SDM30-24S15 support outdoor environments or temperature-sensitive locations?
The unit is rated for operation from -25°C to +85°C, so the temperature specification is broad. The provided product specs do not list an IP rating, so outdoor exposure or wet-area suitability is not established by these specs alone.
How does the SDM30-24S15 differ from other SDM30 models in the family?
The sibling list includes 3.3V outputs at 16.5W and 5A, 5V outputs at 25W and 5A, 12V outputs at 25.2W and 2.1A or 30W or 35W at 2.5A, and 15V outputs at 25.5W and 1.7A or 30W at 2A. The family is also split by input range into 9.2-18V, 18-36V, and 36-75V groups, and this model is the 18-36V input, 15V output, 30W, 2A version.
