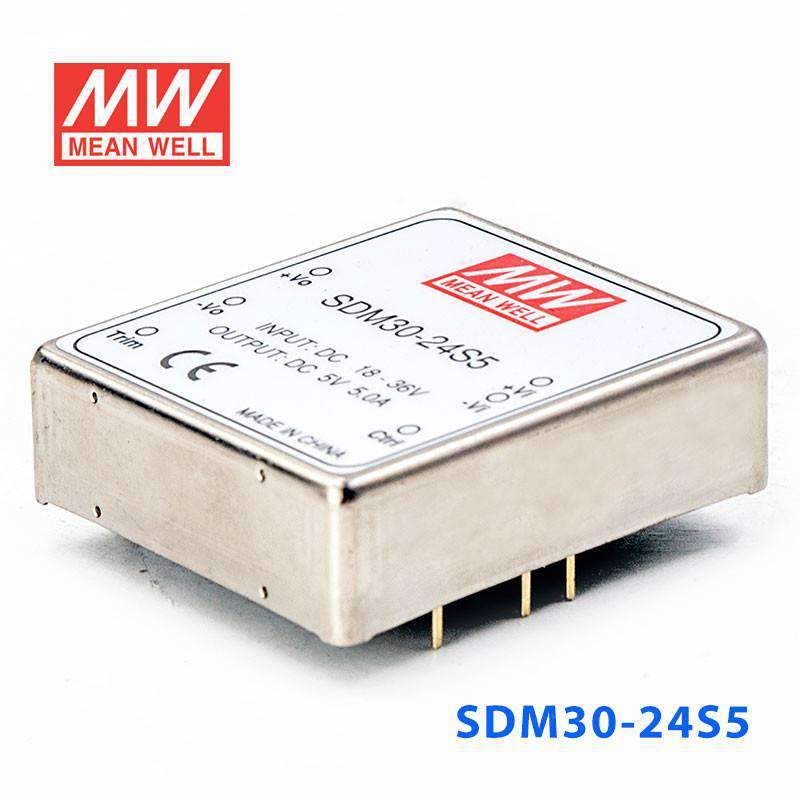

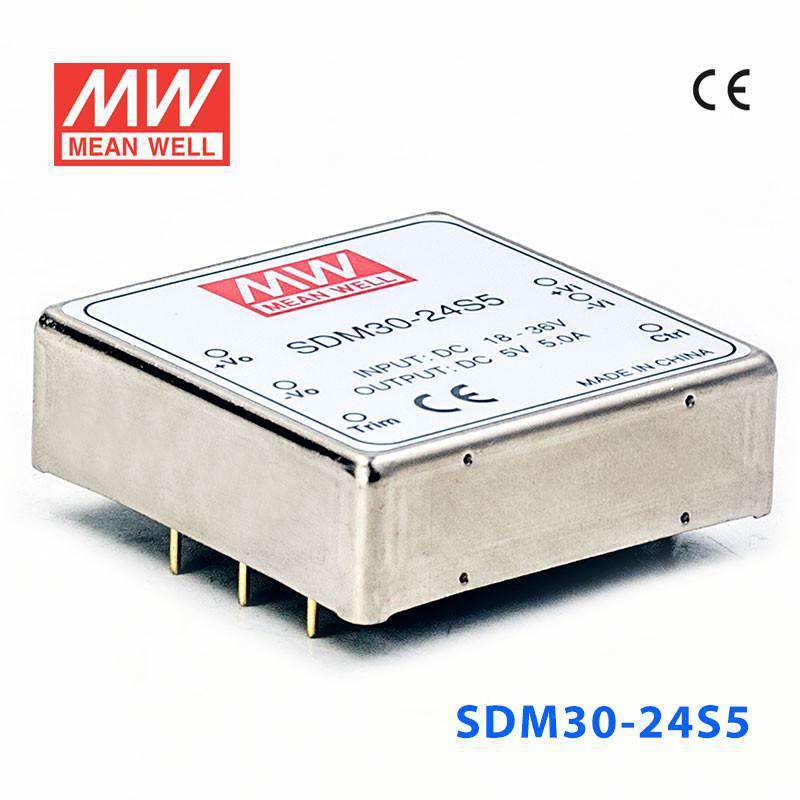

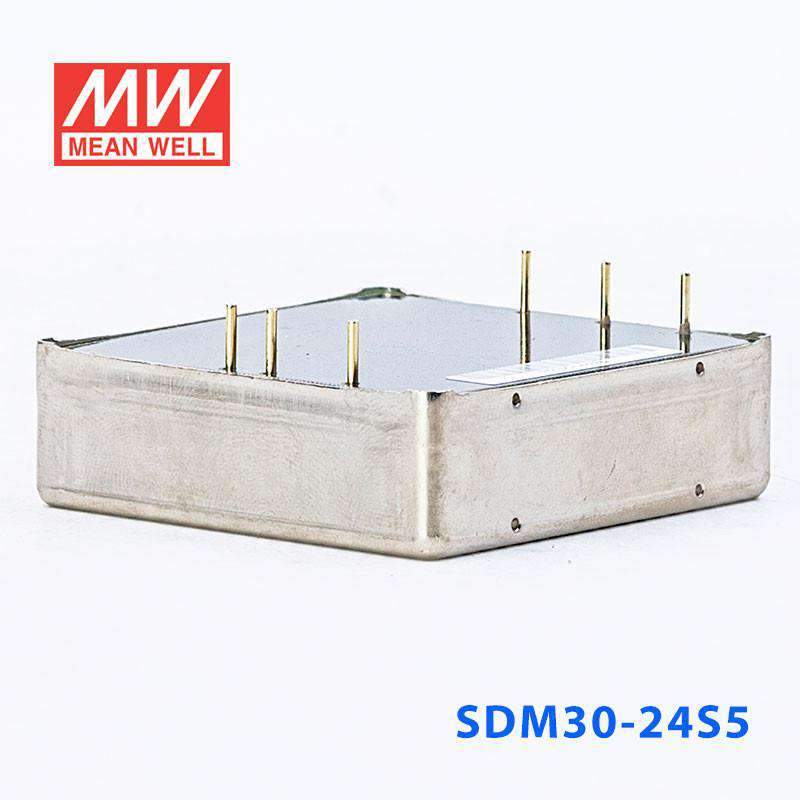

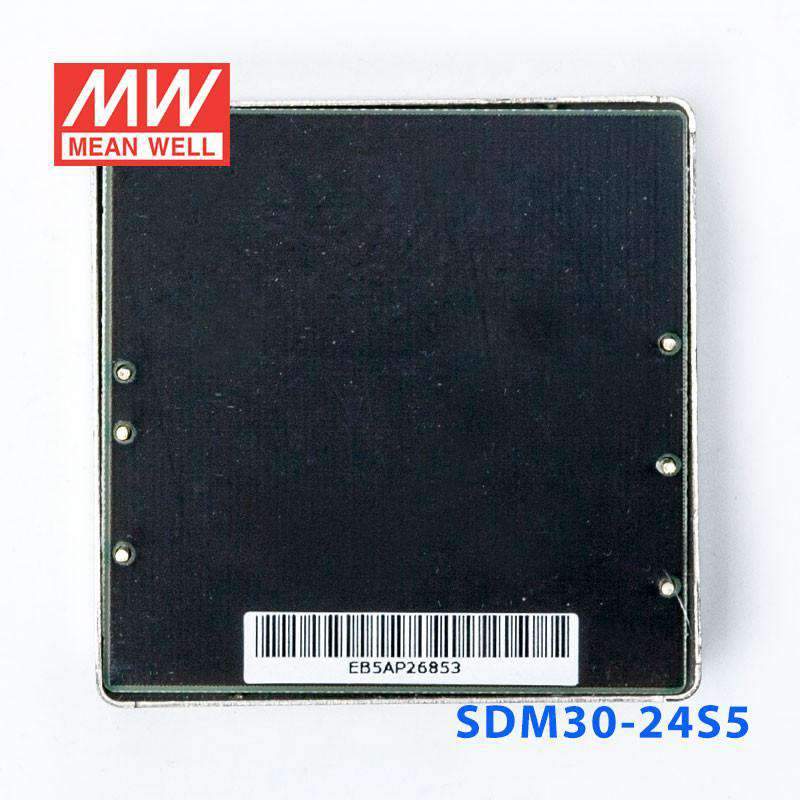

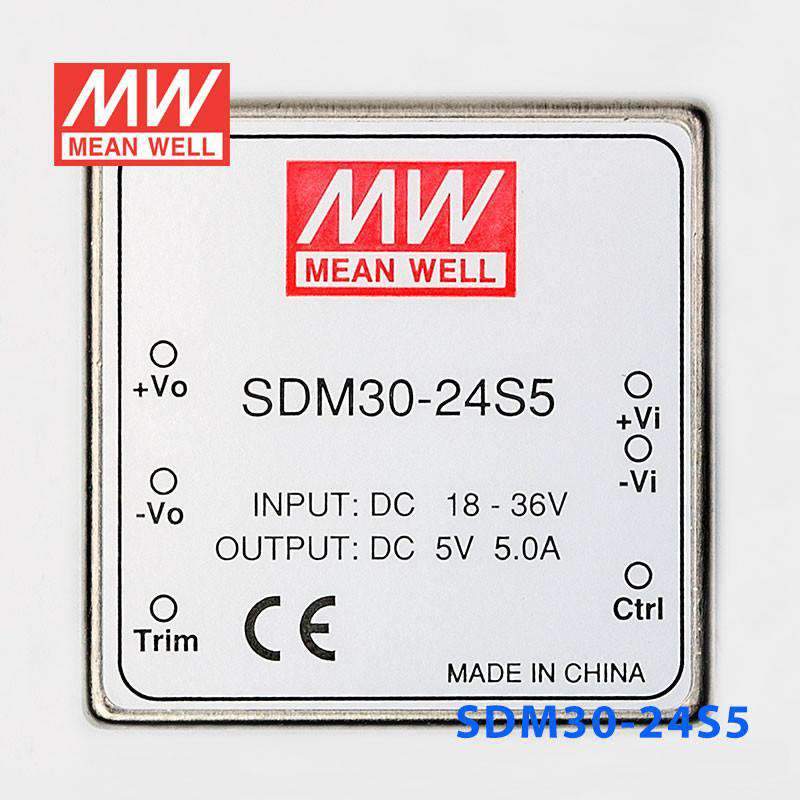

Mean Well SDM30-24S5 DC-DC Converter - 25W - 18~36V in 5V out
Description
Description
Features
- Wide 2:1 DC input range
- In/out capacitance 1000pF
- Protections: Short circuit / Over current / Over voltage / Over temperature
- 1000 DC I/O isolation for D/D
- Built-in remote ON/OFF control
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 225KHz
- Low cost
- High relibility
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDM Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.63 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SDM30-24S5 to power 5V embedded or automation electronics from a 24V-class AC source?
Yes, if the source is within the specified 18-36VAC input range and the load needs constant 5V within 25W and 5A. That makes it suitable for 5V embedded and automation electronics that need a regulated low-voltage rail from that input range.
Is the SDM30-24S5 suitable for 5V control logic or industrial communication modules?
It can be used for 5V control and communications electronics when the total output stays within 5A and 25W. The model is rated for constant-voltage 5V output, which is the relevant requirement for those types of loads.
Can this converter support 5V loads that need more current than smaller logic supplies provide?
Yes, this version provides up to 5A at 5V, so it suits higher-current 5V loads within a 25W envelope. Buyers should confirm that the combined demand of the target electronics does not exceed either of those published limits.
How well does the SDM30-24S5 handle temperature extremes, and is it outdoor rated?
The operating temperature range is listed as -25°C to +85°C, which covers a broad temperature span. The provided specs do not state an IP rating, so outdoor or wet-environment suitability is not established from this product data alone.
How does the SDM30-24S5 compare with the rest of the SDM30 series?
The sibling lineup includes 3.3V models at 16.5W and 5A, 5V models at 25W and 5A, 12V models at 25.2W and 2.1A or 30W or 35W at 2.5A, and 15V models at 25.5W and 1.7A or 30W at 2A. It also spans 9.2-18V, 18-36V, and 36-75V input groups, and the SDM30-24S5 is the 18-36V input, 5V output, 25W, 5A variant.
