Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

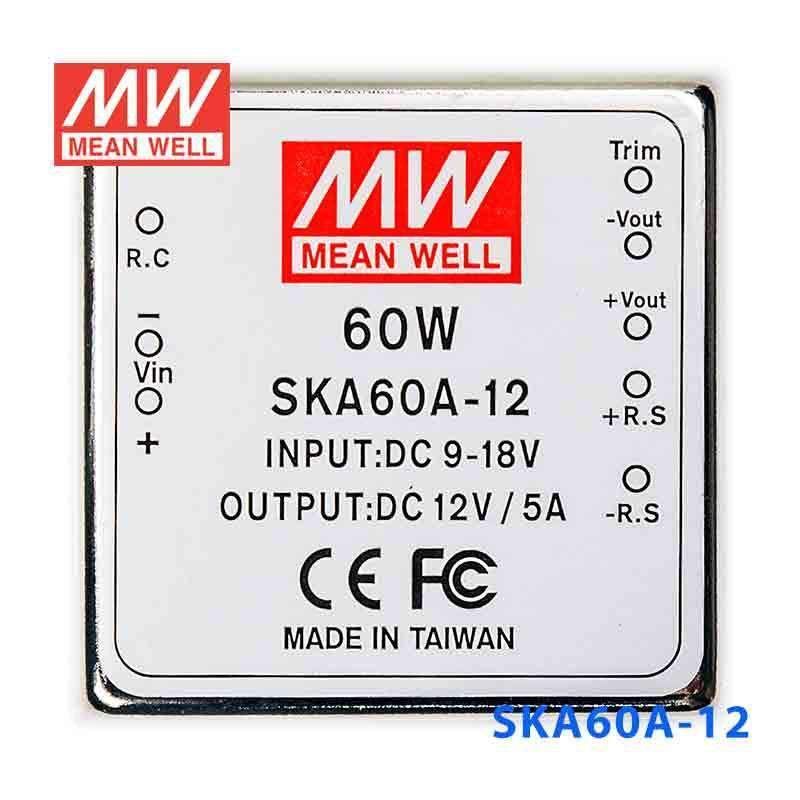

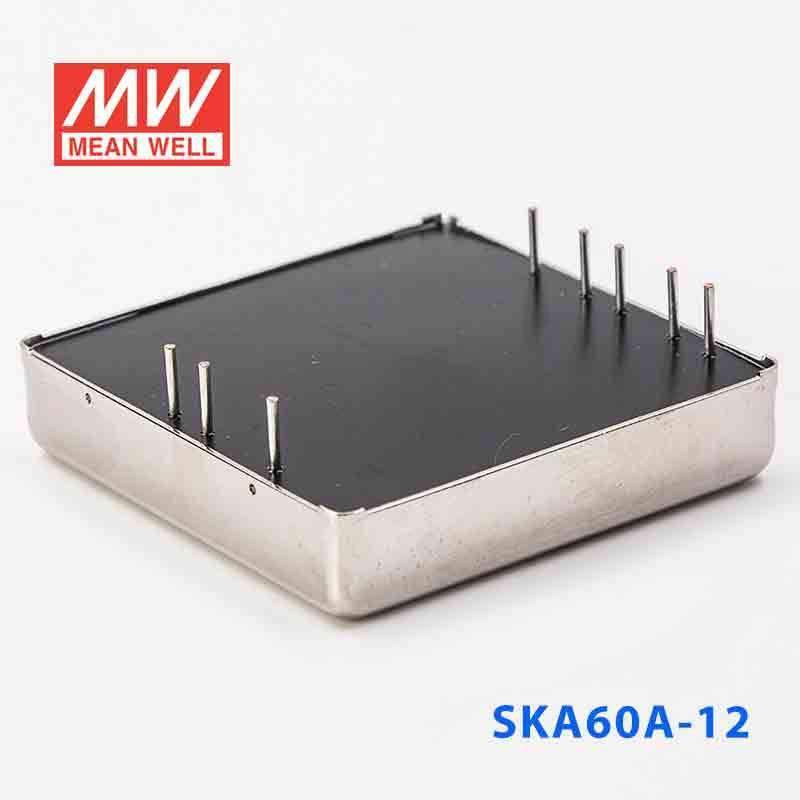

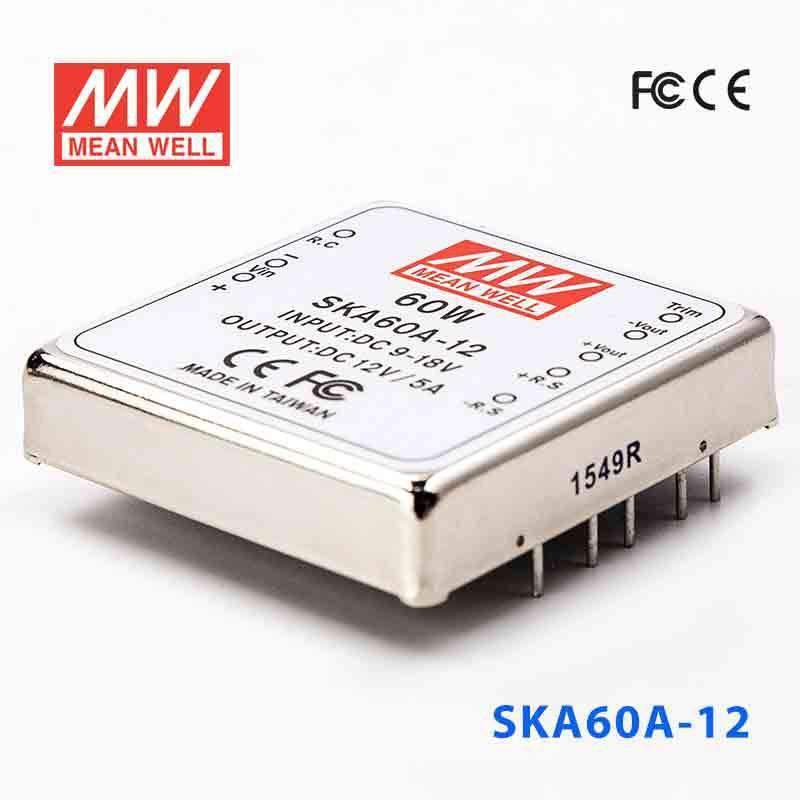

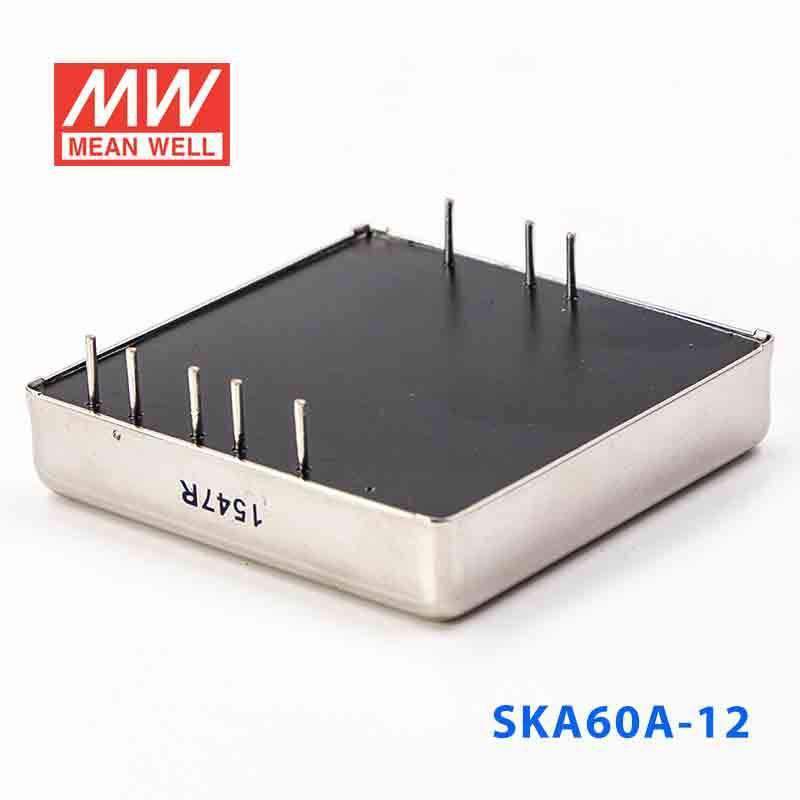

Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out
$51.42 USD
Unit price /
Unavailable
Description
Description
Features
| 2"x2" compact size |
| 2:1 wide input range |
| High efficiency up to 93% |
| 1500VDC I/O isolation |
| Built-in remote ON/OFF control |
| Built-in remote sense |
| Trimming output ±10% |
| Comply with CE / FCC without external components |
| Protection: Short circuit / Overload / Input and Output Over voltage |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full burn-in test |
| Low cost, high reliability |
| Output 3.3V available |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2.0% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | ±0.5% |
| Overload protection | 110%~250%, auto-recovery |
| Efficiency | 91% ; 90.5% ; 92% | 92% ; 92.5% ; 92% | 92% ; 93% ; 92.5% |
| Short circuit protection | Protection type: Hiccup mode, recovers automatically after the fault condition is removed |
| I/O isolation resistance | I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -40~+70°C (refer to output derating curve) |
| Storage temperature | -55 ~ +105°C, 10 ~ 95% RH |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ±0.03% /°C (0 ~ 50°C) |
| Dimension (LxWxH) (mm) | 50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.15 lb
