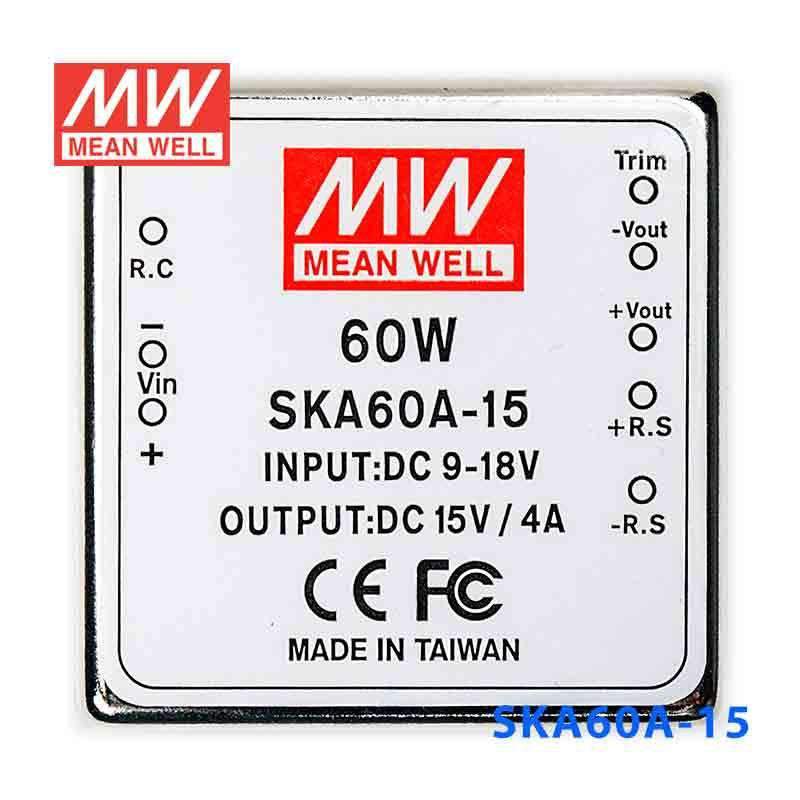

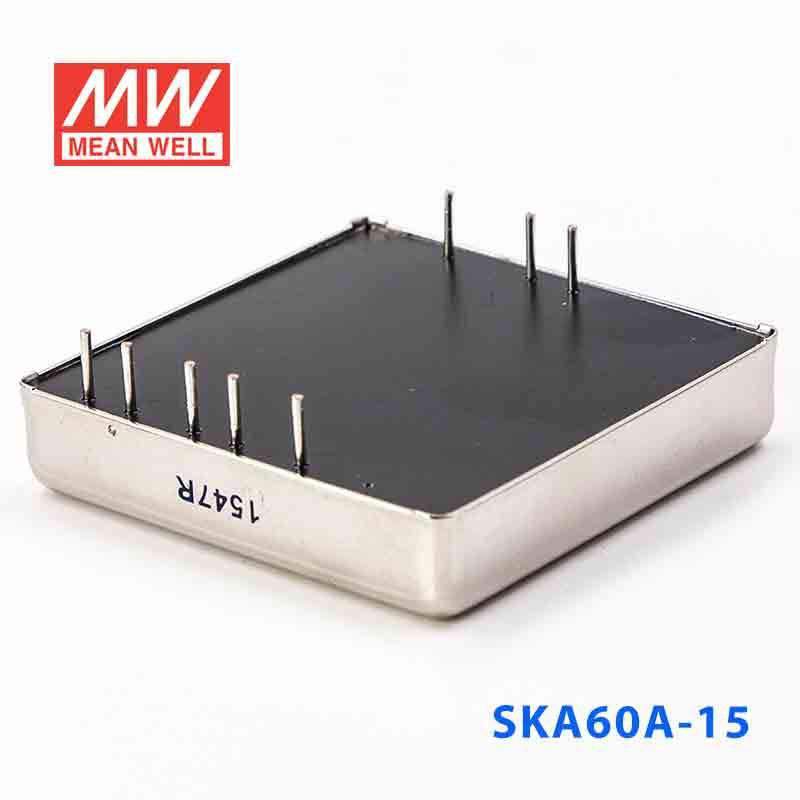

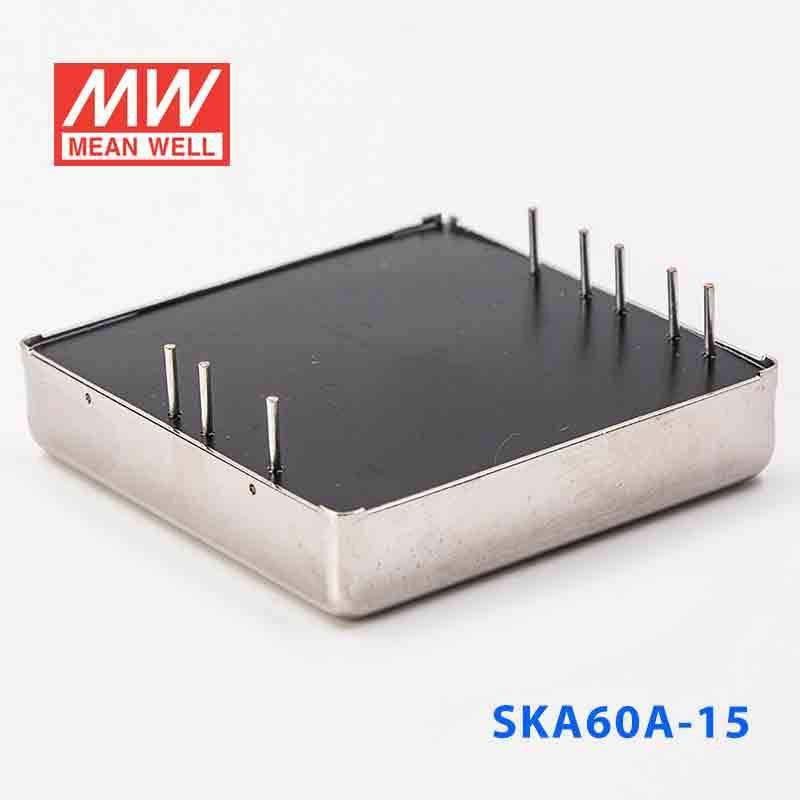

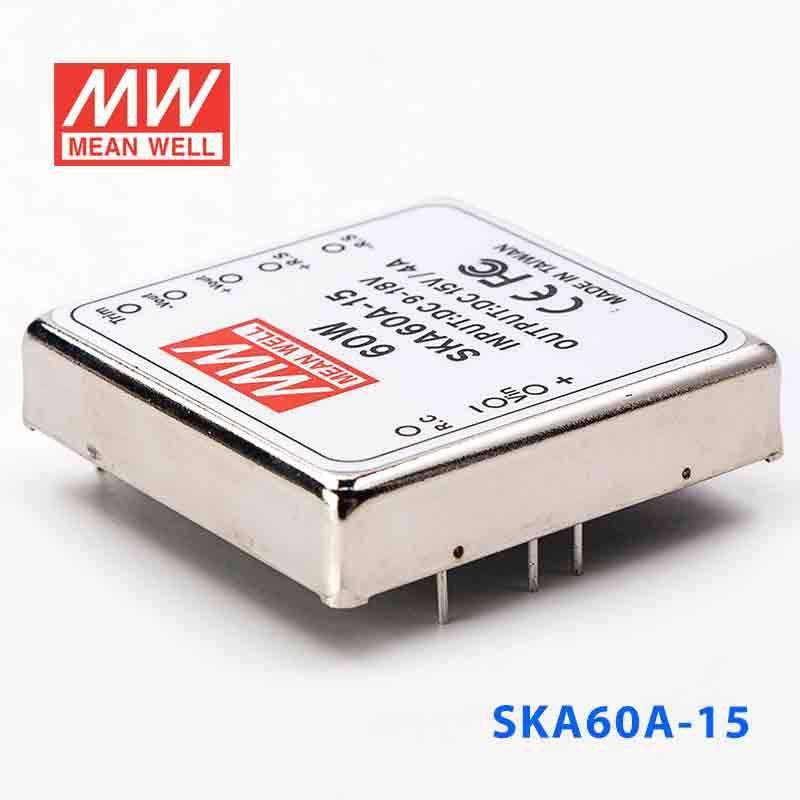

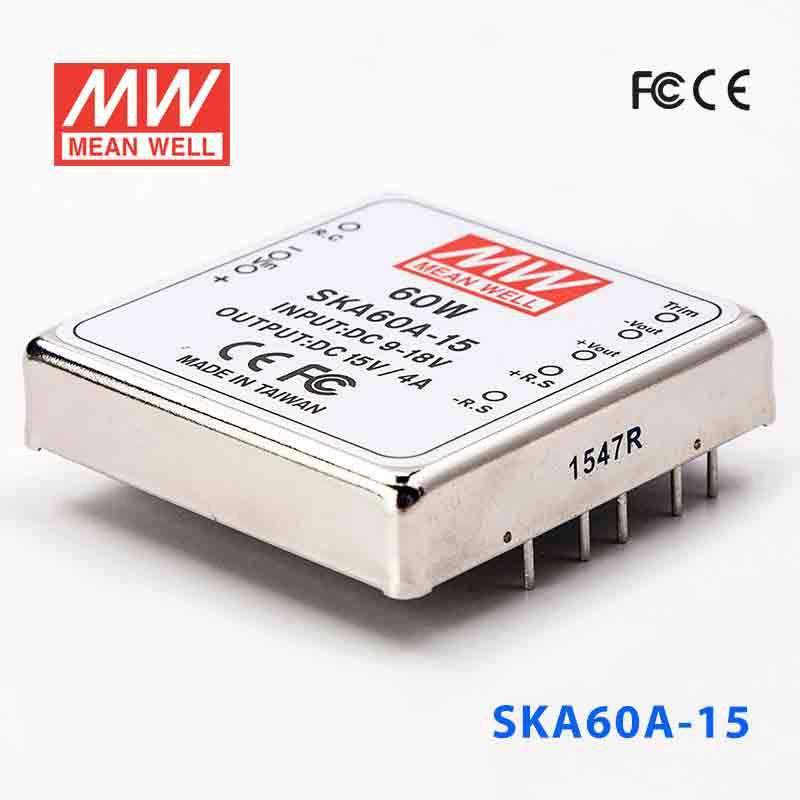

Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out

$51.41 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2"x2" compact size
2:1 wide input range
High efficiency up to 93%
1500VDC I/O isolation
Built-in remote ON/OFF control
Built-in remote sense
Trimming output ±10%
Comply with CE / FCC without external components
Protection: Short circuit / Overload / Input and Output Over voltage
Cooling by free air convection
Six-sided shield metal case
100% full burn-in test
Low cost, high reliability
Output 3.3V available
2 years warranty

General Specification

Voltage set point accuracy ±2.0% (max.)
Line regulation ±0.5% (max.)
Load regulation ±0.5%
Overload protection 110%~250%, auto-recovery
Efficiency 91% ; 90.5% ; 92% | 92% ; 92.5% ; 92% | 92% ; 93% ; 92.5%
Short circuit protection Protection type: Hiccup mode, recovers automatically after the fault condition is removed
I/O isolation resistance I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature -40~+70°C (refer to output derating curve)
Storage temperature -55 ~ +105°C, 10 ~ 95% RH
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient ±0.03% /°C (0 ~ 50°C)
Dimension (LxWxH) (mm) 50.8 x 50.8 x 11.0 mm or 2" x 2" x 0.43" inch
Case material Six-sided shield metal case

Specifications

  • Brand
    Mean Well
  • Series
    SKA Series
  • Power Rating
    60 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    9V~18V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    2 in
  • Height
    0.43 in
  • Weight
    0.15 lb
