Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

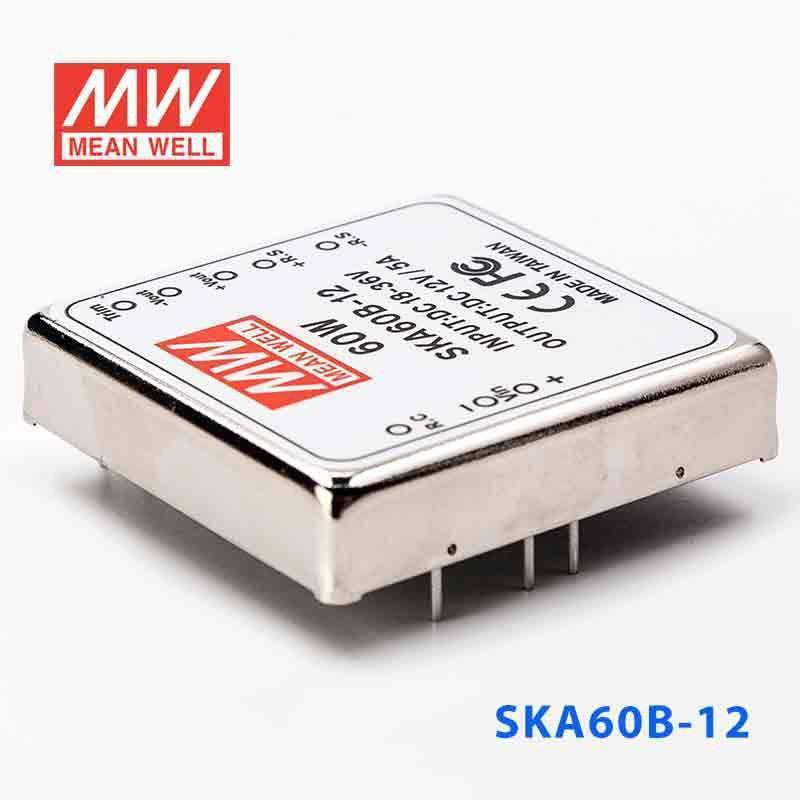

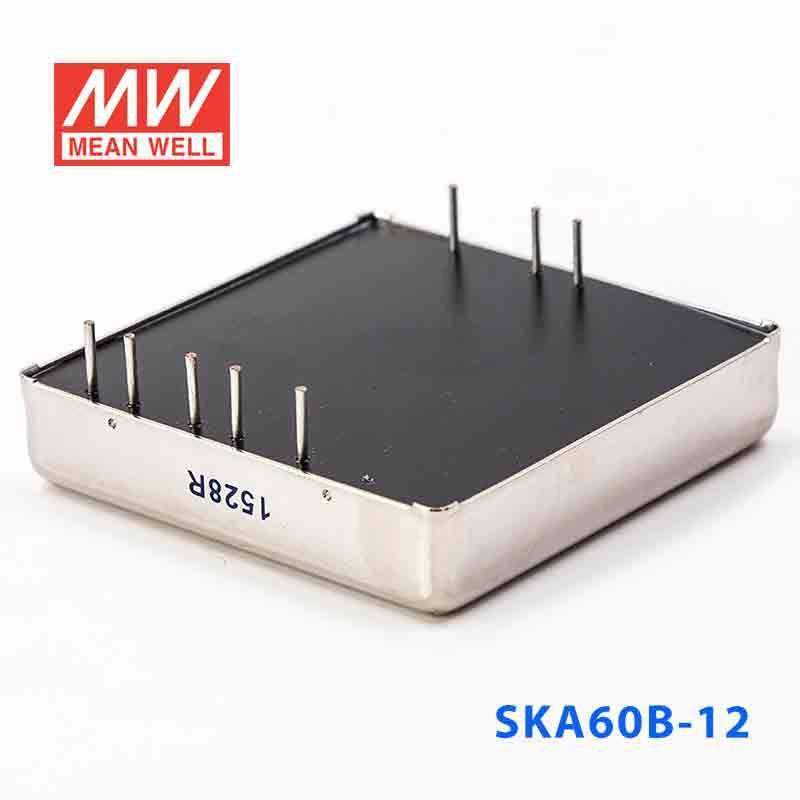

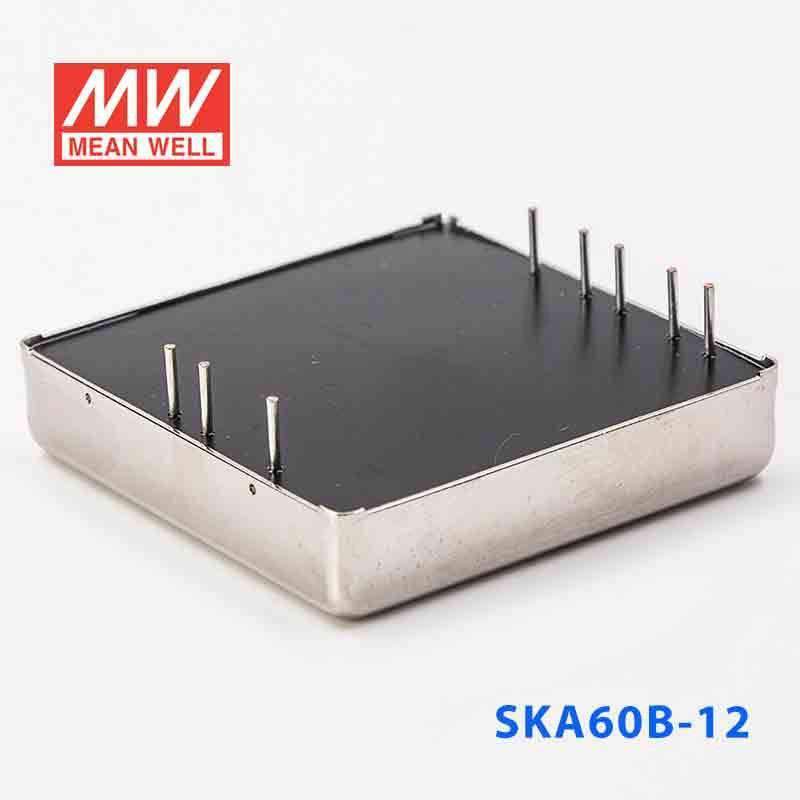

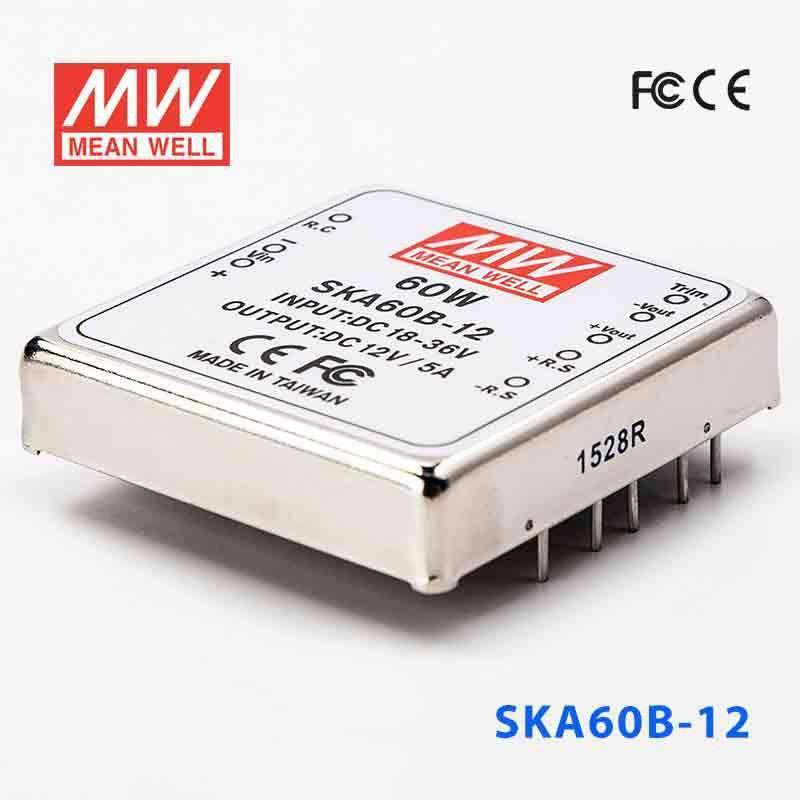

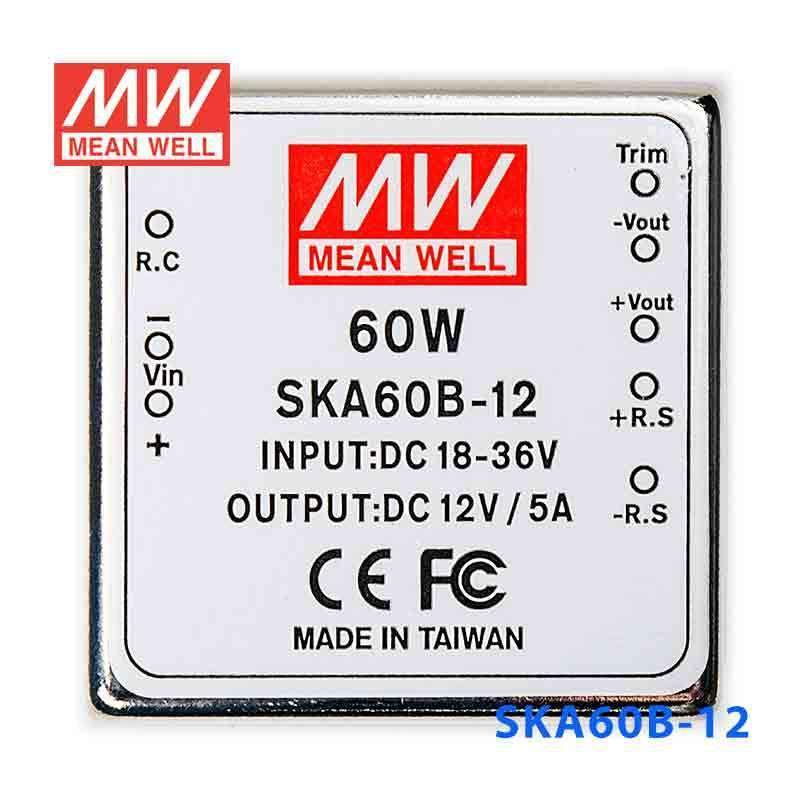

Mean Well SKA60B-12 DC-DC Converter - 60W - 18~36V in 12V out
The SKA60B is a 60W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.15 lb
::specification::
Frequently Asked Questions
Can I use the SKA60B-12 for 12V automation controls powered from an 18-36VAC source?
Yes. This model accepts 18-36VAC input and delivers a constant 12V output rated at 5A and 60W. It is appropriate for 12V automation controls or panel devices that require regulated 12V power.
Is the SKA60B-12 suitable for 12V monitoring, signaling, or control electronics?
It can be used for 12V monitoring, signaling, or control electronics when the load needs constant-voltage 12V power. The available output is up to 5A with 60W total capacity.
Can this converter power 12V subsystems in compact industrial equipment?
Yes. Its 50.8 x 50.8 x 11.0 mm size and 0.067 kg weight help when equipment space is tight. Electrically, it is a 12V constant-voltage converter with 18-36VAC input and 5A output capability.
Is the SKA60B-12 rated for demanding temperature conditions?
The operating temperature range is -40C to +70C, so it is specified for wide temperature variation. No IP rating is provided in the listed specs, so indoor, outdoor, or exposed-environment suitability cannot be confirmed beyond the temperature data.
How does SKA60B-12 compare with the other SKA60B versions?
All SKA60B models are rated at 60W and use 18-36VAC input. The SKA60B-12 provides 12V at 5A, while the SKA60B-05 provides 5V at 12A and the SKA60B-15 provides 15V at 4A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SKA60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SKA60C-15 DC-DC Converter - 60W - 36~75V in 15V out | 60W | 15V | 4A | Indoor | $51.41 | View |
| Mean Well SKA60C-12 DC-DC Converter - 60W - 36~75V in 12V out | 60W | 12V | 5A | Indoor | $51.41 | View |
| Mean Well SKA60C-05 DC-DC Converter - 60W - 36~75V in 5V out | 60W | 5V | 12A | Indoor | $51.41 | View |
| Mean Well SKA60B-15 DC-DC Converter - 60W - 18~36V in 15V out | 60W | 15V | 4A | Indoor | $51.41 | View |
| Mean Well SKA60B-05 DC-DC Converter - 60W - 18~36V in 5V out | 60W | 5V | 12A | Indoor | $51.41 | View |
| Mean Well SKA60A-15 DC-DC Converter - 60W - 9~18V in 15V out | 60W | 15V | 4A | Indoor | $51.41 | View |
| Mean Well SKA60A-12 DC-DC Converter - 60W - 9~18V in 12V out | 60W | 12V | 5A | Indoor | $51.42 | View |
| Mean Well SKA60A-05 DC-DC Converter - 60W - 9~18V in 5V out | 60W | 5V | 12A | Indoor | $51.41 | View |
