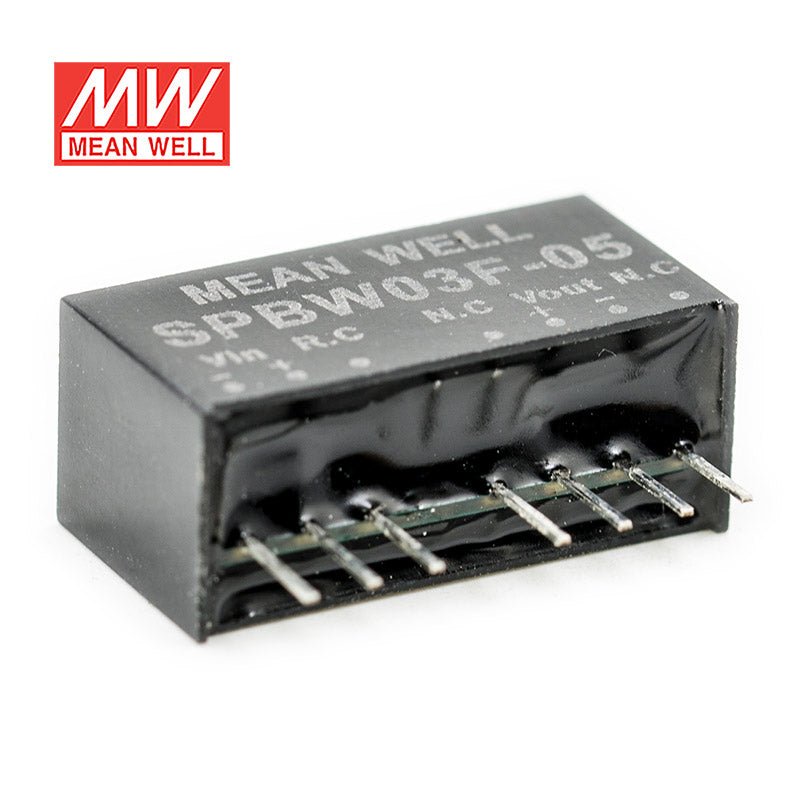

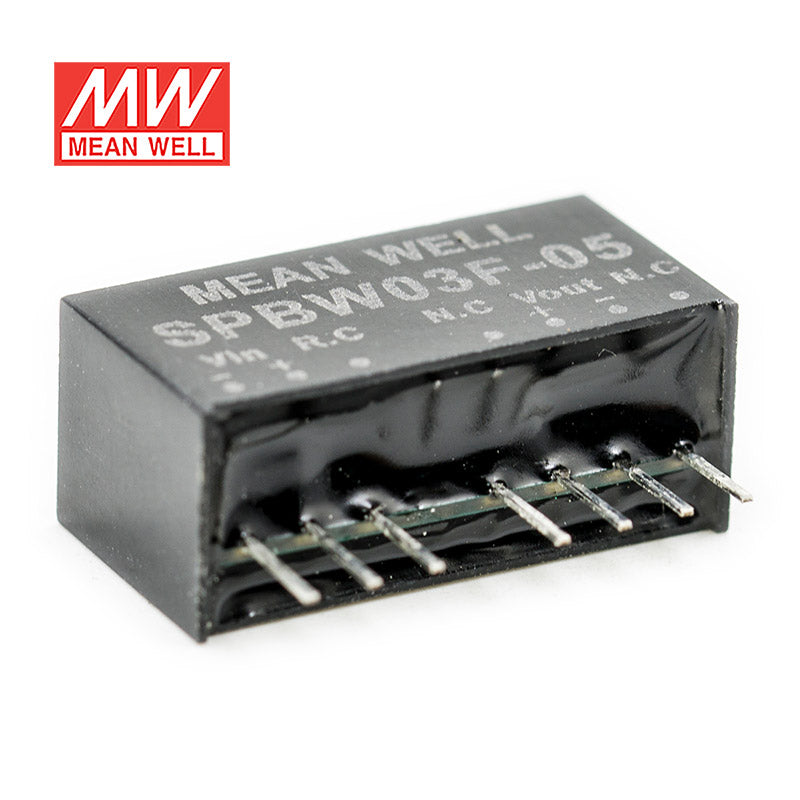

Mean Well SPBW03F-05 DC-DC Converter - 3W - 9~36V in 5V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓Wide operating temperature range -40~+85°C
- ✓High efficiency up to 85%
- ✓4:1 wide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓9V model available(optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPBW03F-05 to power a 5V embedded controller from a 9-36VAC industrial supply?
This converter is built for a 9-36VAC input range and provides a constant 5V output. With a 3W rating, it fits low-power embedded control and interface circuits that need regulated 5V within that power budget.
Is the SPBW03F-05 suitable for a 5V industrial sensor or monitoring module?
It can be a fit for low-power 5V sensor, monitoring, or signal-conditioning modules because it delivers constant voltage at 5V. The available output power is 3W, so the total load needs to stay within that limit.
Can this 5V converter be used in compact automation electronics where board space is limited?
The package is 21.8 x 11.1 x 9.2 mm and weighs 0.0048 kg, so it is sized for compact assemblies. It is intended for regulated 5V output in small industrial, embedded, or automation circuits up to 3W.
Is the SPBW03F-05 appropriate for outdoor or harsh-temperature use?
The operating temperature range is -40 degrees C to +85 degrees C, which supports wide-temperature operation. No IP rating is listed in the provided specs, so the product data does not identify it as weatherproof or outdoor-rated.
How does the SPBW03F-05 compare with other SPBW03F 3W models?
All SPBW03F siblings are rated at 3W and share the same 9-36VAC input family. The outputs listed are 3.3V on SPBW03F-03, 5V on SPBW03F-05, 12V on SPBW03F-12, and 15V on SPBW03F-15, with stated output currents of 700A, 600A, 250A, and 200A respectively.
Other SPBW03 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SPBW03G-15 DC-DC Converter - 3W - 18~75V in 15V out | 3W | 15V | 0.2A | Indoor | $9.20 | View |
| Mean Well SPBW03G-12 DC-DC Converter - 3W - 18~75V in 12V out | 3W | 12V | 0.25A | Indoor | $9.20 | View |
| Mean Well SPBW03G-05 DC-DC Converter - 3W - 18~75V in 5V out | 3W | 5V | 0.6A | Indoor | $9.20 | View |
| Mean Well SPBW03G-03 DC-DC Converter - 3W - 18~75V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
| Mean Well SPBW03F-15 DC-DC Converter - 3W - 9~36V in 15V out | 3W | 15V | 0.2A | Indoor | $9.20 | View |
| Mean Well SPBW03F-12 DC-DC Converter - 3W - 9~36V in 12V out | 3W | 12V | 0.25A | Indoor | $9.20 | View |
| Mean Well SPBW03F-03 DC-DC Converter - 3W - 9~36V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
