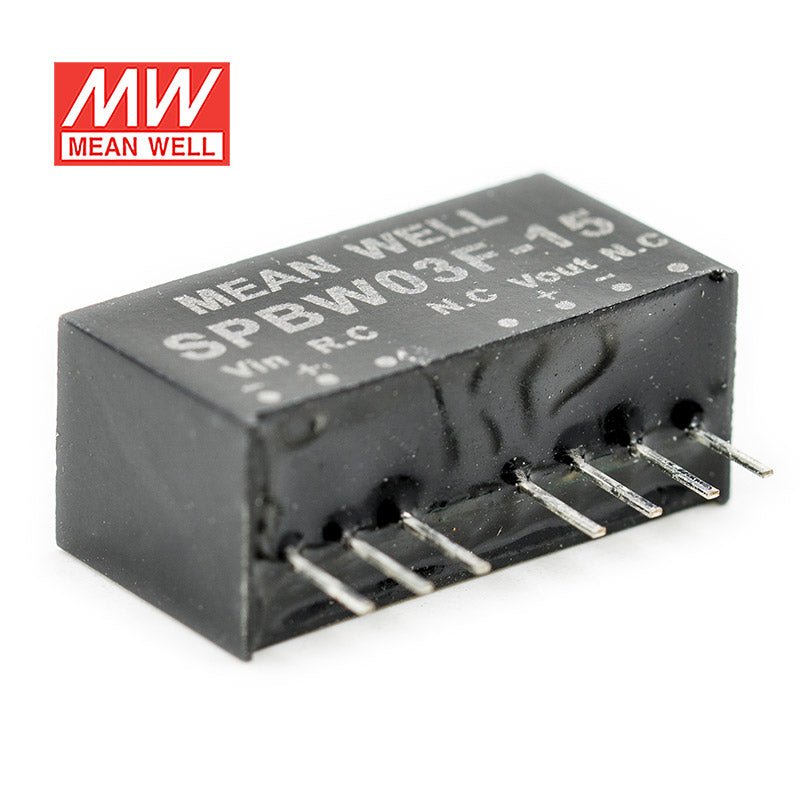

Mean Well SPBW03F-15 DC-DC Converter - 3W - 9~36V in 15V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓Wide operating temperature range -40~+85°C
- ✓High efficiency up to 85%
- ✓4:1 wide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓9V model available(optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPBW03F-15 for a 15V analog or instrumentation circuit in industrial equipment?
This converter supplies a constant 15V output from a 9-36VAC input range. With a 3W rating, it fits low-power analog, instrumentation, or interface sections that require a regulated 15V rail within that load range.
Is the SPBW03F-15 suitable for low-power 15V control electronics inside a machine cabinet?
It is designed for regulated 15V output and can be used in compact low-power control electronics where the total demand stays within 3W. The small 21.8 x 11.1 x 9.2 mm size supports dense cabinet or embedded layouts.
Can this model support a 15V signal-conditioning stage in embedded or automation hardware?
Yes, it is aimed at constant-voltage conversion to 15V for low-power circuits. The input range is 9-36VAC and the product is rated for 3W, which suits small signal-conditioning or interface sections rather than larger loads.
Is the SPBW03F-15 meant for outdoor installations or only protected enclosures?
The stated operating temperature range is -40 degrees C to +85 degrees C, which covers broad thermal conditions. However, no IP rating is listed, so the provided specs do not identify it as outdoor-rated and do not describe enclosure sealing.
How does the SPBW03F-15 differ from the other 3W SPBW03F converters?
The family shares the same 3W format and 9-36VAC input class, but the output options differ. The listed variants are 3.3V at 700A, 5V at 600A, 12V at 250A, and 15V at 200A for SPBW03F-03, SPBW03F-05, SPBW03F-12, and SPBW03F-15.
Other SPBW03 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SPBW03G-15 DC-DC Converter - 3W - 18~75V in 15V out | 3W | 15V | 0.2A | Indoor | $9.20 | View |
| Mean Well SPBW03G-12 DC-DC Converter - 3W - 18~75V in 12V out | 3W | 12V | 0.25A | Indoor | $9.20 | View |
| Mean Well SPBW03G-05 DC-DC Converter - 3W - 18~75V in 5V out | 3W | 5V | 0.6A | Indoor | $9.20 | View |
| Mean Well SPBW03G-03 DC-DC Converter - 3W - 18~75V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
| Mean Well SPBW03F-12 DC-DC Converter - 3W - 9~36V in 12V out | 3W | 12V | 0.25A | Indoor | $9.20 | View |
| Mean Well SPBW03F-05 DC-DC Converter - 3W - 9~36V in 5V out | 3W | 5V | 0.6A | Indoor | $9.20 | View |
| Mean Well SPBW03F-03 DC-DC Converter - 3W - 9~36V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
