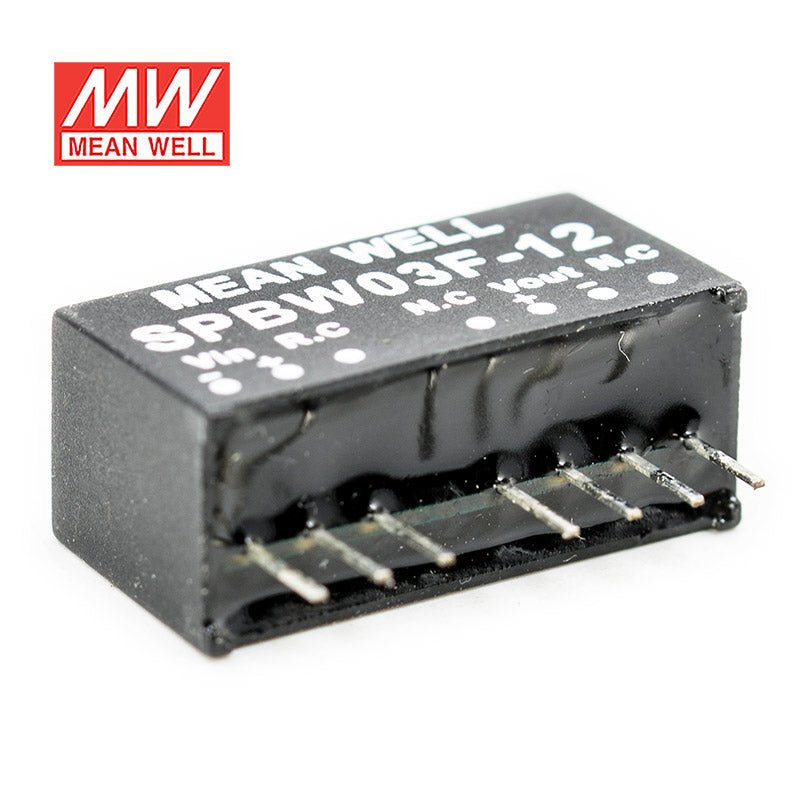

Mean Well SPBW03F-12 DC-DC Converter - 3W - 9~36V in 12V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓Wide operating temperature range -40~+85°C
- ✓High efficiency up to 85%
- ✓4:1 wide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓9V model available(optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating3 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage9V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPBW03F-12 to run a 12V automation interface from a 9-36VAC control supply?
This model accepts 9-36VAC input and provides a constant 12V output. Its 3W rating makes it suitable for low-power automation interface boards and control electronics that need regulated 12V within that power limit.
Is the SPBW03F-12 a good fit for low-power 12V industrial sensing or relay logic circuits?
It is intended for constant-voltage 12V output and can support low-power industrial sensing or relay logic sections that stay within 3W. The compact body also suits dense control assemblies.
Can this converter be used in embedded equipment that needs isolated 12V rail conversion in a small footprint?
The unit measures 21.8 x 11.1 x 9.2 mm and weighs 0.0048 kg, so it fits compact embedded hardware layouts. It provides a regulated 12V output from a 9-36VAC input range with a total 3W capacity.
Will the SPBW03F-12 handle cold or hot enclosure conditions?
The specified operating temperature range is -40 degrees C to +85 degrees C. No IP rating is provided, so the specs support temperature review but do not confirm outdoor exposure or washdown protection.
What are the main differences between the SPBW03F-12 and the other SPBW03F versions?
The SPBW03F series keeps the same 3W platform while changing output voltage and listed output current. The sibling outputs are 3.3V at 700A, 5V at 600A, 12V at 250A, and 15V at 200A across SPBW03F-03, SPBW03F-05, SPBW03F-12, and SPBW03F-15.
Other SPBW03 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SPBW03G-15 DC-DC Converter - 3W - 18~75V in 15V out | 3W | 15V | 0.2A | Indoor | $9.20 | View |
| Mean Well SPBW03G-12 DC-DC Converter - 3W - 18~75V in 12V out | 3W | 12V | 0.25A | Indoor | $9.20 | View |
| Mean Well SPBW03G-05 DC-DC Converter - 3W - 18~75V in 5V out | 3W | 5V | 0.6A | Indoor | $9.20 | View |
| Mean Well SPBW03G-03 DC-DC Converter - 3W - 18~75V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
| Mean Well SPBW03F-15 DC-DC Converter - 3W - 9~36V in 15V out | 3W | 15V | 0.2A | Indoor | $9.20 | View |
| Mean Well SPBW03F-05 DC-DC Converter - 3W - 9~36V in 5V out | 3W | 5V | 0.6A | Indoor | $9.20 | View |
| Mean Well SPBW03F-03 DC-DC Converter - 3W - 9~36V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
