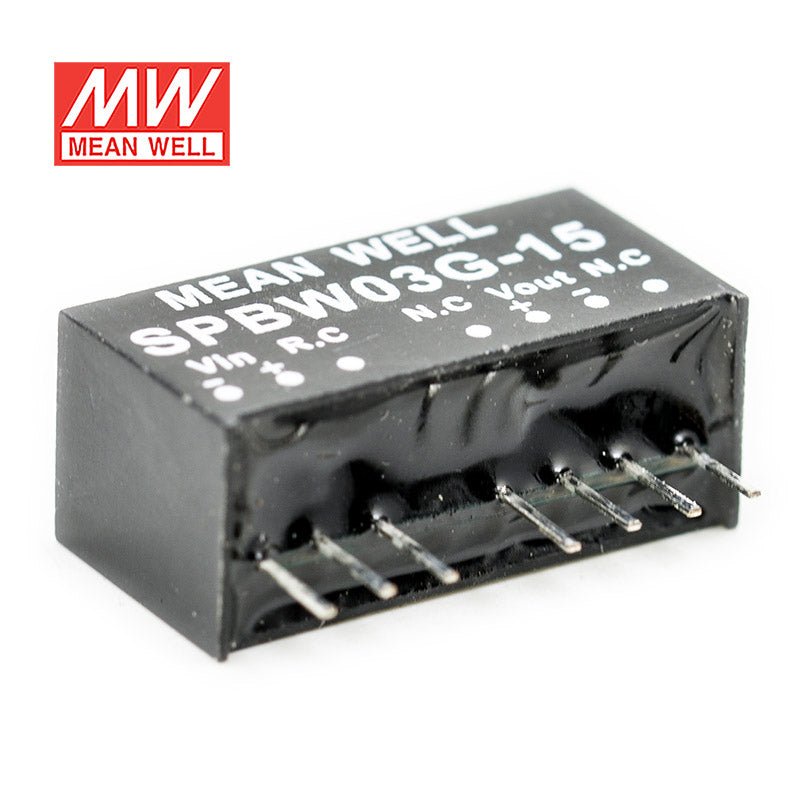

Mean Well SPBW03G-15 DC-DC Converter - 3W - 18~75V in 15V out
Description
Description
Remote ON/OFF control
3 years warranty
Key Features
- ✓SIP8 package with industry-standard pinout
- ✓Wide operating temperature range -40~+85°C
- ✓High efficiency up to 85%
- ✓4:1 wide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓9V model available(optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSPBW Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage18V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPBW03G-15 for low-power 15V instrumentation or control electronics?
Yes, this model provides 15V constant voltage output with 3W total power, which suits low-power instrumentation and control circuits. Its 18-75VAC input range is also useful where the source voltage can vary across a broad range.
Is the SPBW03G-15 a good fit for compact embedded systems that need 15V output?
It can fit space-constrained embedded hardware because the package is only 21.8 × 11.1 × 9.2 mm. The 15V output and 3W rating make it appropriate for small support rails rather than larger 15V loads.
Can this converter power 15V interface or auxiliary sections in automation equipment?
It is designed for constant voltage operation at 15V and 3W, so it is suited to low-power auxiliary sections inside automation equipment. The wide 18-75VAC input range also helps when system input conditions differ across platforms.
Can the SPBW03G-15 be used in outdoor enclosures or very cold locations?
The specified operating temperature range is -40°C to +85°C, so the temperature spec is broad. However, no IP rating is listed, so the product specs do not define it as an outdoor-rated converter.
What is the difference between the SPBW03G-15 and the other 3W SPBW03G versions?
The listed SPBW03G family members all have 3W power. The SPBW03G-03 is 3.3V and 700A, the SPBW03G-05 is 5V and 600A, the SPBW03G-12 is 12V and 250A, and the SPBW03G-15 is 15V and 200A.
Other SPBW03 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SPBW03G-12 DC-DC Converter - 3W - 18~75V in 12V out | 3W | 12V | 0.25A | Indoor | $9.20 | View |
| Mean Well SPBW03G-05 DC-DC Converter - 3W - 18~75V in 5V out | 3W | 5V | 0.6A | Indoor | $9.20 | View |
| Mean Well SPBW03G-03 DC-DC Converter - 3W - 18~75V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
| Mean Well SPBW03F-15 DC-DC Converter - 3W - 9~36V in 15V out | 3W | 15V | 0.2A | Indoor | $9.20 | View |
| Mean Well SPBW03F-12 DC-DC Converter - 3W - 9~36V in 12V out | 3W | 12V | 0.25A | Indoor | $9.20 | View |
| Mean Well SPBW03F-05 DC-DC Converter - 3W - 9~36V in 5V out | 3W | 5V | 0.6A | Indoor | $9.20 | View |
| Mean Well SPBW03F-03 DC-DC Converter - 3W - 9~36V in 3.3V out | 3W | 3.3V | 0.7A | Indoor | $9.20 | View |
