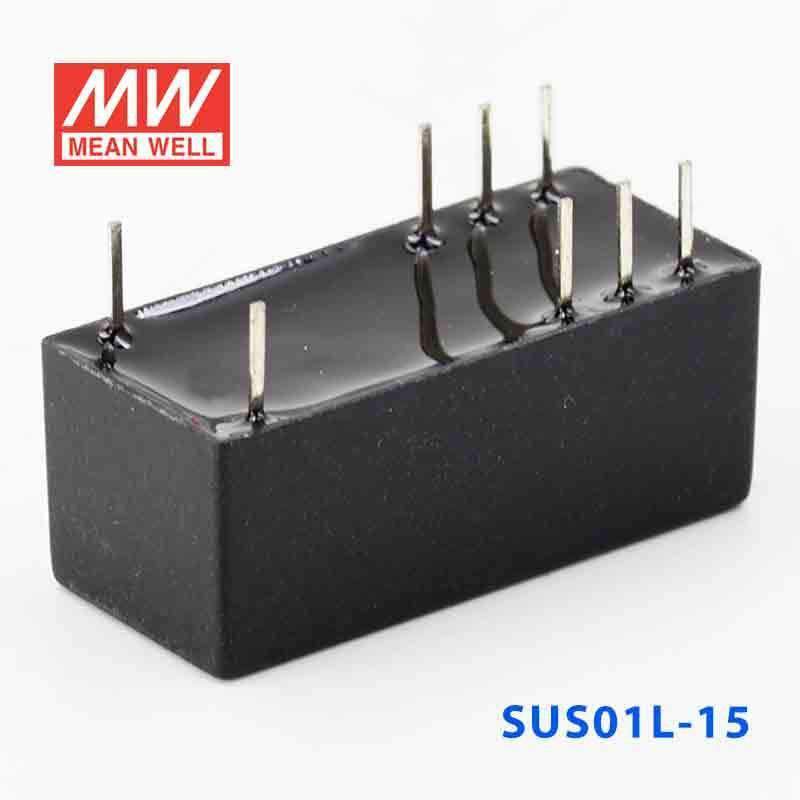

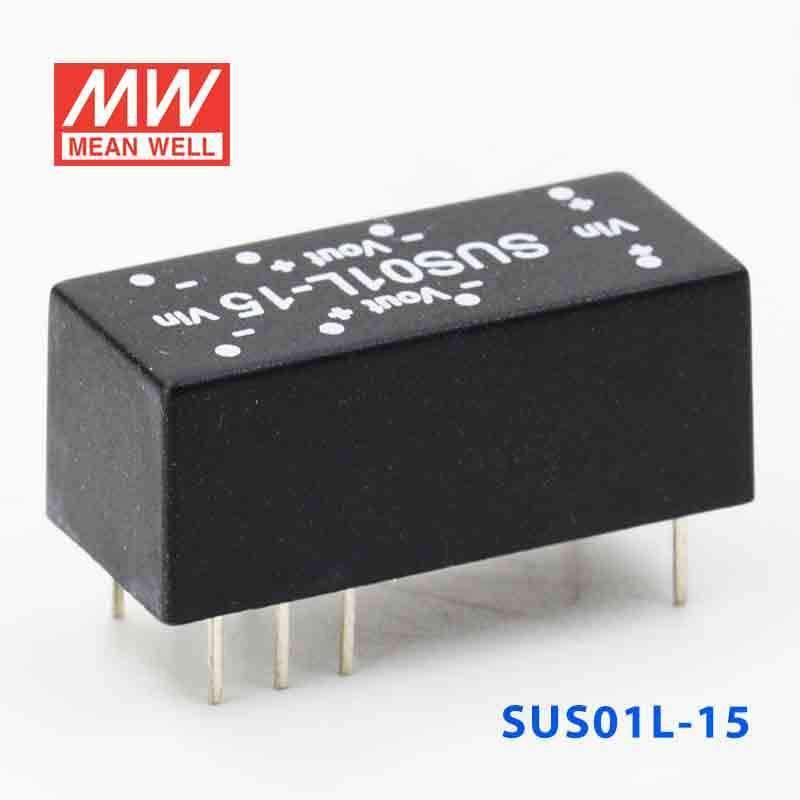

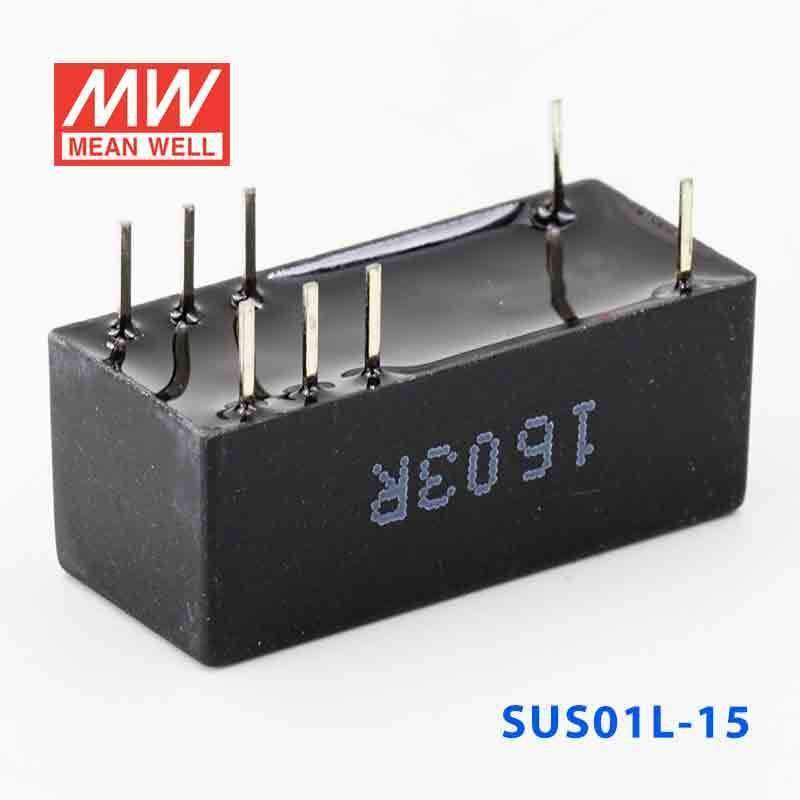

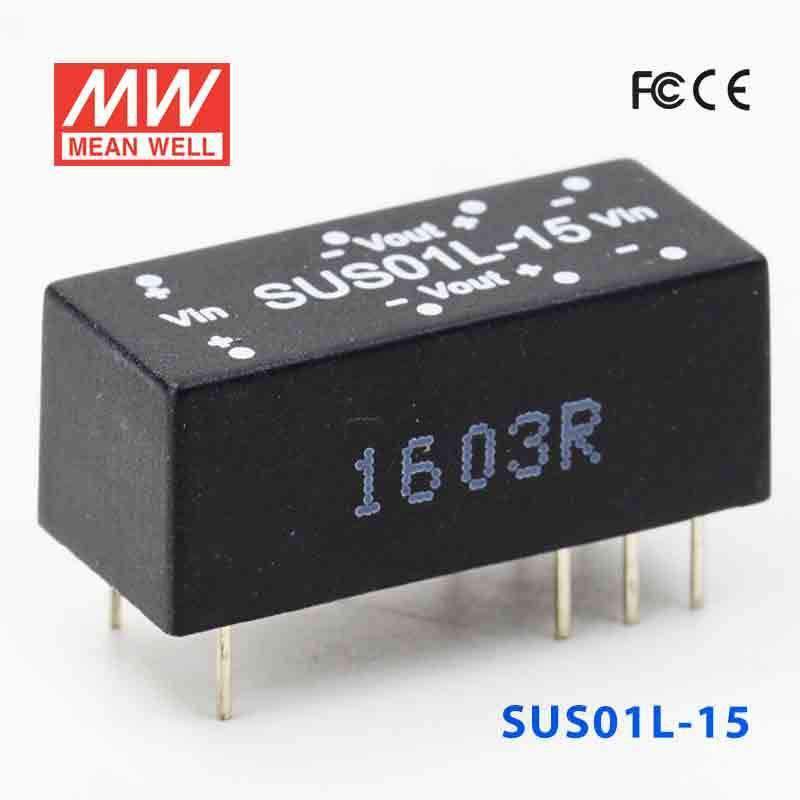

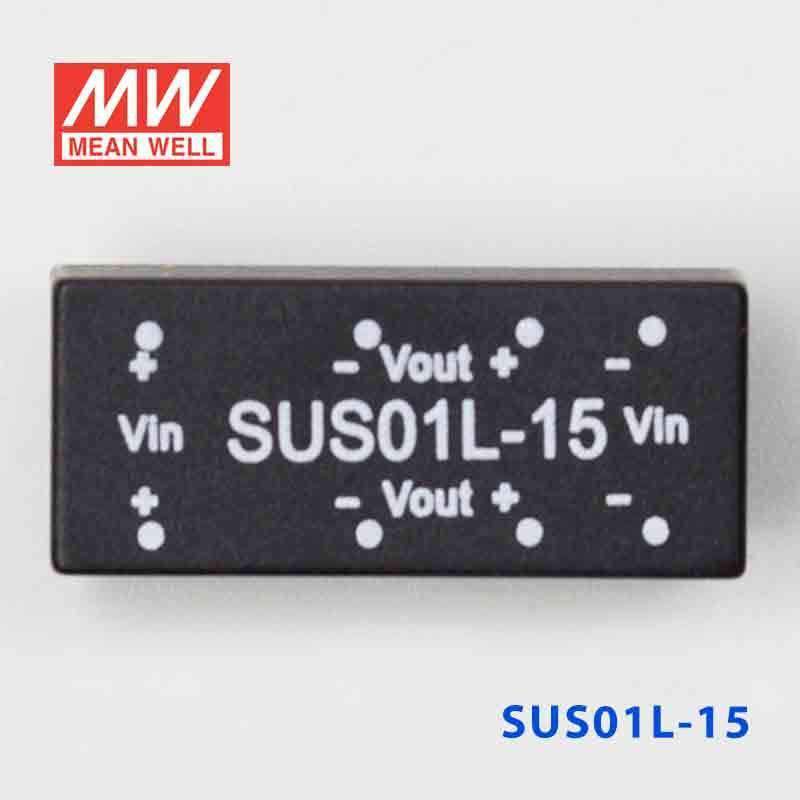

Mean Well SUS01L-15 DC-DC Converter - 1W - 4.5~5.5V in 15V out
Description
Description
Features
| 1000VDC I/O isolation |
| Internal SMD technology |
| Built-in EMI filter |
| Protection: Short circuit |
| Cooling by free air convection |
| Non-conductive plastic case |
| Dual in line package |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (max.) |
| Line regulation | ±1.2% (max.) for 1% input variation |
| Load regulation | ±8% (max.)@20~100% load |
| Input reflected ripple | 120mVp-p |
| Efficiency | 83% (typical) |
| Short circuit protection | Momentary |
| Switching frequency | 50kHz (min.) |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | 100MQ(min.)@500DC |
| Isolation capacitance | 80pF (max.) |
| Working temperature | -25°C to +60°C (no derating), +71°C@80% load |
| Storage temperature | -25°C to +105°C |
| Temp. Coefficient | ±0.03% / °C (max.) |
| Case material | non-conductive plastic |
| Dimension (LxWxH) (mm) | 0.89""x 0.39""x 0.33"" |
Specifications
Specifications
-
BrandMean Well
-
SeriesSUS Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length0.89 in
-
Width0.39 in
-
Height0.35 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SUS01L-15 to create a 15V rail for low-power industrial or embedded electronics?
Yes, it is designed for constant-voltage 15V output with a 1W power rating. It is a better match for small industrial, embedded, or automation circuits than for higher-power 15V devices.
Is this converter appropriate for signal conditioning or interface sections that need 15V from a 4.5~5.5V source?
It can fit that role when the available input is within 4.5~5.5V and the load stays within the converter's 1W capacity. The output is regulated at 15V, which suits fixed-voltage low-power sections.
Can the SUS01L-15 be used in compact automation modules where board space is limited?
Yes, the package measures 22.6 × 9.9 × 8.9 mm, so it is intended for compact layouts. Its low 0.0031 kg weight also helps in small electronic assemblies.
How should I size a load for the SUS01L-15?
Use it with a circuit that requires constant 15V and stays within the 1W rating and listed 0.07A output current. If the load exceeds either of those limits, this model is undersized for that application.
Is the SUS01L-15 intended for indoor or outdoor environments?
Its stated operating range is -25°C to +71°C, so the temperature rating covers many equipment environments. There is no IP rating in the listed specs, so it is better suited to indoor or protected enclosure use than exposed outdoor conditions.
