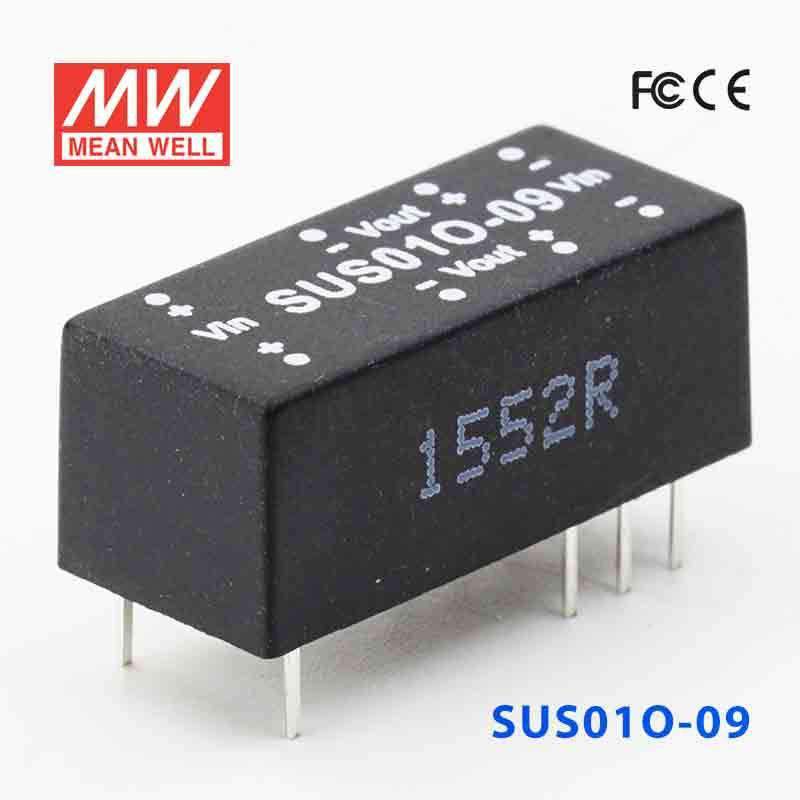

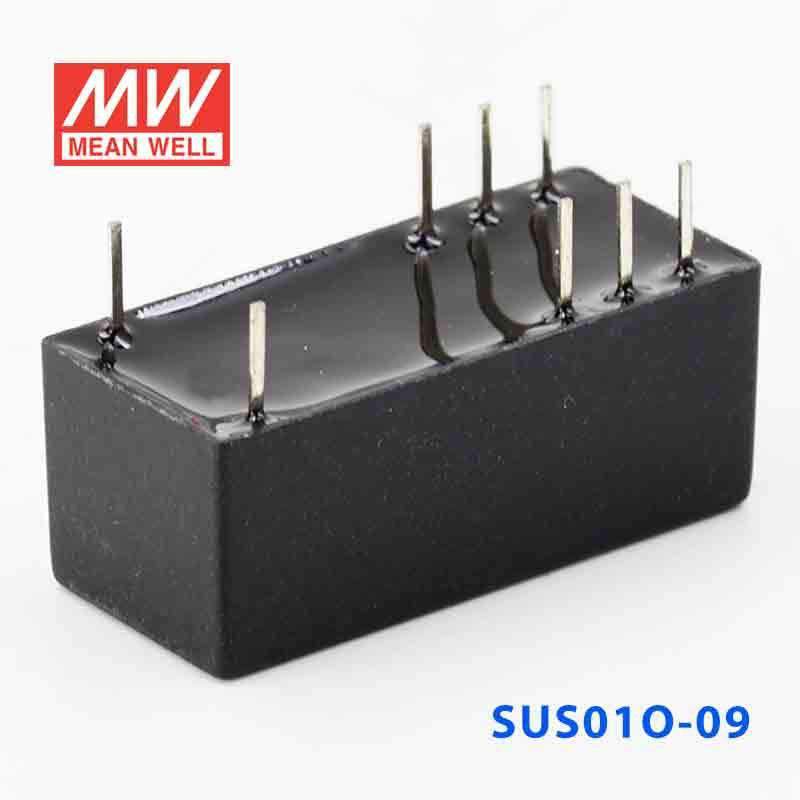

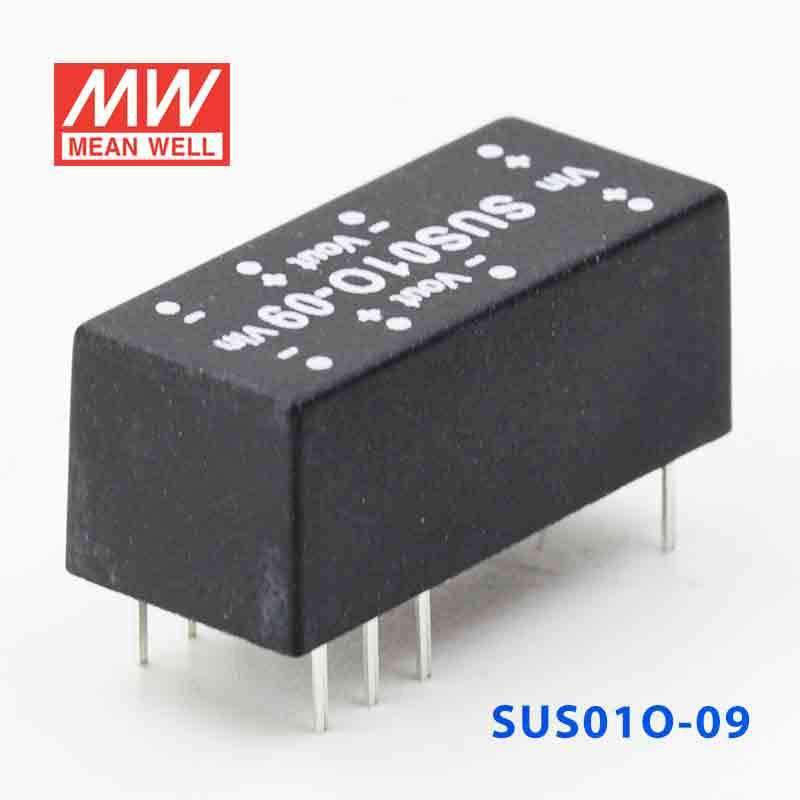

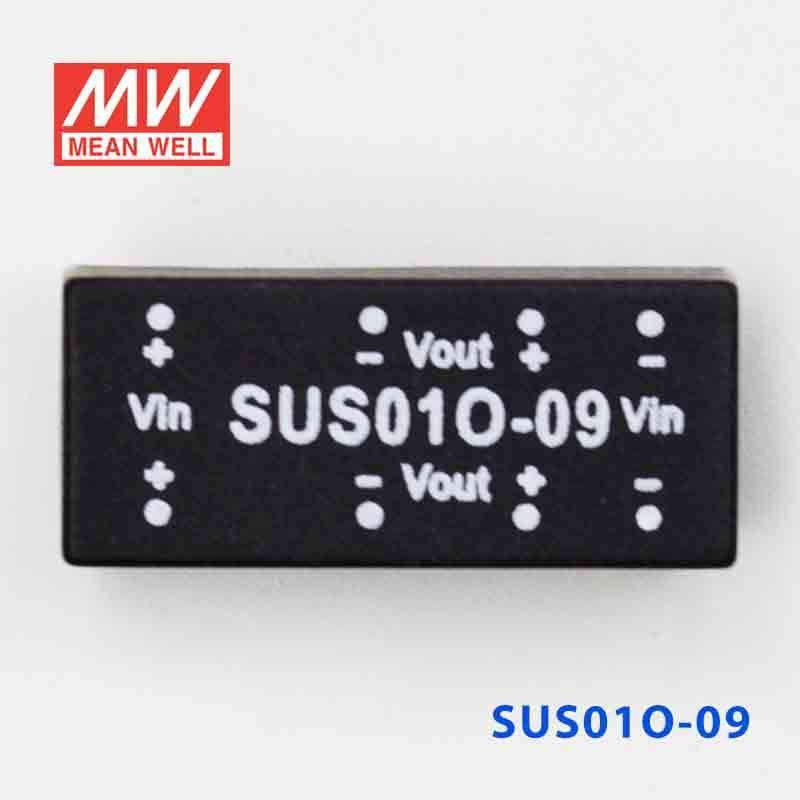

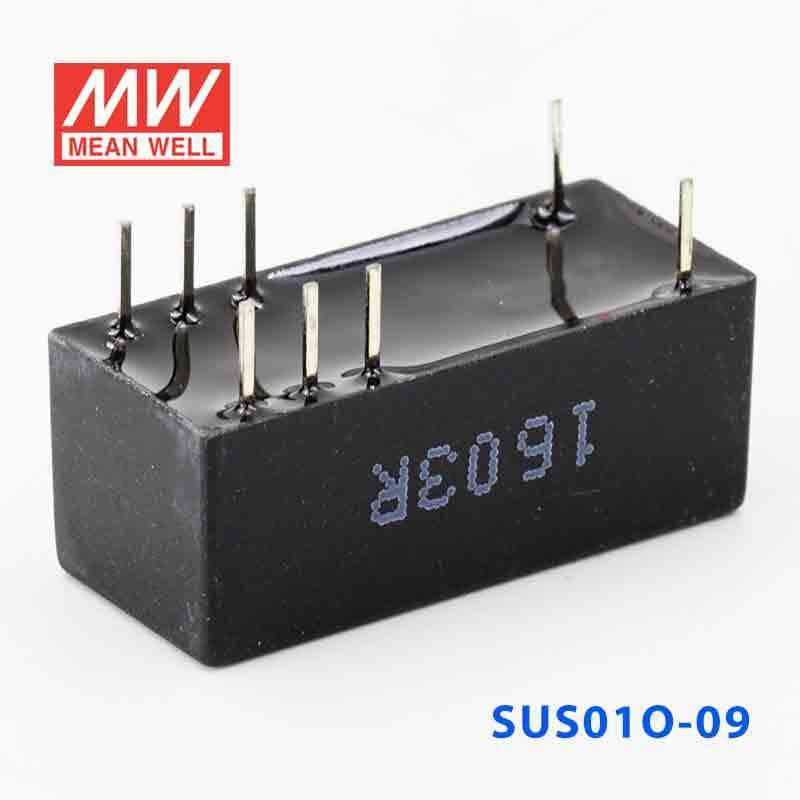

Mean Well SUS01O-09 DC-DC Converter - 1W - 43.2~52.8V in 9V out
Overview
SUS01O-09 is the model of this series: rated power 1W, typical efficiency 77%.
Features
- 1500VDC I/O isolation
- Internal SMD technology
- Built-in EMI filter
- Cooling by free air convection
- Non-conductive plastic case
- Dual in line package
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC OUTPUT VOLTAGE
- 9V
- OUTPUT CURRENT RANGE
- 0 ~ 111mA
- EFFICIENCY
- 77%
- RATED POWER
- 1W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- LINE REGULATIONNote.3
- ±1.2% for 1% input variation
- LOAD REGULATIONNote.4
- ±8.0%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 50KHz min.
INPUT
- VOLTAGE RANGE
- 43.2 ~ 52.8V
- NORMAL VOLTAGE
- 48V
- INPUT CURRENT Full load
- 28mA
- INPUT CURRENT No load
- 3mA
- FILTER
- Capacitor type
- PROTECTION
- Fuse recommended
PROTECTION
- OVERLOAD
- Momentary Protection type : Broken
- SHORT CIRCUIT
- Momentary Protection type : Broken
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE
- 80pF max.
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 700khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
- PACKING
- 3.1g ; 22 pcs/per tube, 3080 pcs/ 140 tube/per carton
Test conditions and notes4
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.
Technical drawings
Downloads
FAQ
Can I use the SUS01O-09 for a 9V rail in embedded or industrial electronics powered from 43.2~52.8VAC?
Yes, this unit is intended for 43.2~52.8VDC input applications that need a regulated 9V constant-voltage output. Its 1W rating makes it more appropriate for low-power embedded or industrial electronics than for higher-demand devices.
Is the SUS01O-09 suitable for low-power automation sensors or interface circuits that require 9V?
It can be used for low-power automation sensors or interface circuits that need a stable 9V supply and stay within the 1W rating. The compact 22.6 × 9.9 × 8.9 mm size also supports use in space-constrained assemblies.
Would this converter make sense for small 9V control sections inside equipment cabinets?
Yes, it is suited to small 9V control sections inside equipment cabinets when the source falls in the 43.2~52.8VDC range. The constant-voltage output is intended for electronics that expect a fixed 9V rail.
Can this model be used in outdoor automation equipment?
The datasheet details an operating temperature range of -25°C to +71°C, which covers its stated thermal operating limits. Since no IP rating is shown, the listing does not establish outdoor or direct-exposure suitability.
How does the SUS01O-09 differ from the other SUS01O output variants?
All listed SUS01O siblings are 1W converters with 43.2~52.8VDC input and 22.6 × 9.9 × 8.9 mm dimensions, but they provide different outputs: SUS01O-05 is 5V and 200mA, SUS01O-09 is 9V and 111mA, SUS01O-12 is 12V and 84mA, and SUS01O-15 is 15V and 67mA. Selection within the group comes down to the required output voltage and its matching current spec.
