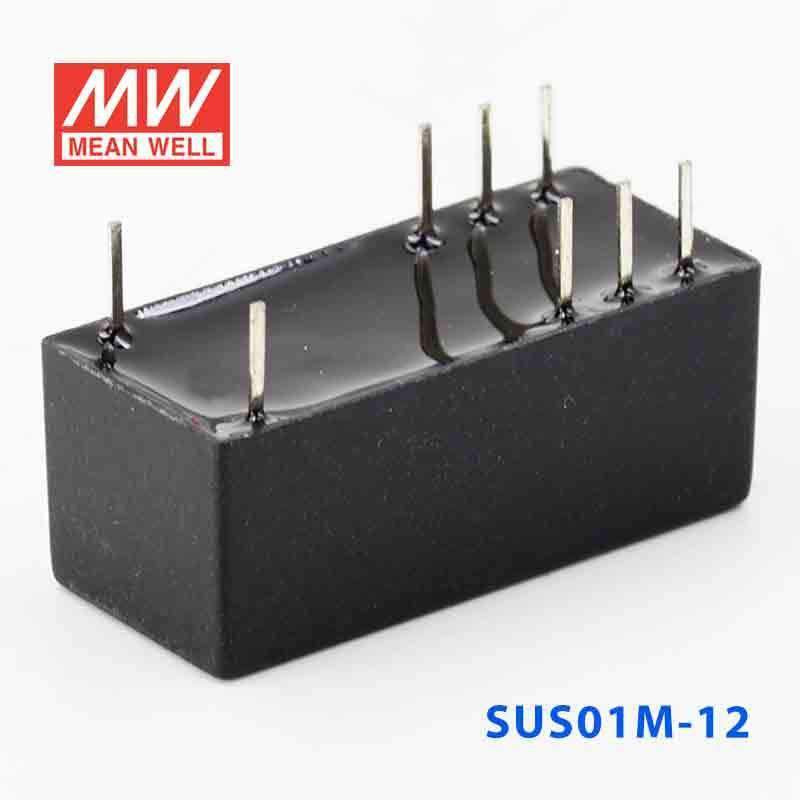

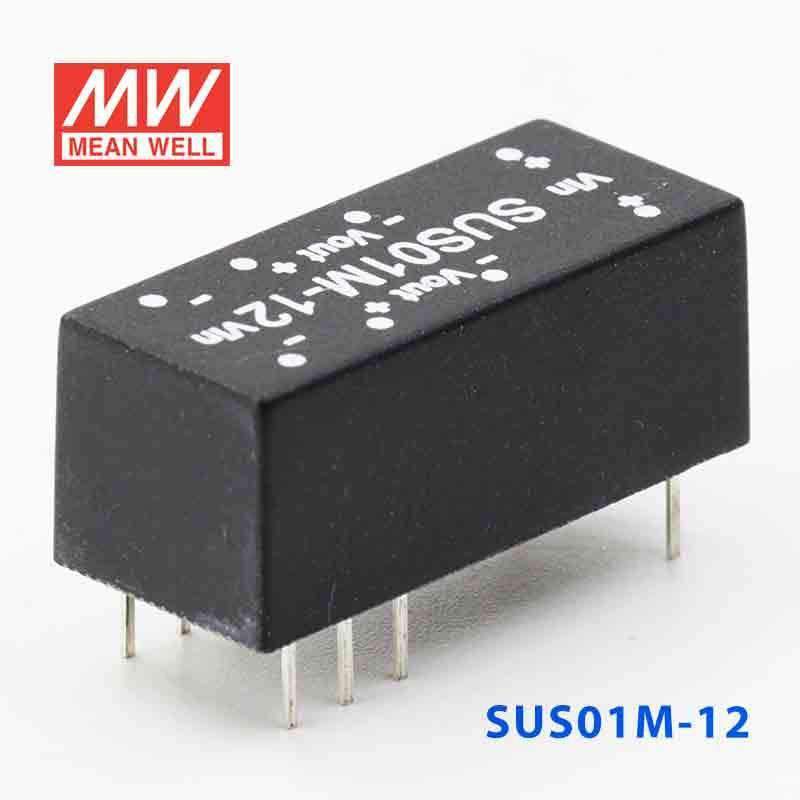

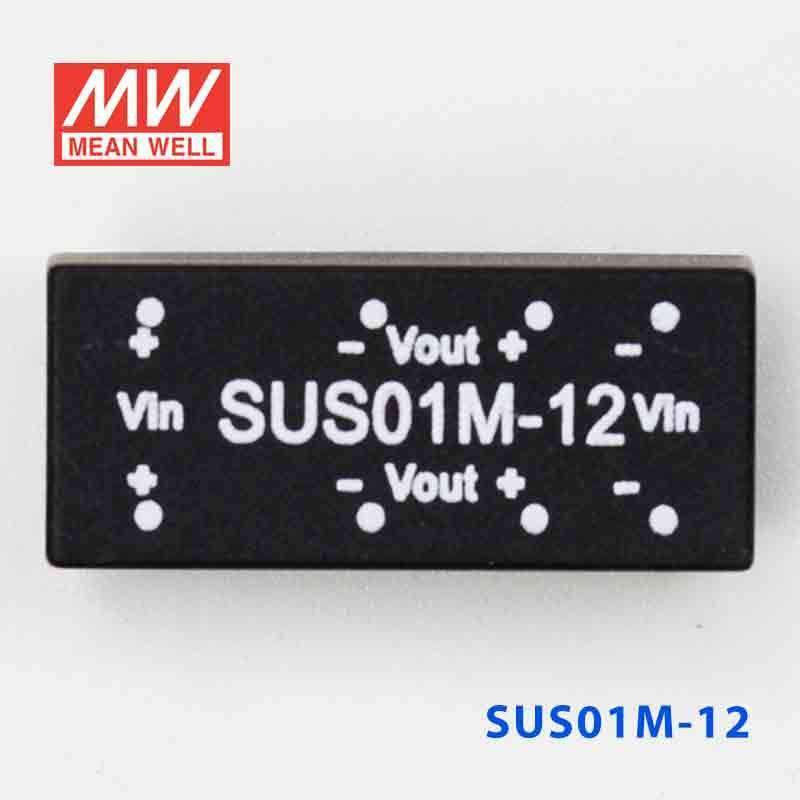

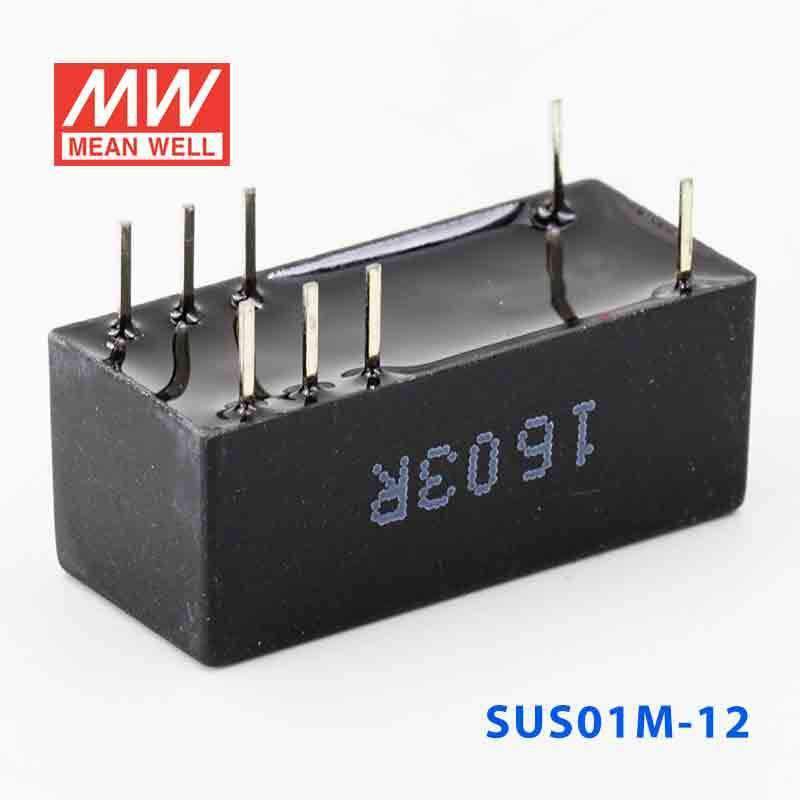

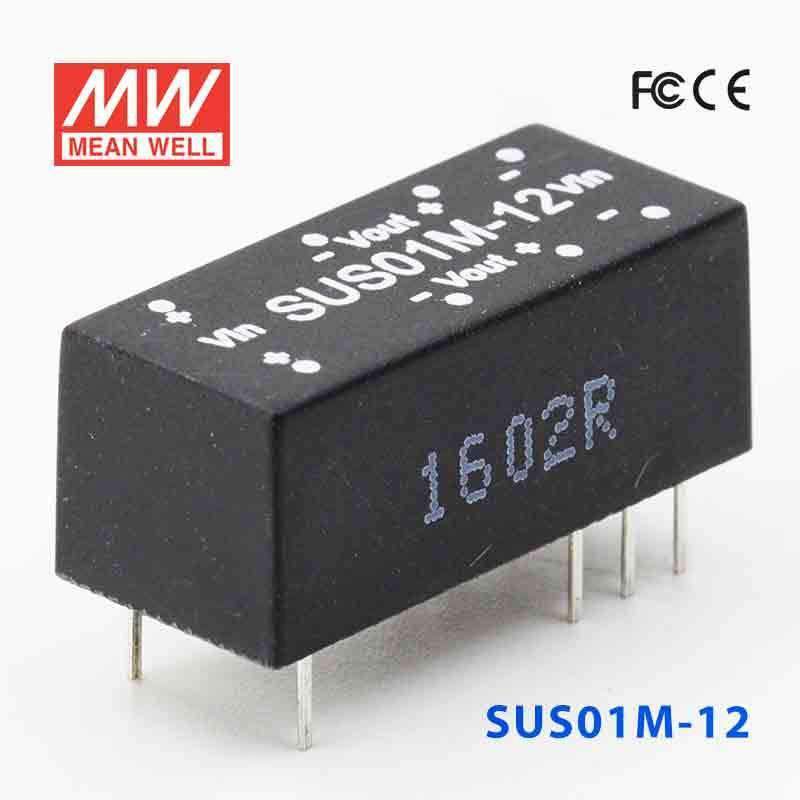

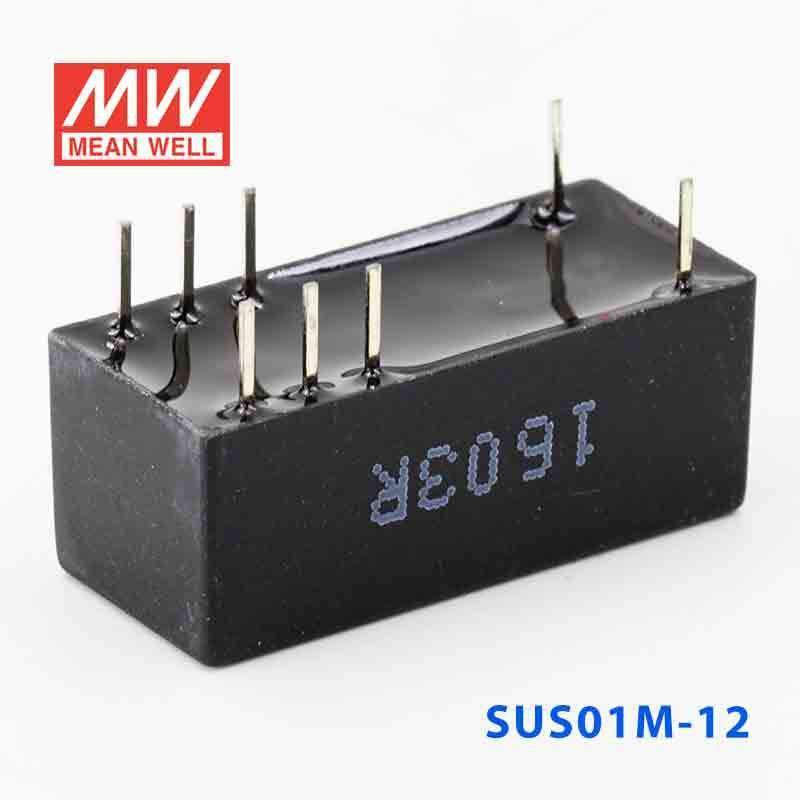

Mean Well SUS01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out
Description
Description
The SUS01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -25~+71℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ℃ -25 ~ +105 ℃ ± , 10 ~ 95% RH ℃ ) 0.03% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSUS Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length0.89 in
-
Width0.39 in
-
Height0.35 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SUS01M-12 to provide isolated 12V power inside a PLC or industrial control cabinet?
It can fit low-power 12V control tasks where the source is within the listed 10-13VAC input range and the load stays within the 1W power rating. The output is constant voltage at 12V with a maximum output current of 0.08A. Its compact 22.6 × 9.9 × 8.9 mm size also suits dense control hardware layouts.
Is this converter suitable for embedded 12V interface circuits in compact equipment?
Yes, it is intended for very small constant-voltage loads that need 12V output from a 10-13VAC input source. With only 1W available and 0.08A output current, it is better for light embedded interface or signal-related power needs than for higher-draw devices. The small 0.0031 kg weight can also matter in tightly packaged equipment.
Can the SUS01M-12 be used for low-power 12V automation sensors or signal modules?
It can be used when the sensor or module requires a regulated 12V constant-voltage supply and draws no more than 0.08A. The converter is rated at 1W, so it is appropriate for low-power automation electronics rather than larger field devices. Buyers should match the load to both the 12V output and the 1W limit.
Is the SUS01M-12 appropriate for outdoor or harsh-environment equipment?
The listed specs show an operating temperature range of -25°C to +71°C, but no IP rating is provided. That means the temperature range is defined, while resistance to water or dust is not established in the provided data. Based on these specs alone, it is better treated as a protected indoor component unless enclosure details are available elsewhere.
How does the SUS01M-12 compare with other SUS01M series output options?
In the same SUS01M family, the listed siblings are SUS01M-05 at 1W and 5V with 200A, SUS01M-09 at 1W and 9V with 111A, and SUS01M-15 at 1W and 15V with 0.07A. The SUS01M-12 version is 1W with 12V output and 0.08A output current. All are compact 1W members of the same series, with the main difference being output voltage and listed output current.
