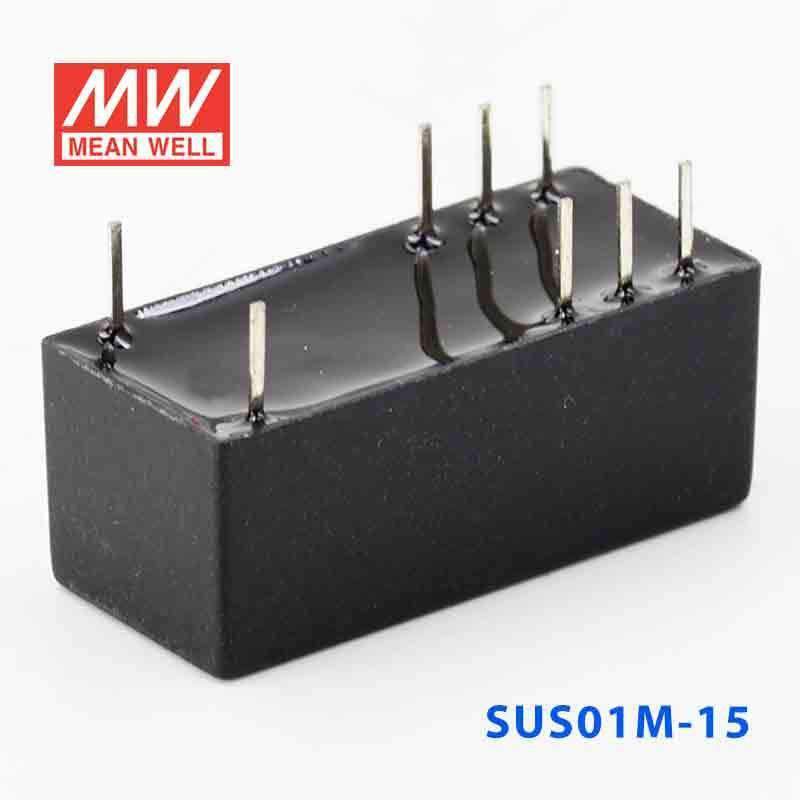

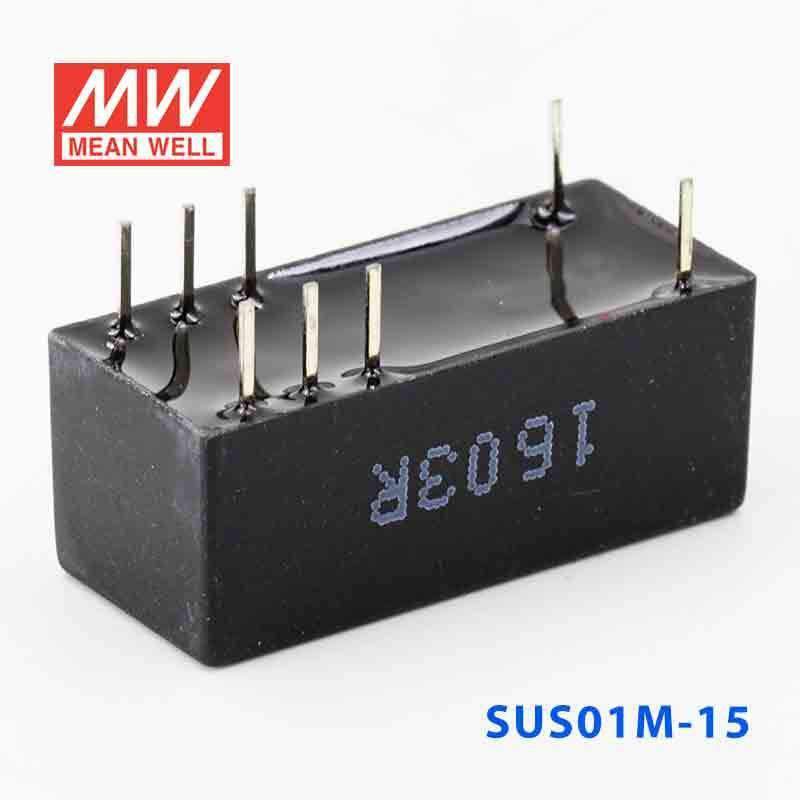

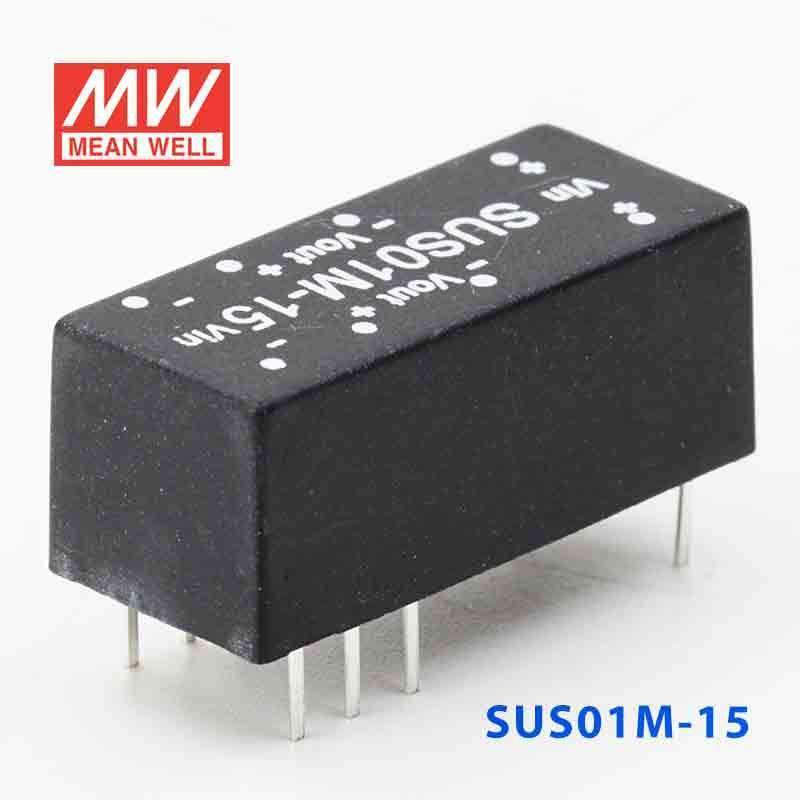

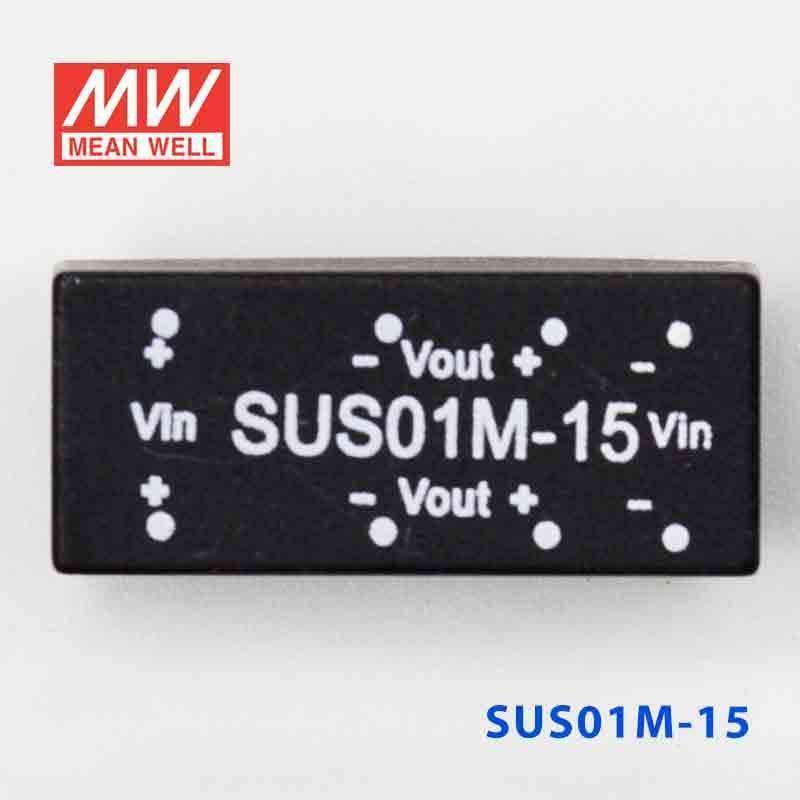

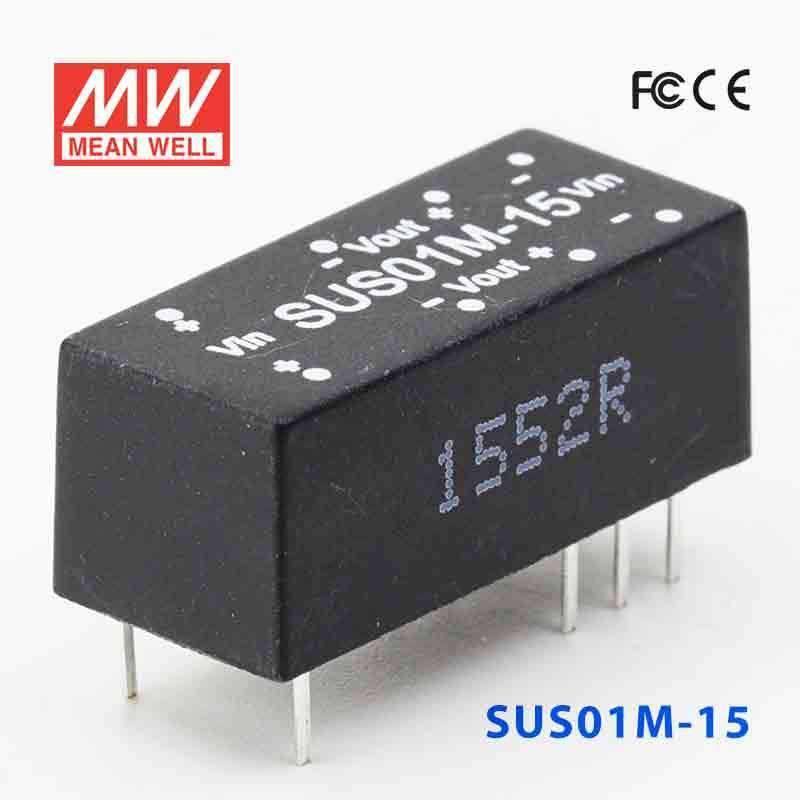

Mean Well SUS01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out
Description
Description
The SUS01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -25~+71℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ℃ -25 ~ +105 ℃ ± , 10 ~ 95% RH ℃ ) 0.03% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSUS Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length0.89 in
-
Width0.39 in
-
Height0.35 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SUS01M-15 for low-power 15V analog or instrumentation circuits?
It can work for low-power 15V circuits when the available source is within the stated 10-13VAC input range. The unit provides a constant 15V output and is rated for 1W total, with a maximum output current of 0.07A. That makes it suitable for light instrumentation or interface loads rather than larger 15V devices.
Is the SUS01M-15 a good fit for embedded control boards that need a small 15V rail?
Yes, for compact embedded designs that need a very low-power 15V rail, this model can be a fit. Its body measures 22.6 × 9.9 × 8.9 mm and weighs 0.0031 kg, which supports space-constrained assemblies. The load still needs to stay within the 1W and 0.07A output limits.
Can this model power a 15V industrial signal-conditioning module?
It can if the module needs constant 15V and its power demand does not exceed 1W. The maximum output current is 0.07A, so it is aimed at small signal-conditioning or control electronics instead of higher-consumption industrial hardware. Input conditions also need to match the 10-13VAC specification.
Will the SUS01M-15 handle cold or warm equipment enclosures?
The specified operating range is -25°C to +71°C, so the temperature envelope is clearly defined for protected equipment operation. The provided specs do not list any IP rating, so environmental sealing is not specified. On that basis, temperature suitability is stated, but outdoor exposure suitability is not.
What are the differences between the SUS01M-15 and the other SUS01M versions?
The listed sibling models are SUS01M-05 at 1W and 5V with 200A, SUS01M-09 at 1W and 9V with 111A, and SUS01M-12 at 1W and 12V with 0.08A. The SUS01M-15 version provides 15V output at 0.07A and is also rated at 1W. Across the series, the key differences are the output voltage and listed output current.
