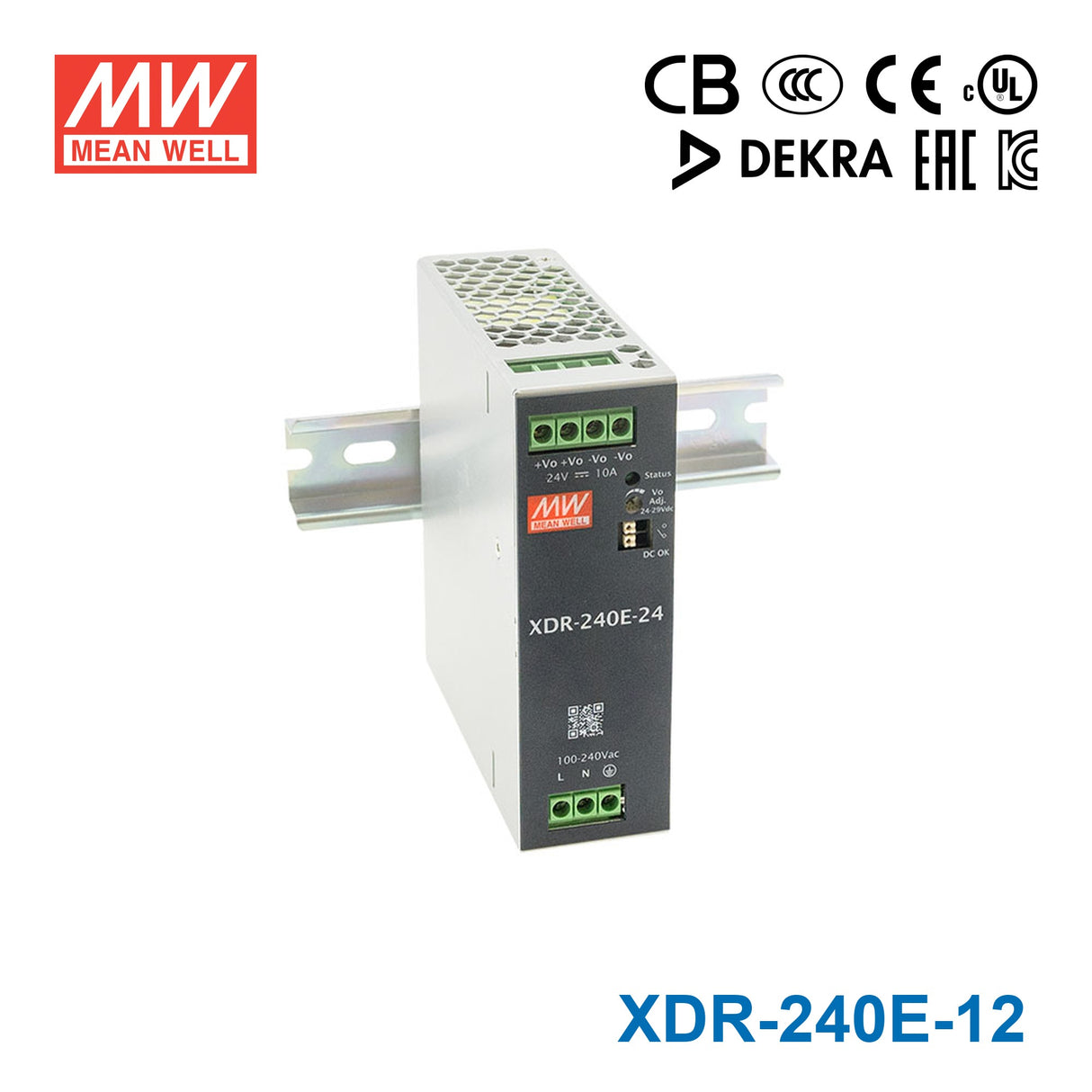

Mean Well XDR-240E-12 Economical Ultra Slim Din Rail Power Supply 2...
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓40mm slim width
- ✓High efficiency up to 95.5% and no-load power dissipation<1.2W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating240 Watt
-
Output Voltage12 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.57 in
-
Height4.93 in
-
Weight1.34 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XDR-240E-12 used for?
The XDR-240E-12 is a DIN rail power supply for systems that need a 12V DC output up to 240W. It is suited to industrial control panels, automation equipment, and other equipment cabinets where a slim DIN rail power supply is preferred.
How much current can the XDR-240E-12 provide?
This model is rated for 20A at 12V DC, with a total power rating of 240W. Buyers should size the supply so the connected load stays within that 240W and 20A rating.
Is the XDR-240E-12 suitable for compact control cabinets?
Yes. The XDR-240E-12 has a 40mm slim width, making it useful where DIN rail space is limited. It also uses a fanless design with free air convection cooling.
What input voltage range does the XDR-240E-12 support?
The XDR-240E-12 supports an 85-264Vac input range. This wide AC input range helps the same model fit projects in different regions where the rest of the system requirements match its 12V, 240W output rating.
Can the XDR-240E-12 operate in harsh temperatures?
This model is specified for operation from -40°C to +70°C. The product description notes derating above +50°C, so available output capacity should be reviewed for higher-temperature environments.
What protections are included with the XDR-240E-12?
The XDR-240E-12 includes protections for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
What certifications or safety categories are listed for the XDR-240E-12?
The product description lists global certificates across ITE 62368-1, Industrial 61558-1/-2-16, and 61010 categories. It also lists Overvoltage Category III, or OVC III.
How efficient is the Mean Well XDR-240E-12?
The XDR-240E-12 is listed with efficiency up to 95.5%. Its no-load power dissipation is specified as less than 1.2W.
