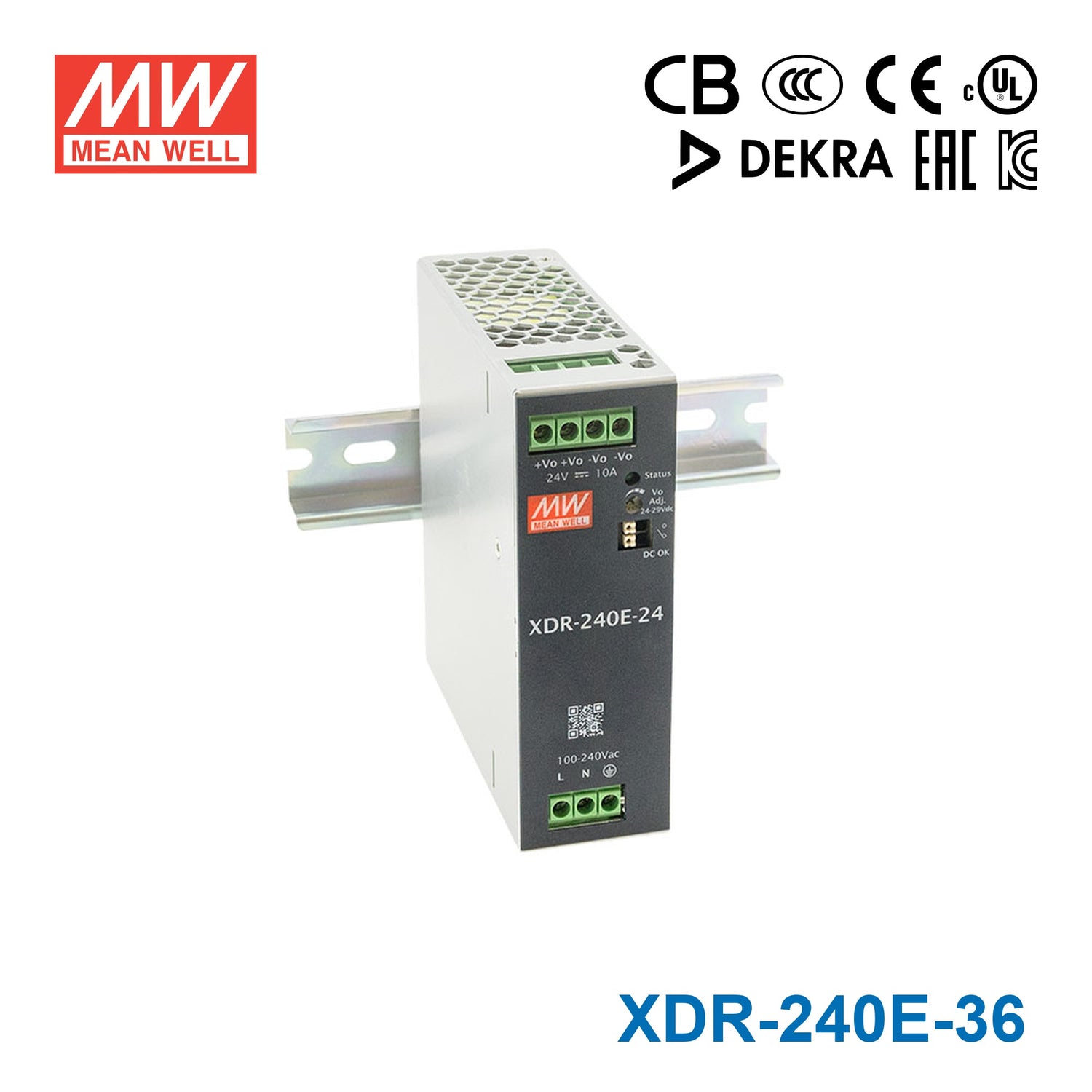

Mean Well XDR-240E-36 Economical Ultra Slim Din Rail Power Supply 2...
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓40mm slim width
- ✓High efficiency up to 95.5% and no-load power dissipation<1.2W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.66 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.57 in
-
Height4.93 in
-
Weight1.34 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well XDR-240E-36?
The XDR-240E-36 is rated for 240W output at 36V DC. Its rated current is 6.66A, making it suitable for 36V equipment with power demand at or below this model's 240W rating.
Where is the XDR-240E-36 a good fit?
This model is designed for DIN rail power supply applications where a 36V DC output and compact footprint are important. Its 40mm slim width makes it useful in control panels or industrial equipment layouts where space is limited.
How wide is the XDR-240E-36 compared with standard DIN rail power supplies?
The XDR-240E-36 has a 40mm slim width. That is a key differentiator for this economical ultra slim series when panel space is limited but a 240W, 36V supply is still required.
What input range does the XDR-240E-36 support?
The XDR-240E-36 supports an 85~264Vac input range. This broad AC input range supports use across many common mains power environments, subject to the requirements of the full system design.
Can the XDR-240E-36 operate in demanding temperature conditions?
Yes. The listed operating temperature range is -40°C to +70°C, with derating above +50°C. It uses a fanless design with cooling by free air convection.
What protections and certifications are listed for the XDR-240E-36?
The XDR-240E-36 includes protections for short circuit, overload, over voltage, and over temperature. The listed certificates cover ITE 62368-1, Industrial 61558-1/-2-16, and 61010, and the model is rated for overvoltage category III.
What warranty applies to the XDR-240E-36?
The XDR-240E-36 has a listed warranty period of 3 years. It also specifies high efficiency up to 95.5% and no-load power dissipation below 1.2W.
