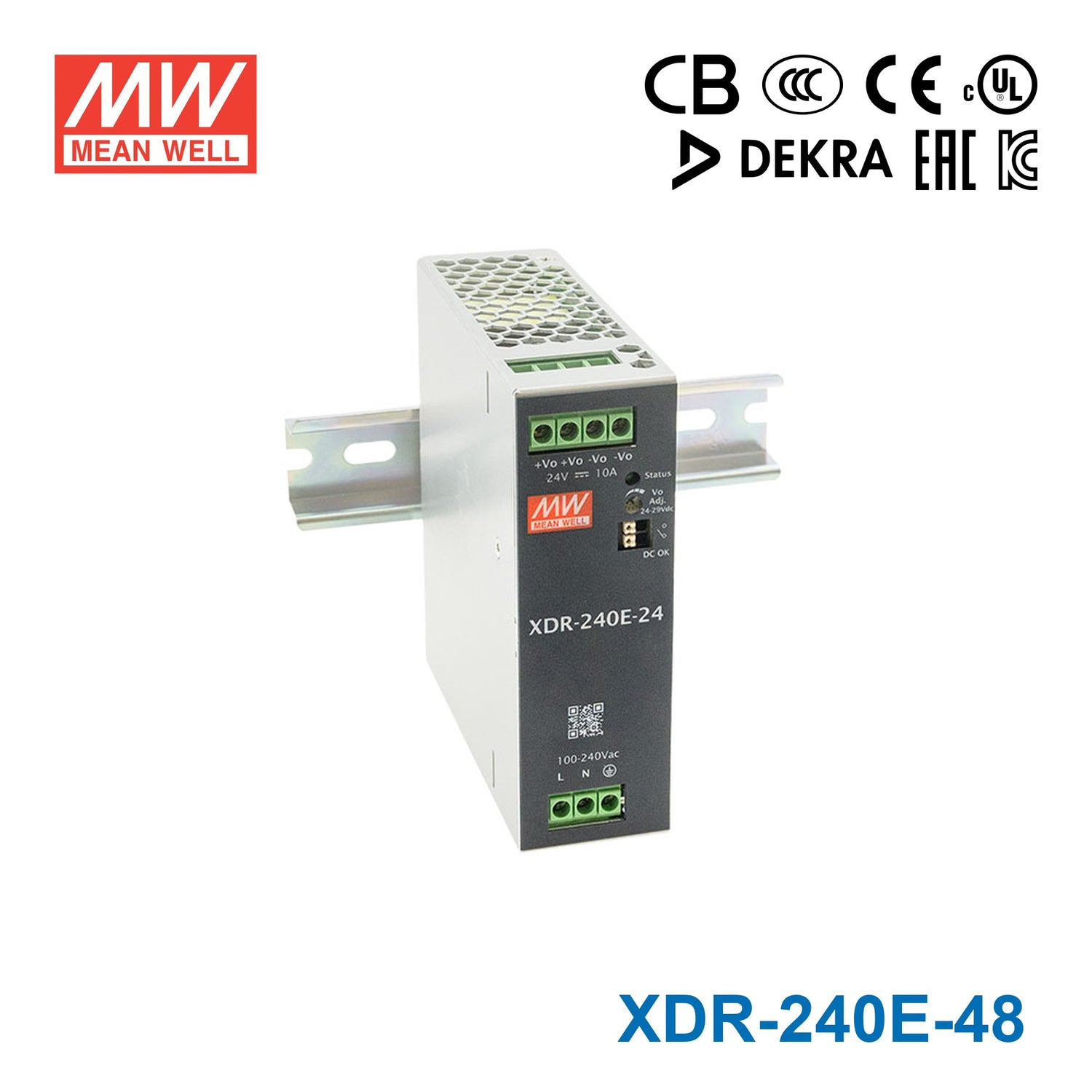

Mean Well XDR-240E-48 Economical Ultra Slim Din Rail Power Supply 2...
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓40mm slim width
- ✓High efficiency up to 95.5% and no-load power dissipation<1.2W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.57 in
-
Height4.93 in
-
Weight1.34 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well XDR-240E-48?
The XDR-240E-48 is rated for 240W output power. It provides a 48V DC output with a rated current of 5A.
Is the XDR-240E-48 suitable for slim DIN rail power supply applications?
Yes. This model is described as an economical ultra slim DIN rail power supply and has a 40mm slim width, making it suitable where panel space is limited.
What input voltage range does the XDR-240E-48 support?
The XDR-240E-48 supports an 85 to 264Vac input range. This wide AC input range makes it practical for systems that need a globally usable industrial power supply.
What operating temperature range does the XDR-240E-48 support?
This model is specified for operation from -40°C to +70°C. The product data notes derating above +50°C, so available output capacity may be reduced at higher ambient temperatures.
Does the XDR-240E-48 use a fan?
No. The XDR-240E-48 has a fanless design and is cooled by free air convection, which can be useful in industrial cabinets where reduced moving parts are preferred.
What protections are listed for the XDR-240E-48?
The listed protections are short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.
How efficient is the Mean Well XDR-240E-48?
The XDR-240E-48 is specified with efficiency up to 95.5%. Its no-load power dissipation is listed as less than 1.2W.
What certifications or application standards are noted for this model?
The product data lists global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also notes Overvoltage Category III, or OVC III.
