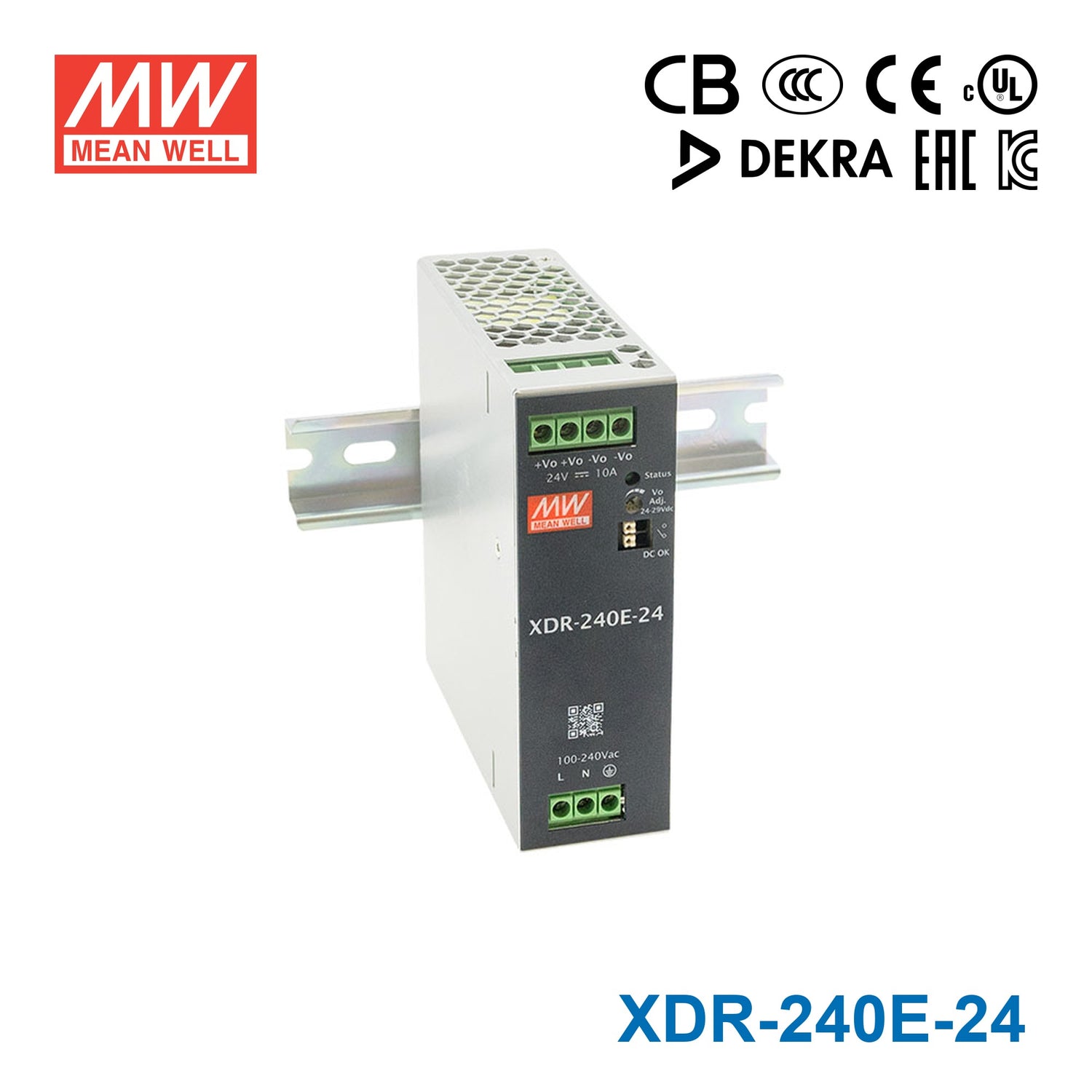

Mean Well XDR-240E-24 Economical Ultra Slim Din Rail Power Supply 2...
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓40mm slim width
- ✓High efficiency up to 95.5% and no-load power dissipation<1.2W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.57 in
-
Height4.93 in
-
Weight1.34 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well XDR-240E-24 provide?
The XDR-240E-24 is rated for 240W output at 24V DC. Its rated output current is 10A, making it suitable for 24V industrial and control power applications within that load range.
What types of applications is the XDR-240E-24 commonly used for?
This model is a DIN rail power supply intended for industrial, ITE, and control-system environments where a regulated 24V DC supply is required. Its 40mm slim width makes it useful in panels where space is limited.
What temperature range can the XDR-240E-24 operate in?
The XDR-240E-24 is specified for operation from -40°C to +70°C. Output derating applies above +50°C, so buyers should account for reduced available power in hotter operating conditions.
How efficient is the XDR-240E-24?
The XDR-240E-24 has efficiency up to 95.5%. It also has no-load power dissipation below 1.2W, which helps reduce wasted energy when the supply is powered but lightly loaded.
What input voltage range does the XDR-240E-24 support?
This power supply supports an 85-264Vac input range. That wide AC input range makes it suitable for use across many regional power systems when the rest of the application requirements are met.
Is the XDR-240E-24 suitable for high-altitude environments?
Yes. The XDR-240E-24 is specified for operating altitude up to 5000 meters, which is useful for industrial sites or facilities located at higher elevations.
What protections are included with the XDR-240E-24?
The XDR-240E-24 includes protection for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
Why choose the XDR-240E-24 over a wider 24V DIN rail power supply?
The key differentiator of this model is its 40mm slim width while still providing 240W at 24V. For buyers comparing DIN rail supplies, that combination of power rating, slim format, and high efficiency can be useful when panel space is constrained.
