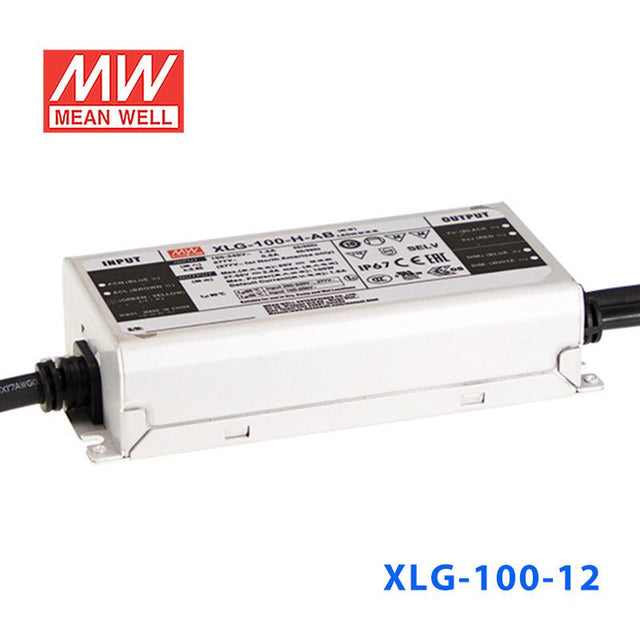

Mean Well XLG-100-12-AB Power Supply 100W 12V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-100-12-AB Power Supply 100W 12V - Adjustable and Dimm...
The XLG-100-12 is a 100W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1,GB19510.14; ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13)(for XLG-100I type only); IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating96 Watt
-
Output Voltage12 Volt
-
Rated Current8 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.51 in
-
Width2.48 in
-
Height1.26 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the XLG-100-12-AB power 12V LED strip in an outdoor retail or architectural lighting installation?
Yes. The XLG-100-12-AB is rated IP67 and accepts 100–305VAC, making it suitable for outdoor retail facades and architectural lighting fed from standard commercial circuits. Its 96W output at 12V supports continuous 12V LED strip runs in those environments.
Is the XLG-100-12-AB waterproof enough for wet outdoor locations?
Yes. The IP67 rating means the driver is protected against dust ingress and temporary water immersion, so it can be installed in outdoor enclosures subject to rain and condensation. The operating temperature range of -40°C to +90°C extends its suitability to cold and hot climates alike.
How long a 12V LED strip run can the XLG-100-12-AB support?
The XLG-100-12-AB provides 96W at 12V. At 9.6 W/m that covers 10 meters; at 14.4 W/m approximately 6.6 meters. Always verify your strip's rated power per meter and derate by at least 20% to avoid running the driver at its thermal limit continuously.
Can I use the XLG-100-12-AB for dimmable 12V LED strip in a hospitality or restaurant setting?
Yes. The AB suffix indicates this model includes a built-in dimming interface, allowing light level adjustment in hospitality environments where ambience control is needed. The 12V constant-current output is compatible with 12V dimmable LED strip products.
Is the XLG-100-12-AB suitable for 12V LED signage installed on building exteriors?
Yes. The IP67 enclosure and wide input range of 100–305VAC make this driver a practical choice for 12V LED signage on building exteriors. The compact 140 × 63 × 32 mm metal case fits inside typical sign raceways, and the 5-year warranty reflects its durability in continuous-duty sign applications.
What certifications does the XLG-100-12-AB hold, and which markets does it cover?
The XLG-100-12-AB holds CB, CCC, CE, EAC, ENEC, c_rcm, and UL certifications. These cover North America (UL), Europe (CE, ENEC), China (CCC), Australia and New Zealand (c_rcm), and the Eurasian Economic Union (EAC), making it suitable for multi-regional projects.
