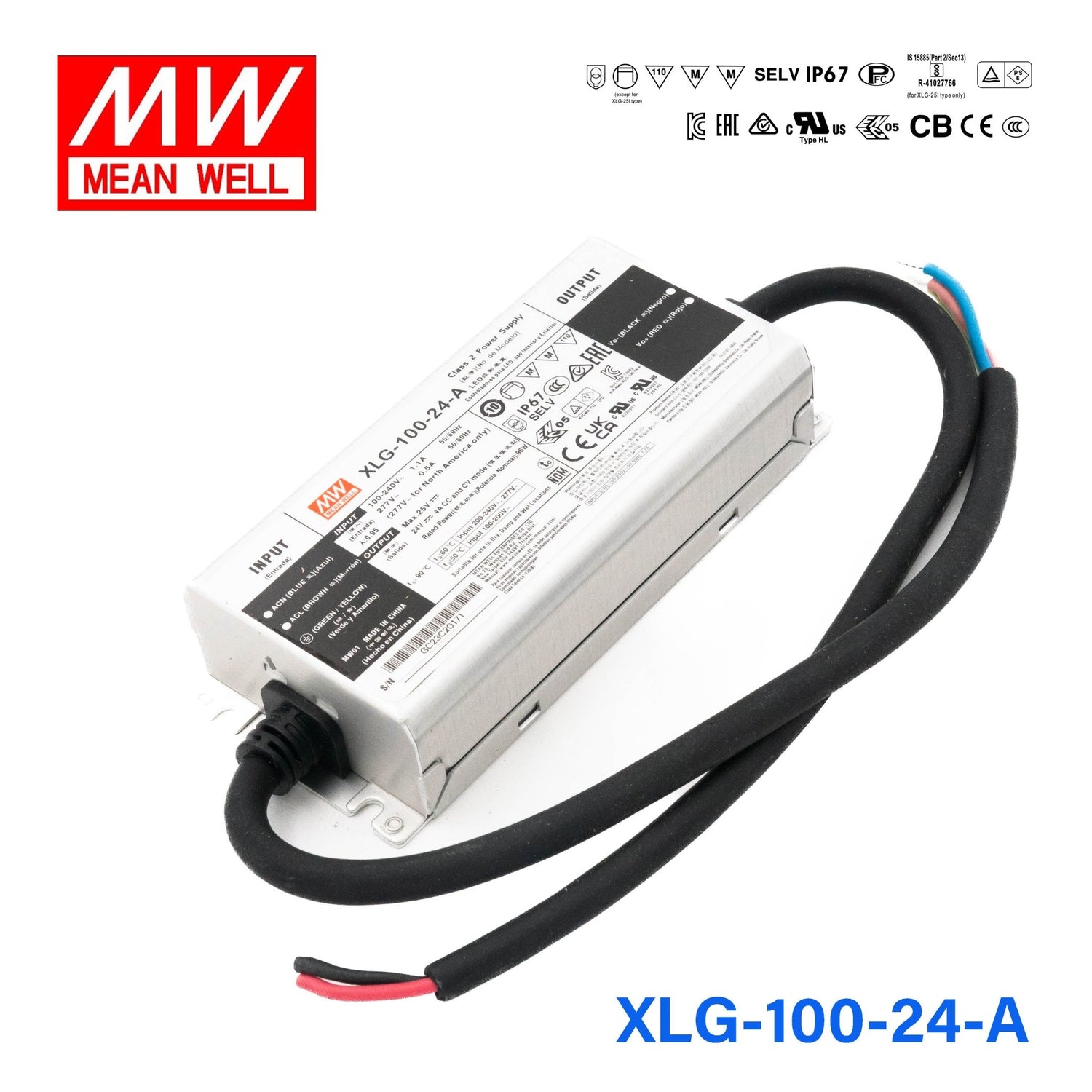

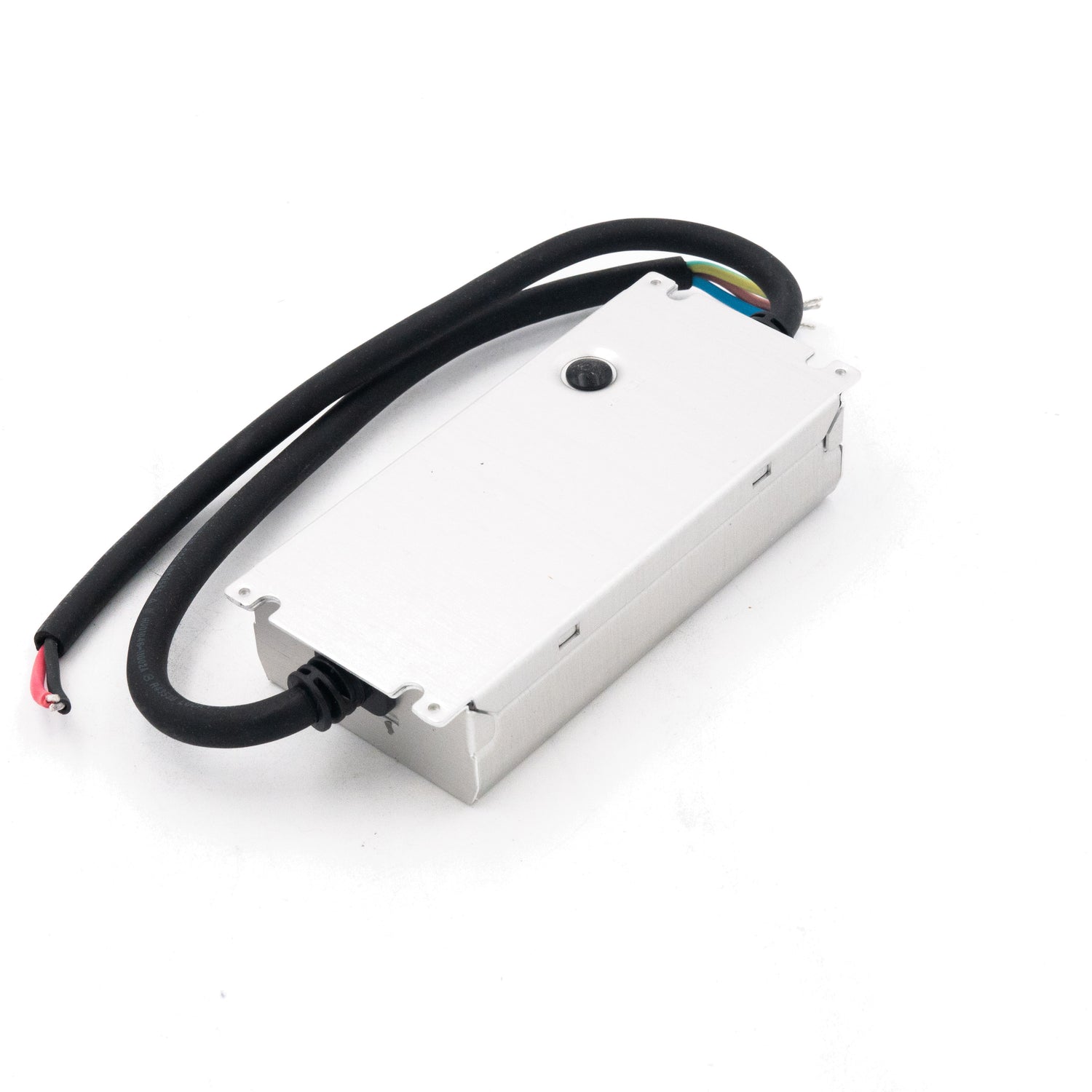

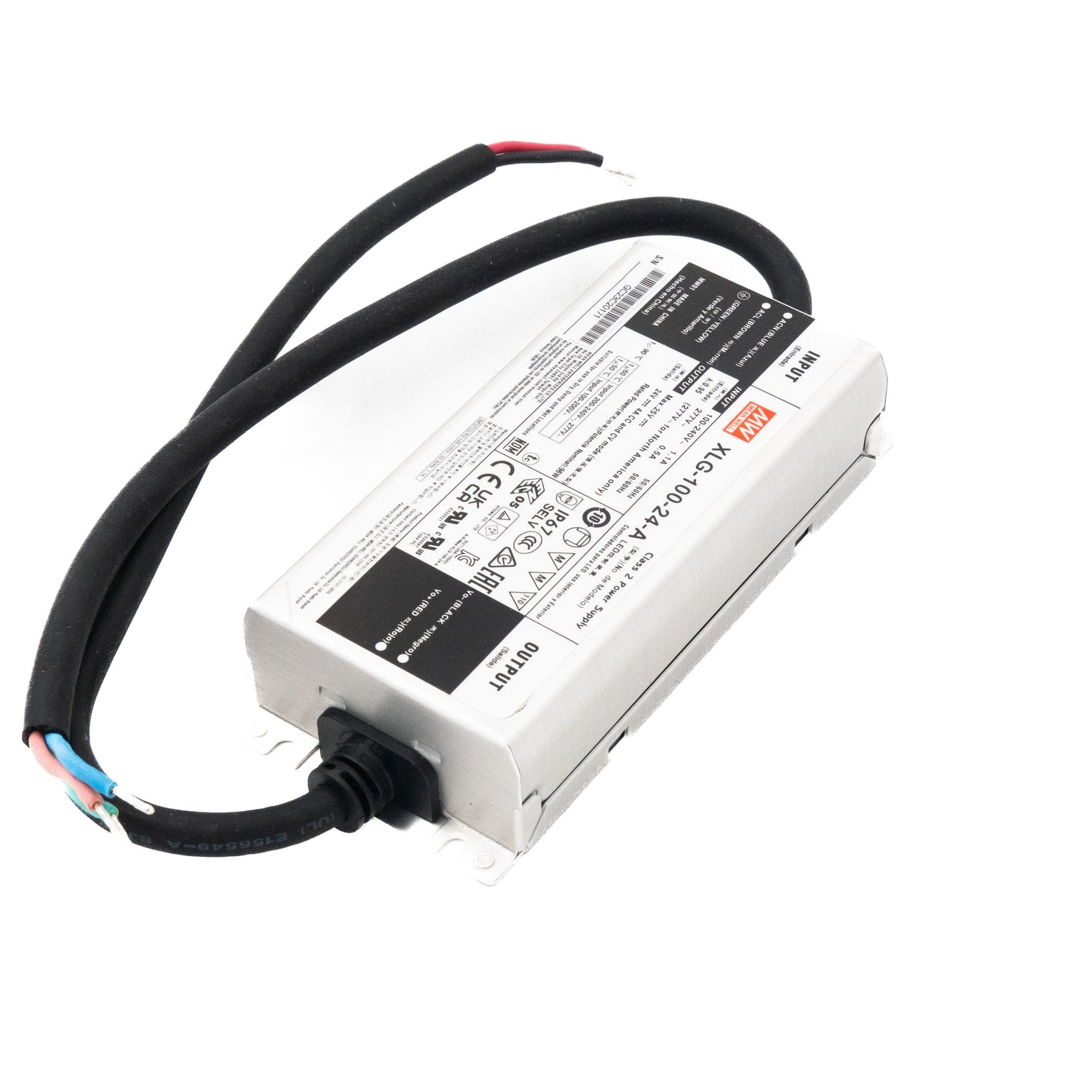

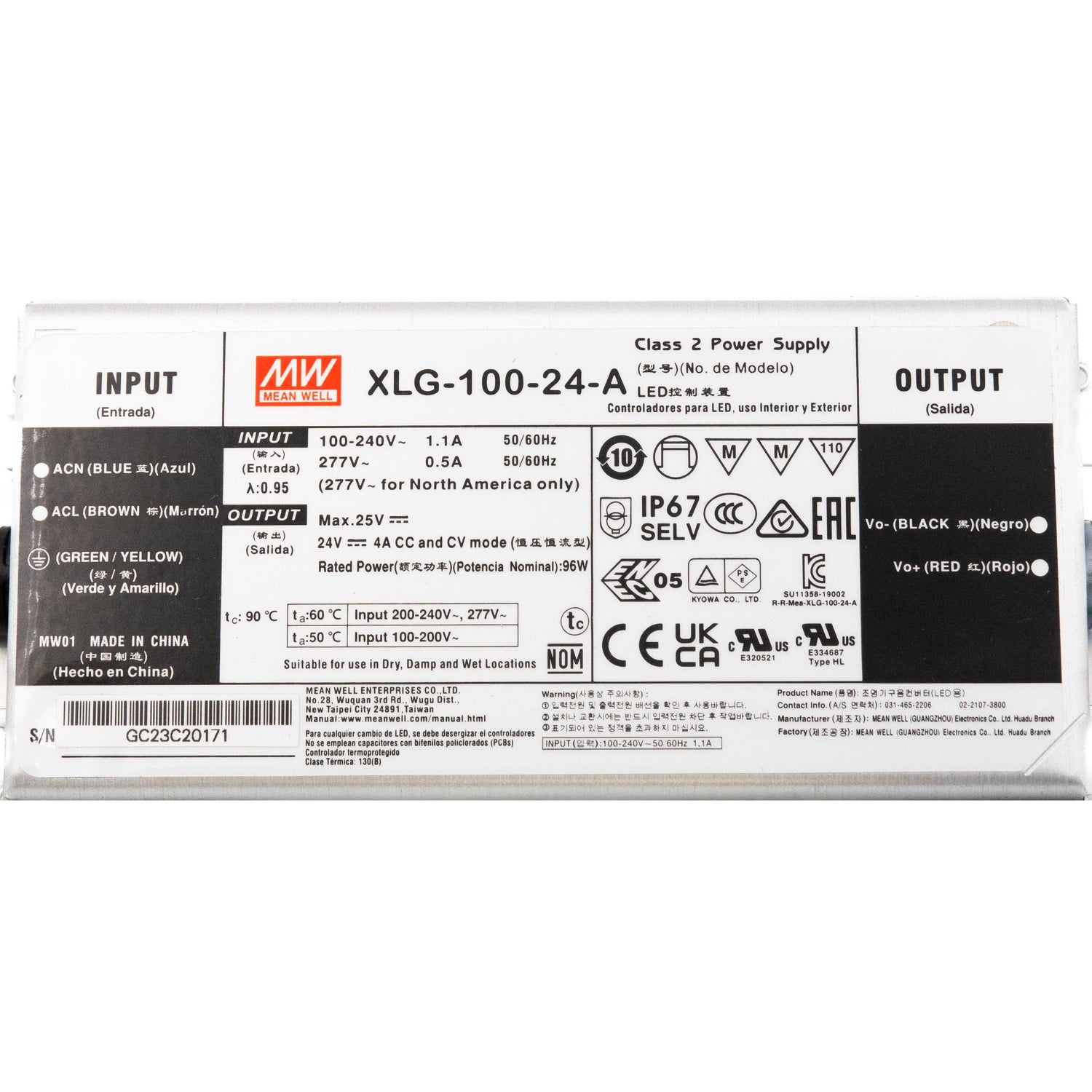

Mean Well XLG-100-24-A Power Supply 100W 24V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-100-24-A Power Supply 100W 24V - Adjustable
Description
Description
The XLG-100-24 is a 100W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1,GB19510.14; ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13)(for XLG-100I type only); IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.51 in
-
Width2.48 in
-
Height1.26 in
-
Weight1.28 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-100-24-A power 24V LED strip lighting in outdoor signage?
Yes. The XLG-100-24-A carries an IP67 waterproof rating, making it suitable for installation inside outdoor sign boxes and raceways exposed to rain and humidity. Its 96W at 24V output supports small to medium 24V LED strip sign installations.
Is the XLG-100-24-A suitable for use in wet or damp outdoor environments?
Yes. The IP67 rating provides full protection against dust and temporary water immersion. Combined with an operating temperature range of -40°C to +90°C, it handles the moisture and thermal cycling typical of outdoor LED lighting and signage installations.
How many meters of 24V LED strip can the XLG-100-24-A drive?
The XLG-100-24-A delivers 96W at 24V. Divide 96W by your strip's rated power per meter — a 10 W/m strip allows up to 9.6 meters, and a 20 W/m strip allows up to 4.8 meters. Check your strip's rated power per meter and maintain a 20% derating margin for safe continuous operation.
Can the XLG-100-24-A be used to drive 24V LED strips in a commercial display case or retail shelf lighting?
Yes. The constant-current 24V output and 96W rating suit under-shelf and display case LED strip applications in retail environments. The wide 100–305VAC input supports both North American and international mains voltages used in commercial retail installations.
Is the XLG-100-24-A a good choice for 24V LED landscape lighting in cold climates?
Yes. The -40°C lower operating temperature limit means this driver functions reliably in cold-climate outdoor installations. The sealed IP67 metal enclosure prevents moisture ingress during freeze-thaw cycles common in northern landscape lighting projects.
Can I use the XLG-100-24-A for 24V LED strip in an architectural facade or cove lighting project?
Yes. The XLG-100-24-A is well suited to 24V LED strip runs in architectural cove, soffit, or facade lighting. Its compact 140 × 63 × 32 mm housing fits inside standard lighting enclosures, and efficiency up to 90% keeps heat generation low in tight installations.
How does the XLG-100-24-A differ from the XLG-100-24-AB?
Both are rated 96W at 24V with 4A output, IP67 protection, and the same dimensions and certifications. The XLG-100-24-AB includes a built-in dimming interface (the B suffix), while the XLG-100-24-A is non-dimmable. Select the AB model if your project requires adjustable output.
