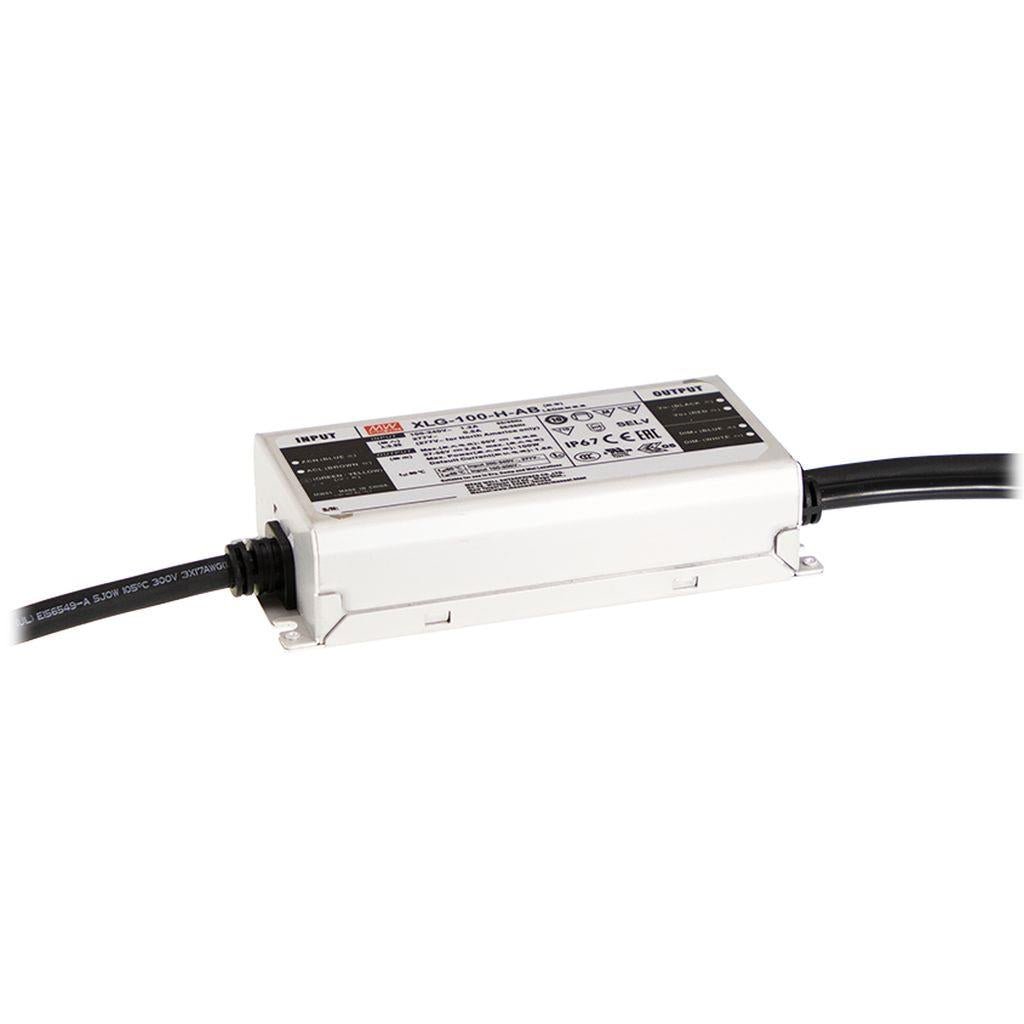

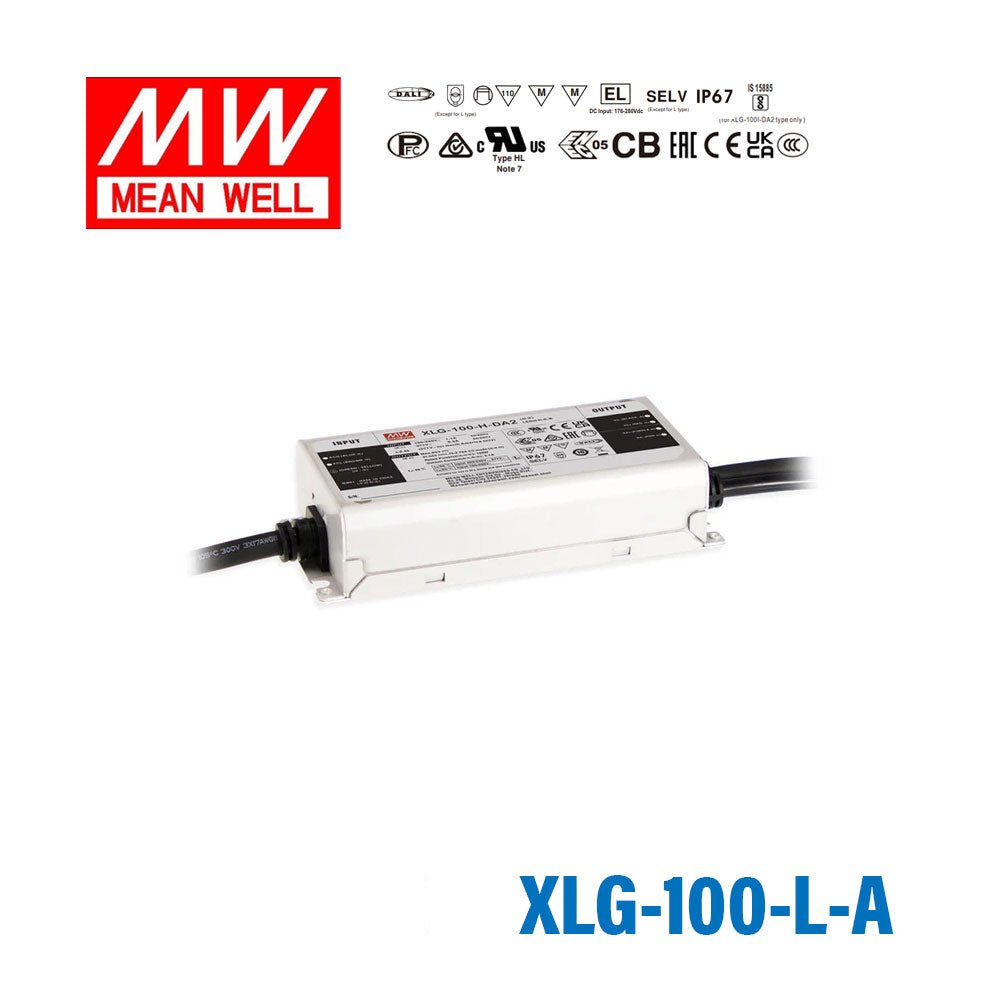

Mean Well XLG-100-L-A AC-DC Single output LED driver Constant Power Mode 100W 1.05A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-100-L-A AC-DC Single output LED driver Constant Power...
Overview
XLG-100-L-A is the model of this series: rated power 100W, typical efficiency 92.5%.
XLG-100 series is a 100W LED AC/DC driver featuring the constant power mode.XLG-100 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 8000mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-100 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305VAC( ClassⅠ)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- LVLE(H type),Class 2(24V)power unit
- Surge protection with 6KV/4KV (10KV/6KV optional)
- 3 in 1 dimming function (Dim to off and Isolation design)
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: OVP/SCP/OCP/OTP
- Comply with UL Class P
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- CONSTANT CURRENT REGIONNote.2
- 71 ~ 142V
- RATED CURRENT (Default)
- 700mA
- RATED POWER
- 100W
- FULL POWER CURRENT RANGE
- 700~1050mA
- OPEN CIRCUIT VOLTAGE (max.)
- 149V
- CURRENT ADJ. RANGE
- 350~1050mA
- CURRENT RIPPLE
- 3.0%(@rated current)
- CURRENT TOLERANCE
- ±5%
- SET UP TIME
- 500ms/230VAC, 1200ms/115VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" and "DRIVING METHODS OF LED MODULE" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
- TOTAL HARMONIC DISTORTION
- THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)
- 92.5%
- AC CURRENT (Typ.)
- 1.1A / 115VAC 0.5A / 230VAC 0.42A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- STANDBY POWER CONSUMPTION
- Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)
PROTECTION
- OVER POWER
- 105 ~ 150% Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 160 ~ 220V Shut down output voltage, re-power on to recover
- INPUT OVER VOLTAGE
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-100I series)
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.7
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29) ,KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)(for XLG-100I type only);NOM-058-SCFI-2017(except for Blank type); IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth(6K/10K option) Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 2782.6K hrs min. Telcordia SR-332 (Bellcore) ; 276.4Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 140*63*32mm (L*W*H)
- PACKING
- 0.58Kg;24pcs /15Kg /0.85CUFT
Test conditions and notes16
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE". (Except for CV-type)
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. Only CE/ENEC/CB is available for CV-type. XLG-100I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 12. Products sourced from the Americas regions may not have the PSE/CCC/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
- 16. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in classⅠ, Division 2
Downloads
FAQ
What is the power rating of the Mean Well XLG-100-L-A?
The Mean Well XLG-100-L-A is rated for 100 W output power. It is part of the XLG constant power mode LED driver range and is intended for AC-DC LED power supply applications.
What output voltage and current does the XLG-100-L-A provide?
This model operates in a constant current region of 71 ~ 142 V with a rated current of 700 mA. The maximum open circuit voltage is 149 V. Buyers should match these output specifications to the requirements of the LED load or system design.
Can the XLG-100-L-A be used outdoors?
Yes, the XLG-100-L-A has a metal case with an IP67 rating, making it suitable for outdoor applications. It is also specified for operation across a wide temperature range from -40 °C to 90 °C.
Does the XLG-100-L-A support dimming?
The XLG-100-L-A is a standard version without dimming functionality. If dimming is required, buyers should confirm whether a different XLG variant (such as the AB type) is better suited for that requirement.
What type of applications is the XLG-100-L-A designed for?
The XLG-100-L-A is an AC-DC single output LED driver for constant power LED applications. Its 100 W rating, wide 100-305 VAC input range, and IP67 metal case make it relevant for commercial and outdoor LED power supply use cases.
What warranty period is listed for the XLG-100-L-A?
The XLG-100-L-A is listed with a 5 year warranty period. This makes it suitable for buyers looking for a branded LED driver with a long stated warranty for project or maintenance planning.
How does the XLG-100-L-A differ from lower-power LED drivers?
This model is a 100 W LED driver, so it is intended for loads within that power class rather than small low-power LED assemblies. It also includes outdoor-oriented features such as an IP67 metal case and a wide input range of 100-305 VAC.
