Mean Well

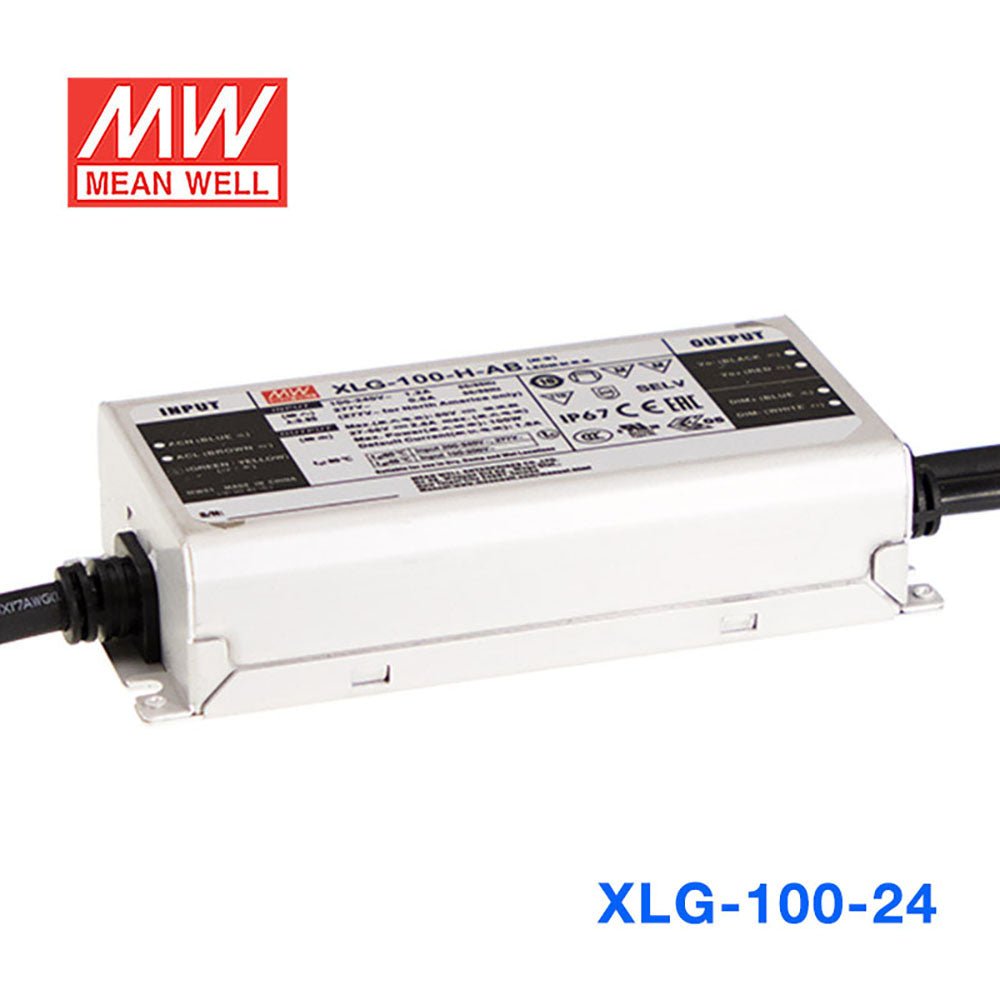

Mean Well XLG-100-24-AB Power Supply 100W 24V - Adjustable and Dimmable

Name: Mean Well XLG-100-24-AB Power Supply 100W 24V - Adjustable and Dimmable
Brand: Mean Well
SKU: XLG-100-24-AB
Price: 39.68 USD
Availability: InStock

Mean Well XLG-100-24-AB Power Supply 100W 24V - Adjustable and Dimmable

On Backorder

$39.68 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 50A at 230VAC
DC adjustment range	±10% rated output voltage
Over-voltage protection	112%~150% rated output voltage
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+90°C
Safety standards	UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	140x63x32
Packing	24pcs / 15kg
