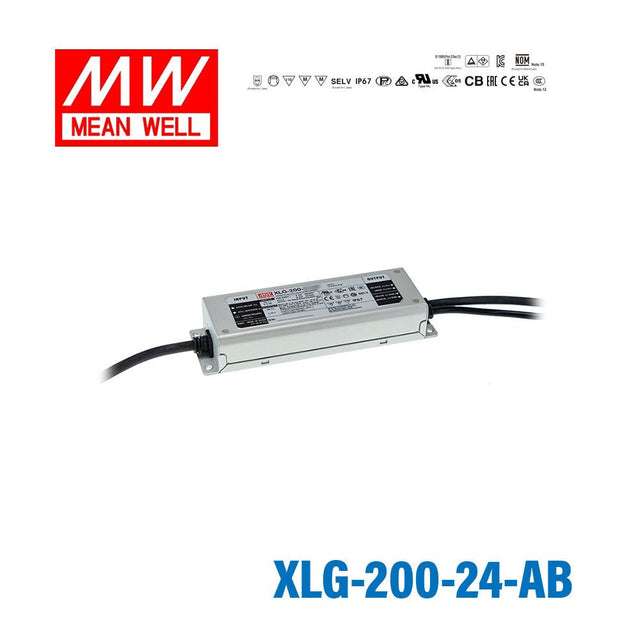

Mean Well XLG-200-24-AB Power Supply 200W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-200-24-AB Power Supply 200W 24V - Adjustable and Dimm...
Description
Description
The XLG-200-24 is a 200W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384;GB19510.1,GB19510.14; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29) ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13);IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating199.2 Watt
-
Output Voltage24 Volt
-
Rated Current8.3 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-200-24-AB be used outdoors in a wet or exposed environment?
Yes. The IP67 rating means the XLG-200-24-AB is sealed against dust and temporary water immersion up to 1 meter. It can be installed inside outdoor enclosures, sign cabinets, or weatherproof fixtures exposed to rain or condensation without additional sealing.
How many meters of 24V LED strip can the XLG-200-24-AB power?
The XLG-200-24-AB delivers 199.2W at 24V. For a 10 W/m strip that is approximately 19.9 meters (199.2 ÷ 10); for a 14.4 W/m strip, about 13.8 meters (199.2 ÷ 14.4). Always verify your strip's rated power per meter and include a 20% safety margin when planning your run length.
Is the XLG-200-24-AB suitable for dimmable 24V LED strip in hospitality or museum lighting?
Yes. The AB suffix confirms dimming capability, making this driver compatible with dimming controllers for atmosphere-sensitive environments like hotel lobbies, restaurants, and museum galleries that use 24V LED strip for adjustable accent and ambient lighting.
Can the XLG-200-24-AB drive 24V LED strips in large outdoor 24V signage and channel letter installations?
Yes. With 199.2W at 24V and IP67 protection, this driver supports large 24V illuminated signage runs including channel letters and backlit panels mounted on building exteriors. The -40°C to +90°C operating range covers climatic extremes encountered on outdoor facades.
Is the XLG-200-24-AB appropriate for 24V LED strip lighting in industrial washdown or food-processing facilities?
Yes. The IP67 enclosure is designed to withstand water jets and high humidity, making this driver suitable for washdown-environment luminaires in food processing, breweries, and similar industrial settings that require both moisture resistance and reliable LED power.
Does the XLG-200-24-AB work on international supply voltages without manual switching?
Yes. The 100–305VAC wide-range input automatically accepts 120V, 208V, 230V, and 277V supplies without any manual configuration. This makes the unit suitable for international deployments or multi-voltage commercial buildings.
Can I use the XLG-200-24-AB for 24V LED backlighting in large-format outdoor advertising displays?
Yes. The combination of 199.2W capacity, IP67 weatherproofing, and dimming capability makes this driver well matched to large outdoor advertising lightboxes that require both substantial LED strip power and the option to adjust brightness for day and night operation.
