Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

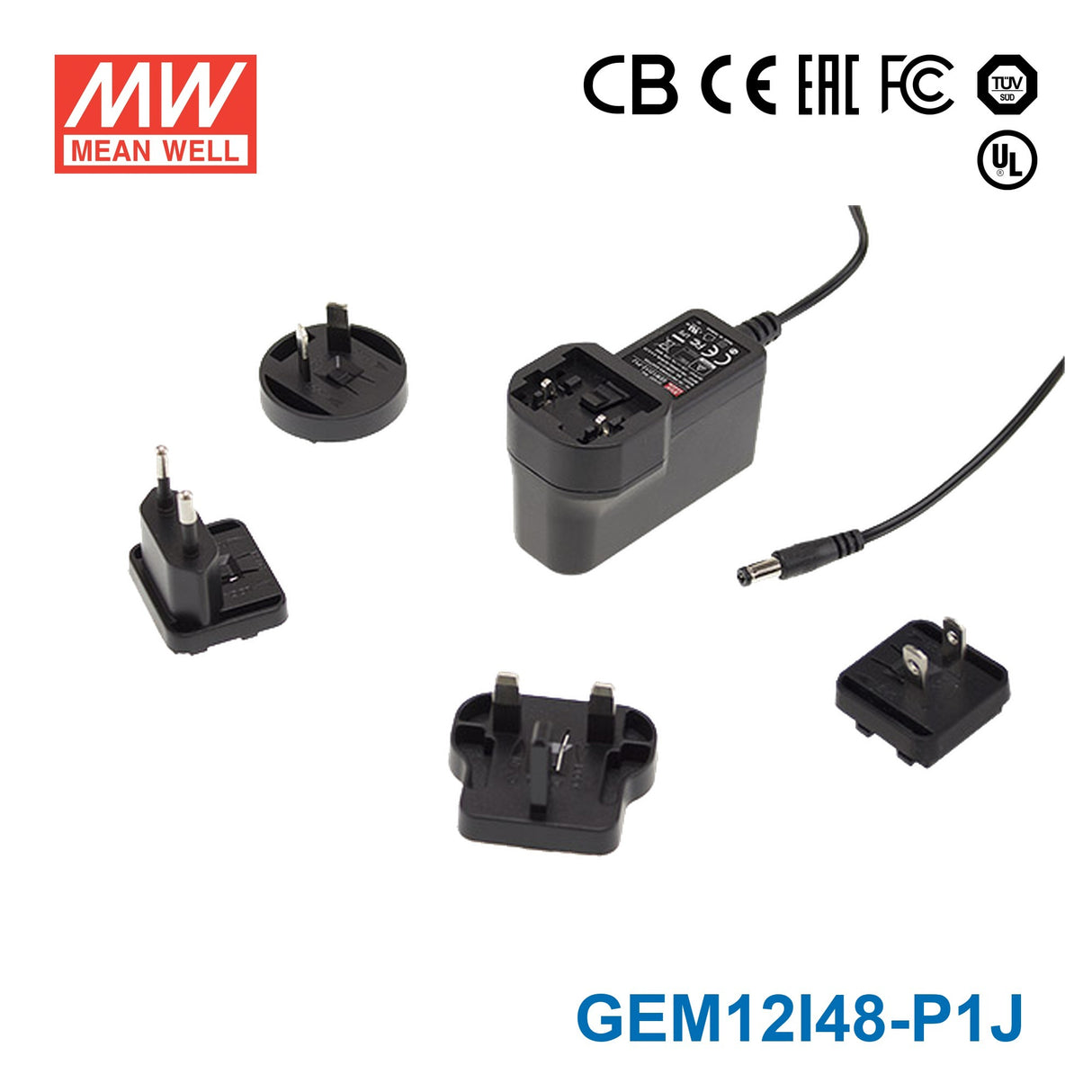

Mean Well GEM12I48-P1J Power Supply 12W 48V 250mA
The GEM12I48 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating12 Watt
-
Output Voltage48 Volt
-
Rated Current0.25 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.25 lb
::specification::
Frequently Asked Questions
Can I use the GEM12I48-P1J for a small 48V telecom or communications device?
It can suit compact 48V equipment that requires constant-voltage input and draws no more than 0.25A. The total rated output is 12W, so it is intended for lower-power 48V loads.
Is the GEM12I48-P1J suitable for embedded control hardware that runs on 48V DC?
Yes, if the hardware specifically calls for 48V constant-voltage power. This model delivers up to 0.25A at 48V, with 12W total output capacity.
Can this 48V adapter power a low-power industrial network accessory?
It is appropriate for low-power 48V accessories where a fixed constant-voltage source is required. Buyers should match the device to the 48V output and keep demand within 0.25A and 12W.
Is the GEM12I48-P1J suitable for outdoor use?
The provided data gives an operating temperature range of -20°C to +70°C, but it does not provide an IP rating. From these specs alone, temperature suitability is clear, while outdoor exposure suitability is not.
Is this the right type of supply for a 48V constant-voltage load?
Yes, this model is specified as constant voltage rather than constant current. Its rated output is 48V at 0.25A, with 12W maximum power for compatible loads.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GEM12 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM12I24-P1J Power Supply 12W 24V 500mA | 12W | 24V | 0.5A | Indoor | $15.82 | View |
| Mean Well GEM12I18-P1J Power Supply 12W 18V 660mA | 12W | 18V | 0.66A | Indoor | $17.68 | View |
| Mean Well GEM12I15-P1J Power Supply 12W 15V 800mA | 12W | 15V | 0.8A | Indoor | $15.37 | View |
| Mean Well GEM12I12-P1J Power Supply 12W 12V 1A | 12W | 12V | 1A | Indoor | $17.60 | View |
| Mean Well GEM12I09-P1J Power Supply 12W 9V 1.33A | 12W | 9V | 1.33A | Indoor | $17.68 | View |
| Mean Well GEM12I07-P1J Power Supply 12W 7.5V 1.6A | 12W | 7.5V | 1.6A | Indoor | $17.68 | View |
| Mean Well GEM12I05-P1J Power Supply 12W 5V 2.4A | 12W | 5V | 2.4A | Indoor | $17.60 | View |
