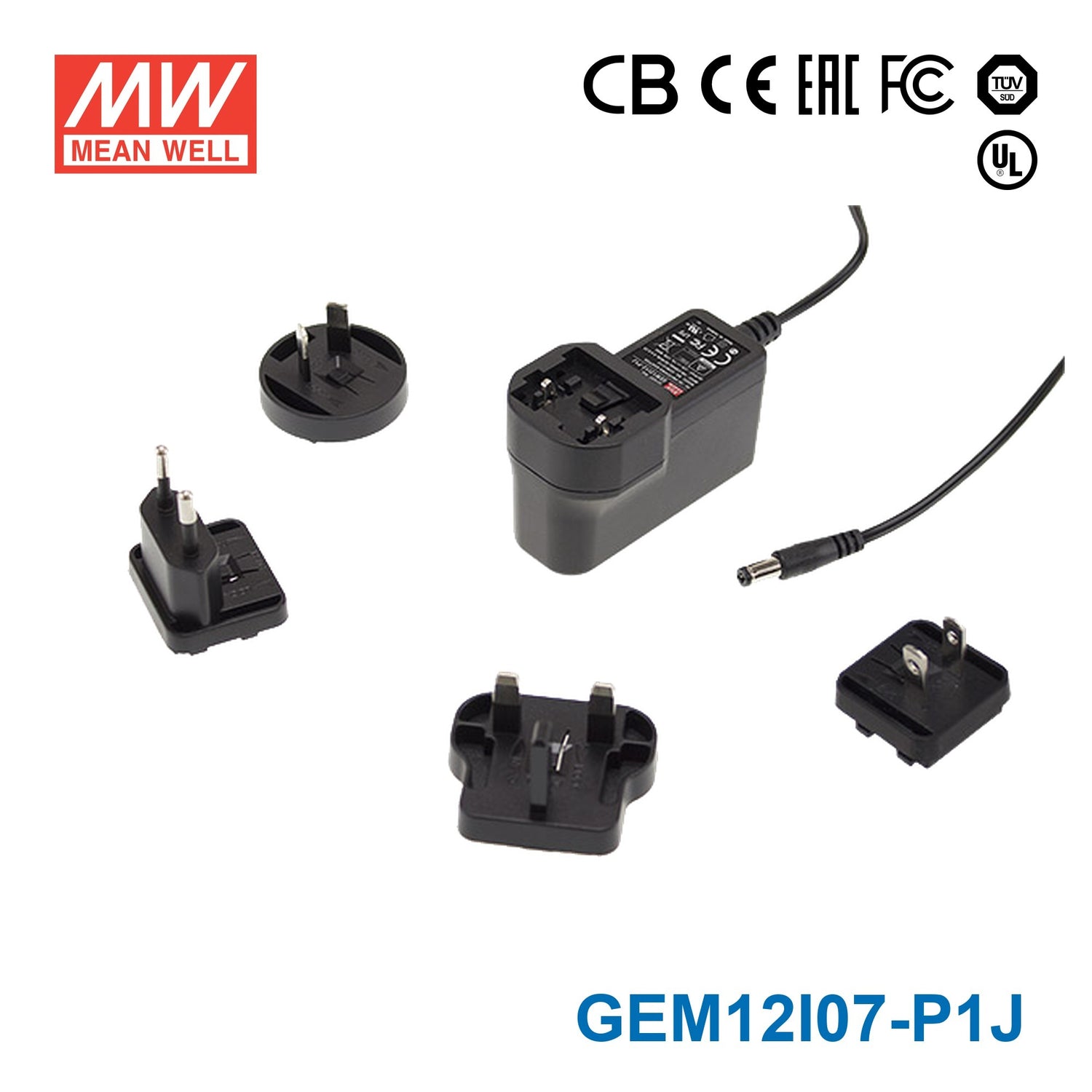

Mean Well GEM12I07-P1J Power Supply 12W 7.5V
Description
Description
The GEM12I07 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating12 Watt
-
Output Voltage7.5 Volt
-
Rated Current1.6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.25 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM12I07-P1J for a 7.5V industrial instrument or test device?
Yes, if the instrument requires constant 7.5V DC and draws no more than 1.6A. The 12W output makes it suitable for lighter 7.5V electronics rather than high-demand equipment.
Is this adapter appropriate for legacy 7.5V control electronics or monitoring modules?
It can be a good match for legacy or specialized modules that need a constant 7.5V supply. Compatibility depends on keeping the load within 1.6A and the total power within 12W.
Can this 7.5V power supply be used with embedded hardware that does not run on 5V or 12V?
Yes, this model is intended for constant-voltage 7.5V loads, which can be useful for embedded or industrial electronics built around that input level. The connected equipment still needs to stay within the 1.6A maximum output current.
How do I size a 7.5V load for the GEM12I07-P1J?
The device should require 7.5V constant voltage and stay at or below 1.6A. That corresponds to a maximum output of 12W, so anything above that exceeds this model's rating.
How does the GEM12I07-P1J compare with the other GEM12I07 variants?
The listed siblings are regional versions of the same GEM12I07 platform, including Euro, mixed, Australia, US, and UK plug variants. This model is specified at 12W, 7.5V, and 1.6A, and the comparison point in the provided data is the regional suffix rather than a different electrical rating.
Can this power supply be used where ambient temperatures vary a lot?
The specified operating temperature range is -20°C to +70°C, so it is built for a wide ambient window. No IP rating is provided, so the available specs do not establish outdoor or liquid-exposed suitability.
Other GEM12 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM12I48-P1J Power Supply 12W 48V | 12W | 48V | 0.25A | Indoor | $17.68 | View |
| Mean Well GEM12I24-P1J Power Supply 12W 24V | 12W | 24V | 0.5A | Indoor | $15.82 | View |
| Mean Well GEM12I18-P1J Power Supply 12W 18V | 12W | 18V | 0.66A | Indoor | $17.68 | View |
| Mean Well GEM12I15-P1J Power Supply 12W 15V | 12W | 15V | 0.8A | Indoor | $15.37 | View |
| Mean Well GEM12I12-P1J Power Supply 12W 12V | 12W | 12V | 1A | Indoor | $17.60 | View |
| Mean Well GEM12I09-P1J Power Supply 12W 9V | 12W | 9V | 1.33A | Indoor | $17.68 | View |
| Mean Well GEM12I05-P1J Power Supply 12W 5V | 12W | 5V | 2.4A | Indoor | $17.60 | View |
