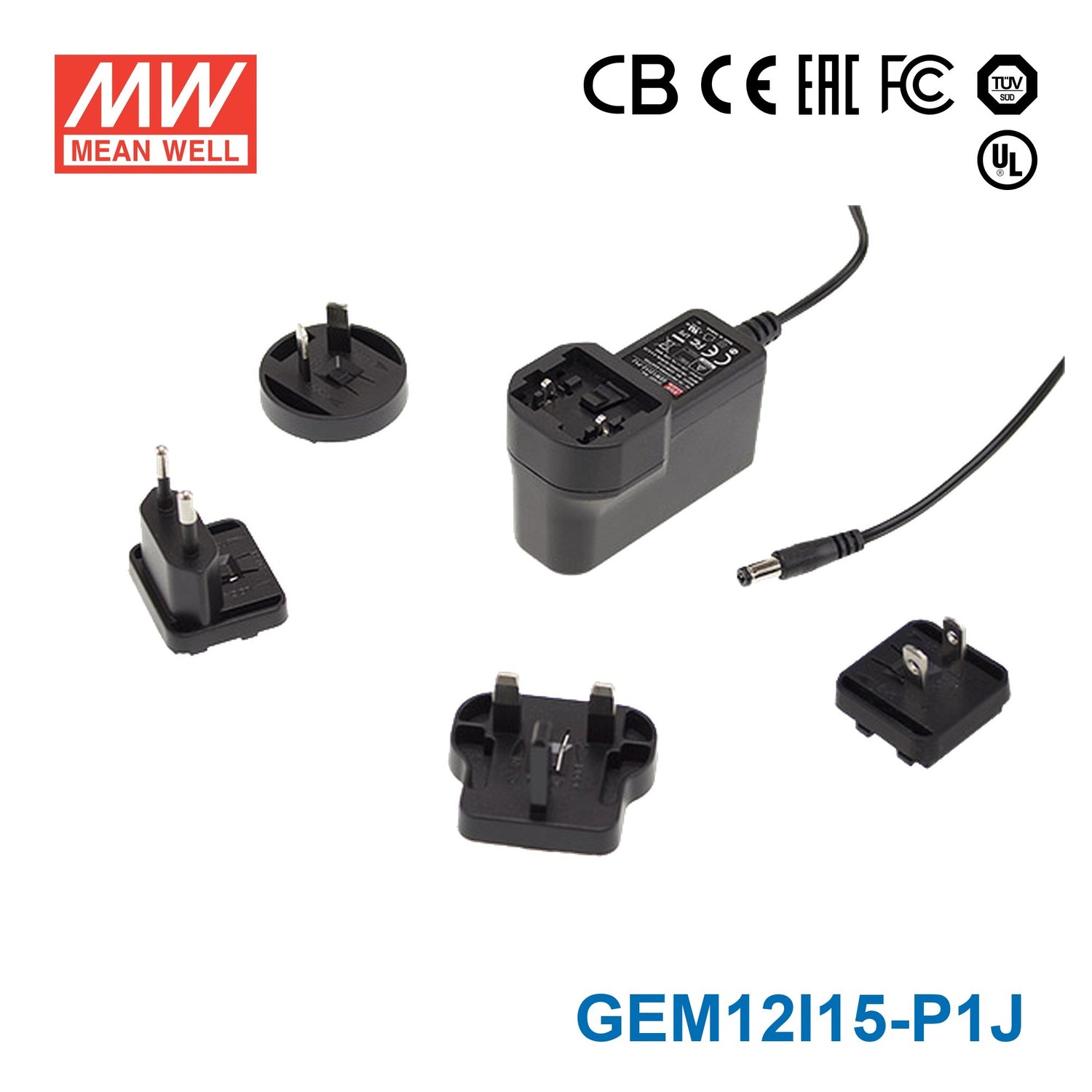

Mean Well GEM12I15-P1J Power Supply 12W 15V
Description
Description
The GEM12I15 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating12 Watt
-
Output Voltage15 Volt
-
Rated Current0.8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.25 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM12I15-P1J for a 15V industrial sensor or control accessory?
Yes, this model is a constant-voltage 15V supply rated for 0.8A and 12W. It fits low-power industrial or automation devices that specifically require regulated 15V DC and stay within that output limit.
Is the GEM12I15-P1J suitable for embedded electronics that need stable 15V power?
It is designed for constant-voltage output at 15V, which suits embedded equipment that calls for a fixed 15V input. The available output is 0.8A with 12W total power, so the load has to remain within those ratings.
Can this 15V power supply be used for small bench or lab instruments?
It can work for compact instruments that require 15V constant-voltage power and draw no more than 0.8A. The wide 80-264VAC input also makes it practical where AC input conditions may vary.
Can I use the GEM12I15-P1J outdoors or in exposed industrial areas?
The provided specs list an operating temperature range of -20°C to +70°C, but they do not list an IP rating. That means temperature capability is defined, while outdoor or exposed-location suitability cannot be confirmed from these specs alone.
Is this model a good fit for equipment shipped into different regions?
It supports 80-264VAC input and carries CB, CE, EAC, FCC, TÜV, and UL certifications. Those listed approvals and the wide AC input range make it easier to use in equipment intended for more than one market.
